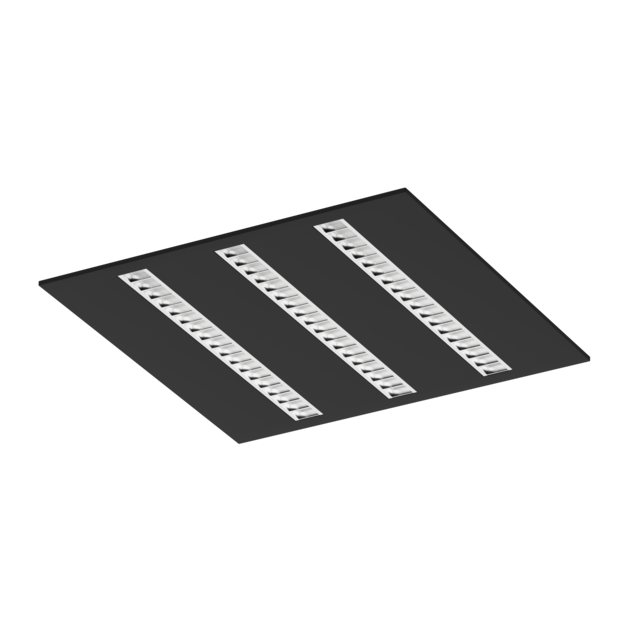

Modern louver luminaire for LED light sources of high technical and optical performance. The luminaire has a very low glare rate thanks to aluminum parabolic louvers as well as low power consumption comparing to traditional light sources. Parabolic LED thanks to the innovative optical system is ideal for lighting office spacer, in particular to work with computers. Attention: possibility of mounting "Active+" - self-learning energy saving system. Active+ is an out-of-the-box standalone solution consisting of an LED driver and small sensor built into the luminaire. Luminaires fitted with Active+ solution are ideal for refurbishment projects, as well as for new offices, corridors, open plan areas, etc.
The luminaire is ENEC certified.
Modern louver luminaire for LED light sources of high technical and optical performance. The luminaire has a very low glare rate thanks to aluminum parabolic louvers as well as low power consumption comparing to traditional light sources. Parabolic LED thanks to the innovative optical system is ideal for lighting office spacer, in particular to work with computers. Attention: possibility of mounting "Active+" - self-learning energy saving system. Active+ is an out-of-the-box standalone solution consisting of an LED driver and small sensor built into the luminaire. Luminaires fitted with Active+ solution are ideal for refurbishment projects, as well as for new offices, corridors, open plan areas, etc.
The luminaire is ENEC certified.
| Housing material | Steel sheet |
| Designed for light-line | yes |
| Louver/ diffuser | PAR |
| Diffuser colour | Transparent |
| Diffuser material | Prismatic plastic |
| Louver material | Aluminum |
| Reflector | high gloss |
| Light source | LED |
| Luminaire power | 40 W |
| Type of equipment | AC |
| Voltage rating | 220 ... 240 V |
| Through wiring | WI |
| Type of driver | DALI |
| Emergency module | EM1H ST |
| Motion sensor | No |
| Net weight | 5.5 kg |
| Colour | Black |
| Power and luminous flux tolerance | +/-10% |
| Luminaire luminous flux | 4880 lm |
| Luminaire's luminous efficacy | 122 lm/W |
| Color rendering index | 80 |
| Light distribution | DI |
| Lifetime L80B10 @25°C | 100000 h |
| Lifetime L90B10 @25°C | 64000 h |
| Colour temperature | 3000K |
| CRI & colour temperature | 830 |
| Degree of protection (IP) | IP20 |
| Class of protection | I |
| Light source protection | no |
| PZH | yes |
| CE | yes |
| ENEC | yes |
| HACCP+ | yes |
| L | W | H |
|---|---|---|
| 595 mm | 595 mm | 73 mm |
