Linear

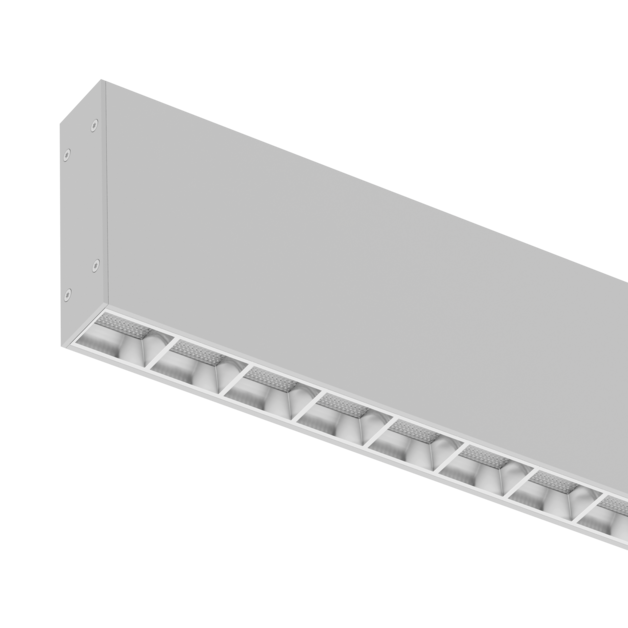

Alto LED DI-IN 2170 73W 4210/3820lm 830 mPARM Grey
New LED lighting system designed for inline installation. ALTO LED is an elegant and efficient luminaire for lighting offices, conference rooms, receptions and other working spaces.
Linear
Alto LED DI-IN 2170 73W 4210/3820lm 830 mPARM Grey
New LED lighting system designed for inline installation. ALTO LED is an elegant and efficient luminaire for lighting offices, conference rooms, receptions and other working spaces.
LED
ON/OFF
DI/IN
IP20
IK04
I
yes
yes
Basic information:
Index:
AA007.2244.830.A000
EAN:
5907769498756
Accessories:
Alto End cap, Electric suspension kit, Alto joining set, Suspension kit 1x
Installation:
suspended
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Linear
Application:
Office, Conference room, Corridor and staircase, Reception, Commercial premises, Lecture hall, Classroom, Computer lab
Mounting type:
Pendant
Technical data Download Accessories
Technical data
Alto LED DI-IN 2170 73W 4210/3820lm 830 mPARM Grey
PRODUCT CODE
AA007.2244.830.A000
Copy the code
PRODUCT EAN
5907769498756
Copy the EAN code
Mechanical data
Type of installation Suspended
Housing material Aluminum
Optical data
Louver/ diffuser mPARM
Diffuser colour Transparent
Diffuser material Prismatic plastic
Louver material Plastic
Reflector high gloss
UGR 15
Electrical data
Light source LED
Luminaire power 73 W
Number of light sources 1
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 4.5 kg
Colour Grey
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux DI 4210 lm
Luminaire luminous flux IN 3820 lm
Luminaire's luminous efficacy 110 lm/W
Luminaire's luminous efficiency 61
Light colour White
Color rendering index 80
Light distribution Medium-stream
Light distribution DI/IN
Class of luminaire III
MacAdam SDCM 3
Lifetime L80B10 @25°C 100000 h
Lifetime L90B10 @25°C 64000 h
Lamp Lumen Maintenance Factor (after 60 000h) 85 %
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) IP20
Impact resistance IK04
Class of protection I
Light source protection yes
CE yes
HACCP+ yes
Dimensions
L W H
2170 mm 28 mm 100 mm
L - Length
W - Width
H - Height / Depth
Download
Catalogue card
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
500.85 KB
Download
EC Declaration of conformity
Download
Photometric file
1.53 KB
Download
Pobierz wszystkie pliki
Structural elements
Accessories
Alto End cap
Electric elements
Accessories
Electric suspension kit
Connecting elements
Accessories
Alto joining set
Installation elements
Accessories
Suspension kit 1x
