Downlight
Bari Q LED
Modern and universal downlight luminaire of high lighting performance, based on LED module. Application: offices, hotels, restaurants, halls, shopping malls. For suspended Bari Q LED with central elecrical suspension 3x you need to use surface housing IP44. Tolerance of luminance power and luminous flux: +/-10%
Downlight
Bari Q LED
Modern and universal downlight luminaire of high lighting performance, based on LED module. Application: offices, hotels, restaurants, halls, shopping malls. For suspended Bari Q LED with central elecrical suspension 3x you need to use surface housing IP44. Tolerance of luminance power and luminous flux: +/-10%
Go to the variant list (12)
LED
ON/OFF
DI
IP20
IP44
IK06
II
yes
yes
yes
Basic information:
Materials:
Powder painted, white aluminium body, OPAL diffuser.
Accessories:
housing for surface mounting IP20, housing for surface mounting IP44, central electrical suspension 3x
Installation:
Into plaster cardboard and modular ceilings.
Power:
220 ... 240 V
Categorization:
Type of luminaire:
Downlight
Application:

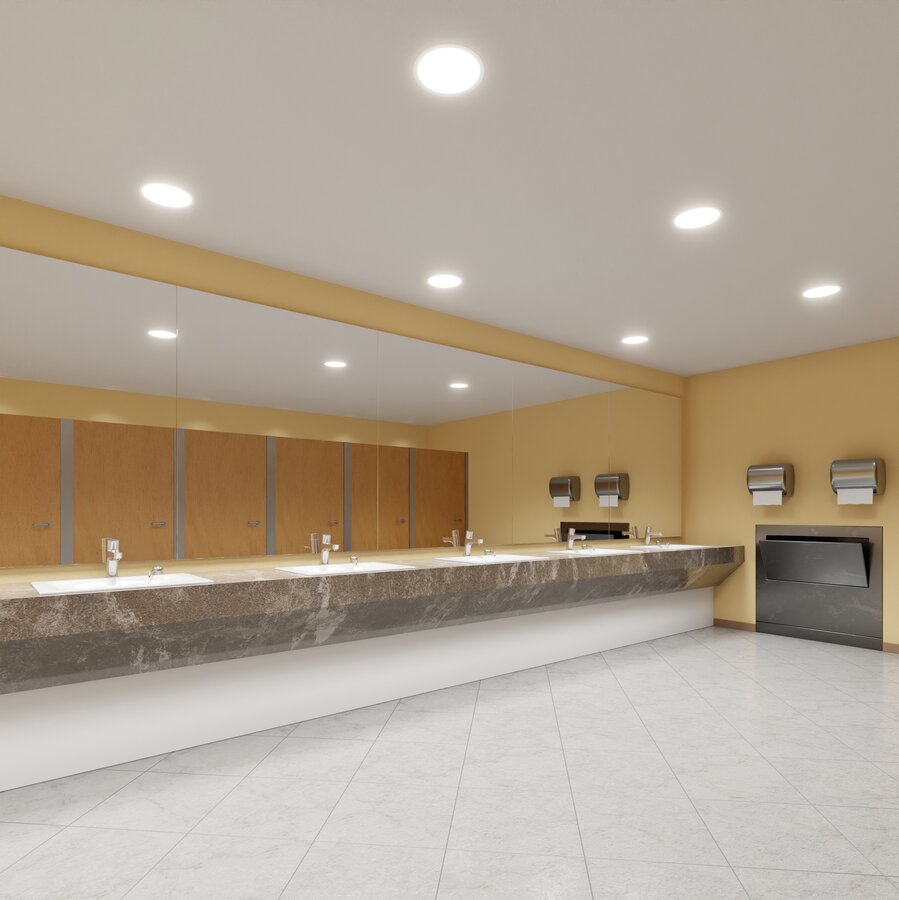

Social room, Corridor and staircase, Bathroom, Reception, Cloak room, Technical room, Security
Mounting type:
Pendant, Ceiling mounted, Plasterboard recessed
Technical data:
Luminaire power:
11 - 26 W
Luminaire luminous flux:
1480 - 3590 lm
Outer diameter:
155 mm, 225 mm
See other technical data
Technical data Product variants Download Accessories
Description of the product's family

Driver outside the luminaire (in set)

The height of the luminaire is only 4 cm. This makes it easy to install in suspended ceilings with a small space.

Possibility of suspended installation using central electrical suspension 3x and surface-mounted housing

Technical data
Mechanical data
Housing material Aluminum
Designed for light-line yes
Optical data
Louver/ diffuser OPAL
Diffuser colour White
Diffuser material Opal/mat plastic
UGR 24, 25, 26
Electrical data
Light source LED
Luminaire power 11 - 26 W
Number of light sources 1
Type of equipment AC
Voltage rating 220 ... 240 V
Light source included yes
Type of driver ON/OFF
Information data
Net weight 0.28 - 0.5 kg
Colour White
Power and luminous flux tolerance +/-10%
Info 155mm, 225mm
Light data
Luminaire luminous flux 1480 - 3590 lm
Luminaire's luminous efficacy 128 - 145 lm/W
Light colour White
Color rendering index 80
Light distribution DI
MacAdam SDCM 3
Colour temperature 3000K, 4000K
CRI & colour temperature 830, 840
Certificates
Degree of protection (IP) /top/ IP20
Degree of protection (IP) /bottom/ IP44
Impact resistance IK06
Class of protection II
Light source protection yes
PZH yes
CE yes
HACCP+ yes
Product variants
✕
Search
Filters
How does the product indexing system work?
AA
002
.
22
11
.
830
.
D
0
0
0
Family
AA ALTO LED
AB ALTO WALL
Type
001 e.g.: 545 mm
002 e.g.: 1085 mm
Colour
11 WHITE RAL 9016
12 WHITE RAL 9010
22 GREY RAL 9006
33 BLACK RAL 9005
44 ANTHRACITE RALBG 452
45 ANTHRACITE RAL 7016
99 OTHER - PERSONALIZATION
Optical system
00 EMPTY
11 OPAL /MILK DIFFUSER/
22 MPRM /MICROPRISMATIC DIFFUSER/
23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/
24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/
33 PAR /PARABOLIC LOUVER/
34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/
44 mPARM /PARABOLIC MINI LOUVER METALLIZED/
45 PARW /PARABOLIC LOUVER WHITE/
46 mPARB /PARABOLIC MINI LOUVER BLACK/
66 RF /REFLECTOR/
67 RM /MATTE REFLECTOR/
68 RW /REFLECTOR WHITE/
77 LNS /LENS/
88 SH MAT /MATTE TEMPERED GLASS/
89 SH /TEMPERED GLASS/
CRI / Colour temp.
827
830 CRI ≥ 80; CCT 3000K
835 CRI ≥ 80; CCT 3500K
840 CRI ≥ 80; CCT 4000K
850 CRI ≥ 80; CCT 5000K
857 CRI ≥ 80; CCT 5700K
865 CRI ≥ 80; CCT 6500K
8TW CRI ≥ 80; Tunable white
927 CRI ≥ 90; CCT 2700K
930 CRI ≥ 90; CCT 3000K
935 CRI ≥ 90; CCT 3500K
940 CRI ≥ 90; CCT 4000K
950 CRI ≥ 90; CCT 5000K
957 CRI ≥ 90; CCT 5700K
965 CRI ≥ 90; CCT 6500K
9TW CRI ≥ 90; Tunable white
RGB RGB
Driver
A ON/OFF /WITHOUT REGULATION/
D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/
H HO /DRIVER WITH PREDEFINED SETTING/
E HE /DRIVER WITH PREDEFINED SETTING/
F HO DALI /DRIVER WITH PREDEFINED SETTING/
G HE DALI /DRIVER WITH PREDEFINED SETTING/
K DSI
I CF /CORRIDOR FUNCTION - STEP DIMMING/
C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/
X DMX
S sDIMM
V 1-10V /ADJUSTABLE/
Emergency module
0 WITHOUT EMERGENCY MODULE
1 EM1H ST /SELFTEST/
2 EM3H ST /SELFTEST/
3 EM1H BASIC
4 EM3H BASIC
5 EM1H PRO /DALI/
6 EM3H PRO /DALI/
Through wiring
0 WITHOUT THROUGH WIRING
1 TH3 /3-PHASE THROUGH WIRING/
2 TH5 /5-PHASE THROUGH WIRING/
3 TH7 /7-PHASE THROUGH WIRING/
4 WI /WIELAND/
5 WI TH /THROUGH WIRING/
Motion sensor
0 WITHOUT MOTION SENSOR
1 MW PRO /PASSIVE INFRARED - STEP DIMM/
2 PIR /INFRARED/
Technical data
Dimensions
Filtering by parameters
Parameters
Luminaire power
Show products
Luminous flux
Show products
CRI / Colour temp.
Select all
Reset
Show products
Wiring
Select all
Reset
Show products
Diameter
Show products
Type of family
Select all
Reset
Show products
Index
Luminaire power
Luminaire luminous flux
Luminaire's luminous efficacy
Louver/ diffuser
[Optical system]
CRI & colour temperature
Colour
Type of driver
Emergency module
Through wiring
Type of family
EU001.1111.830.A000
Copy the code
Open in new window
11 W 1480 lm 135 lm/W OPAL 830
White
 ON/OFF No No LED 155 11W
EU001.1111.840.A000
Copy the code
Open in new window
11 W 1510 lm 137 lm/W OPAL 840
White
 ON/OFF No No LED 155 11W
EU002.1111.830.A000
Copy the code
Open in new window
16 W 2040 lm 128 lm/W OPAL 830
White
 ON/OFF No No LED 155 16W
EU002.1111.840.A000
Copy the code
Open in new window
16 W 2090 lm 131 lm/W OPAL 840
White
 ON/OFF No No LED 155 16W
EU003.1111.830.A000
Copy the code
Open in new window
17 W 2410 lm 142 lm/W OPAL 830
White
 ON/OFF No No LED 225 17W
EU003.1111.840.A000
Copy the code
Open in new window
17 W 2460 lm 145 lm/W OPAL 840
White
 ON/OFF No No LED 225 17W
EU003.1111.840.A040
Copy the code
Open in new window
17 W 2460 lm 145 lm/W OPAL 840
White
 ON/OFF No WI LED 225 17W
EU004.1111.830.A000
Copy the code
Open in new window
22 W 2950 lm 134 lm/W OPAL 830
White
 ON/OFF No No LED 225 22W
EU004.1111.840.A000
Copy the code
Open in new window
22 W 3020 lm 137 lm/W OPAL 840
White
 ON/OFF No No LED 225 22W
EU005.1111.830.A000
Copy the code
Open in new window
26 W 3510 lm 135 lm/W OPAL 830
White
 ON/OFF No No LED 225 26W
EU005.1111.840.A000
Copy the code
Open in new window
26 W 3590 lm 138 lm/W OPAL 840
White
 ON/OFF No No LED 225 26W
EU005.1111.840.A040
Copy the code
Open in new window
26 W 3590 lm 138 lm/W OPAL 840
White
 ON/OFF No WI LED 225 26W
Displaying items: 12 of 12
of 1
15
15
50
100

per page

Projects
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
419.06 KB
Download
EC Declaration of conformity
Download
Photometric file
6.22 KB
Download
Download all files
Accessories
Structural elements
Accessories
BARI Q LED Frame for surface mounting IP44
Accessories
Bari Q 155 Mask Panel
Electric elements
Accessories
Bari Q LED Suspension set central 3x
Installation elements
Accessories
Bari Q reduction
Accessories
Bari reduction
