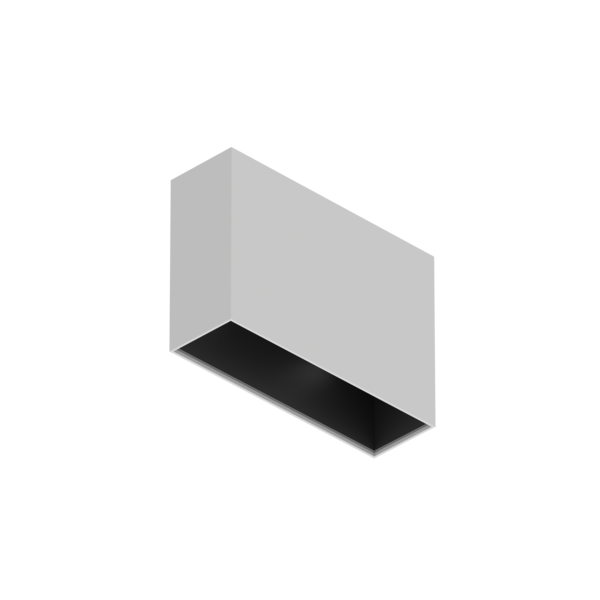

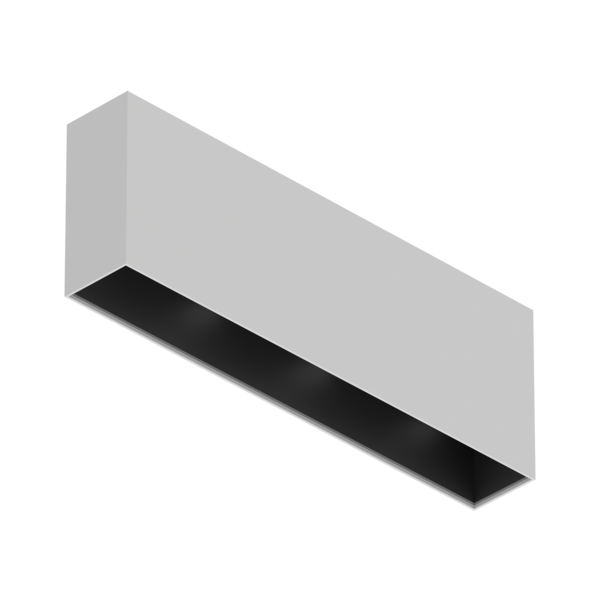

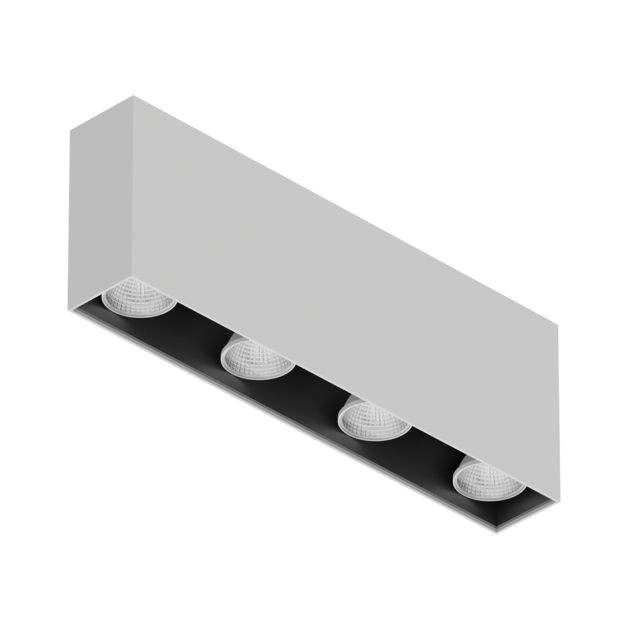

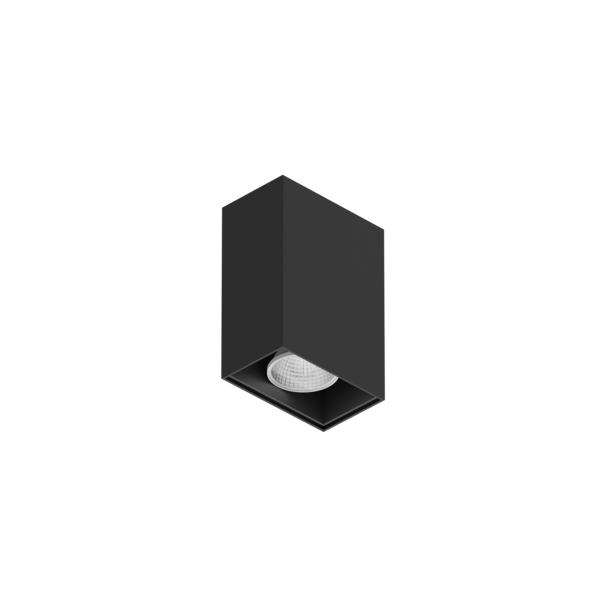

Downlight
Eazy NT

Interior luminaire for GU10 LEDs. Aesthetic decorative lighting. Possibility of painting in any RAL colour. Recommended use of LED bulbs adapted to 230V power supply and max 10W. Light sources not included.

Downlight
Eazy NT

Interior luminaire for GU10 LEDs. Aesthetic decorative lighting. Possibility of painting in any RAL colour. Recommended use of LED bulbs adapted to 230V power supply and max 10W. Light sources not included.

Go to the variant list (12)
IP20
I
yes
yes
Basic information:
Materials:
electrostatically painted aluminium housing (standard color: grey, white, black), black internal reflector made of aluminium
Accessories:
only for NT versions: suspensions (simple, electric)
Installation:
surface mounted - NT versions suspended - NT versions with accessories
Power:
220 ... 240 V
Categorization:
Type of luminaire:
Downlight
Application:

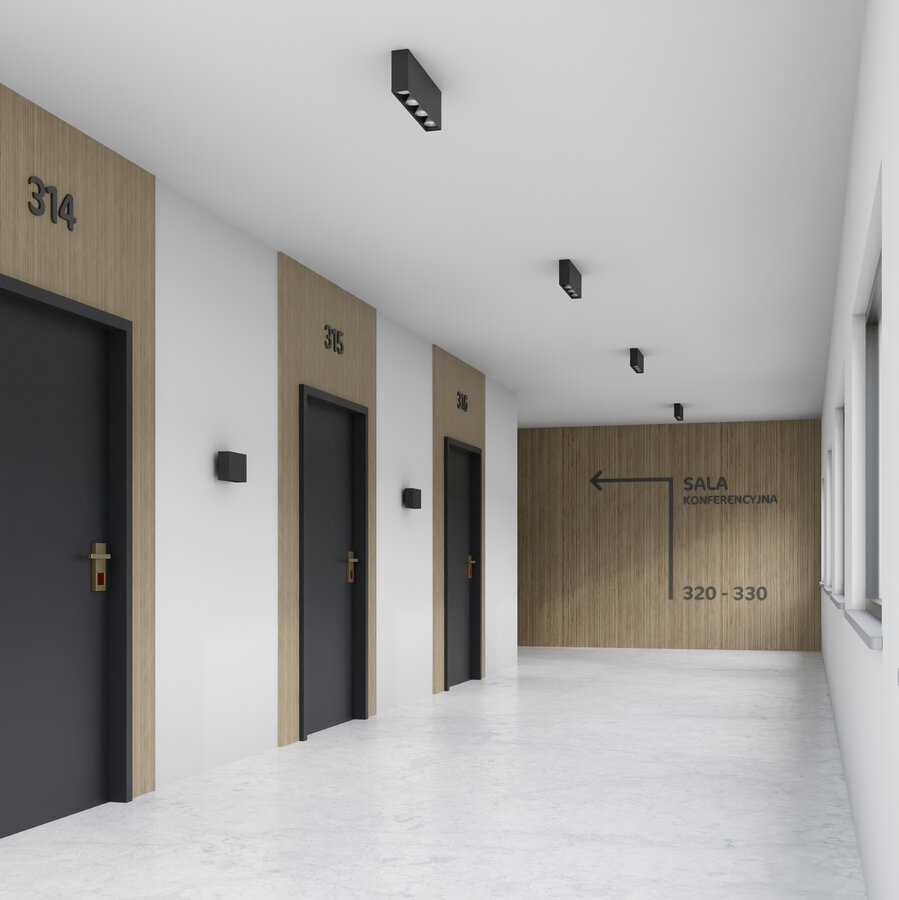

Corridor and staircase, Reception, Commercial premises, Conference room, Office
Mounting type:
Pendant, Ceiling mounted
Technical data:
Length:
100 mm, 200 mm, 300 mm, 400 mm
See other technical data
Technical data Product variants Download Accessories
Description of the product's family

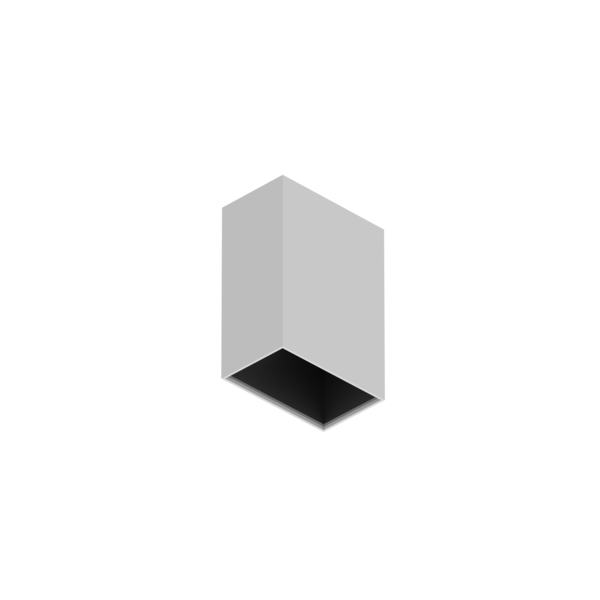

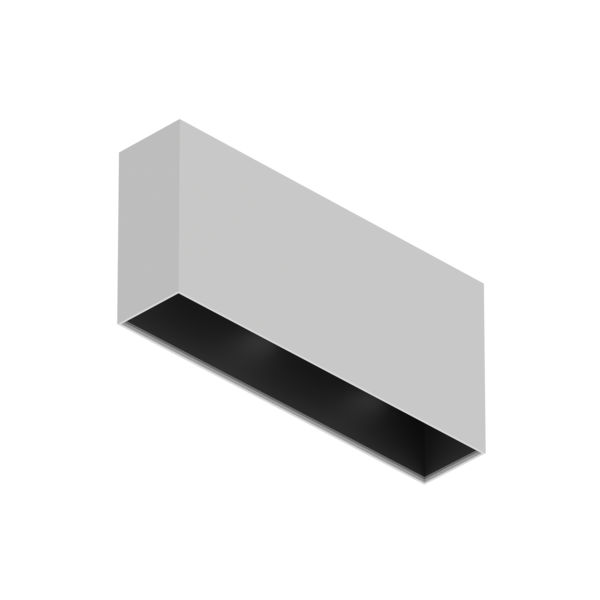

Light sources not included!

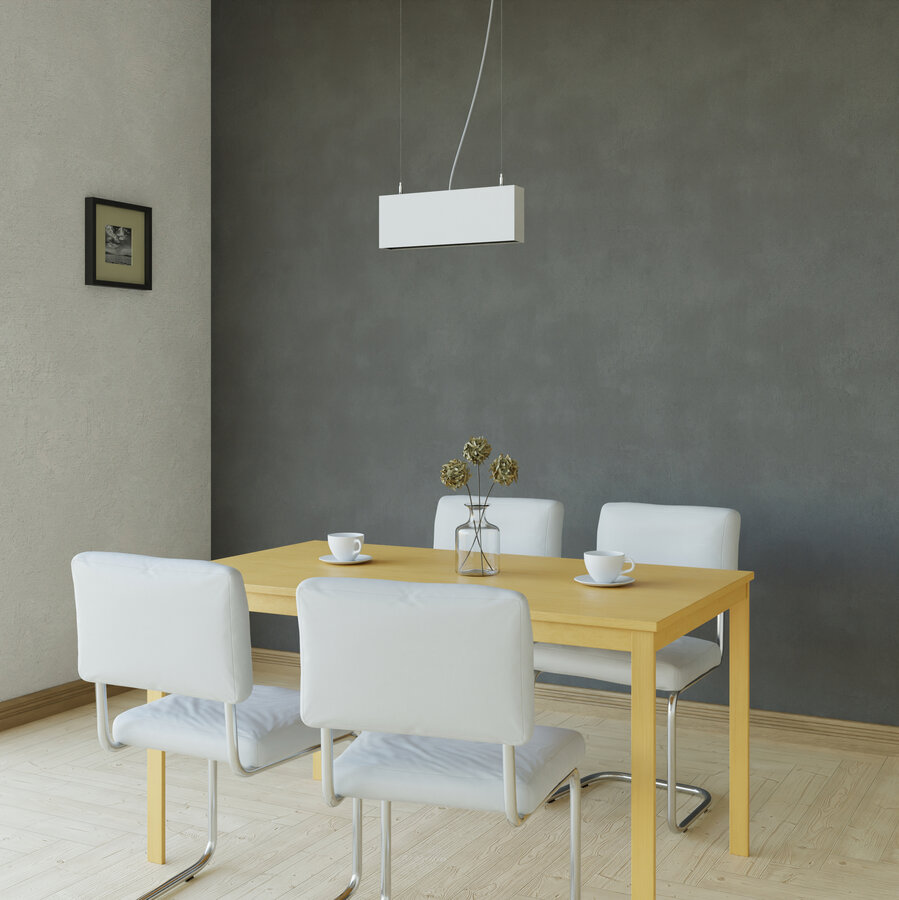

Possibility of hanging the luminaire using suspensions available as accessories
Technical data
Mechanical data
Type of installation Ceiling mounted
Housing material Aluminum
Optical data
Louver/ diffuser RB
Reflector black
Electrical data
Light source GU10
Lamp holder GU10
Voltage rating 220 ... 240 V
Through wiring No
Light source included no
Emergency module option
Motion sensor option
Information data
Net weight 0.8 kg
Colour Black, Grey, White

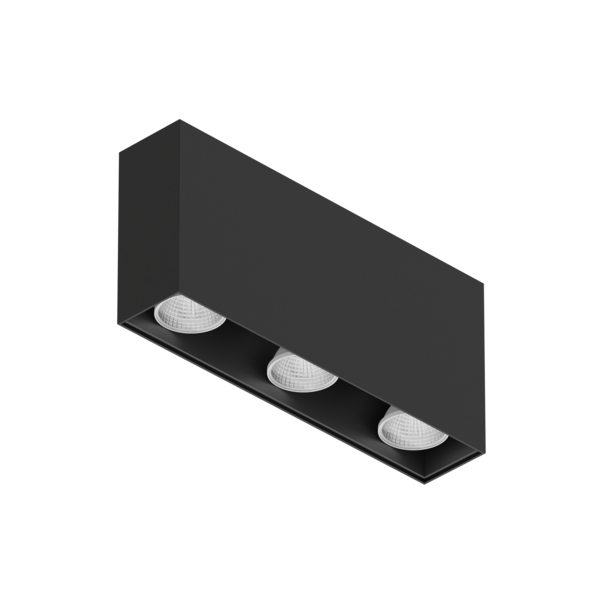

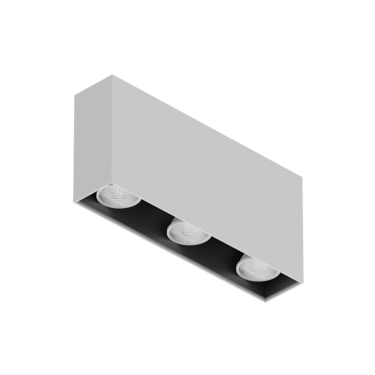

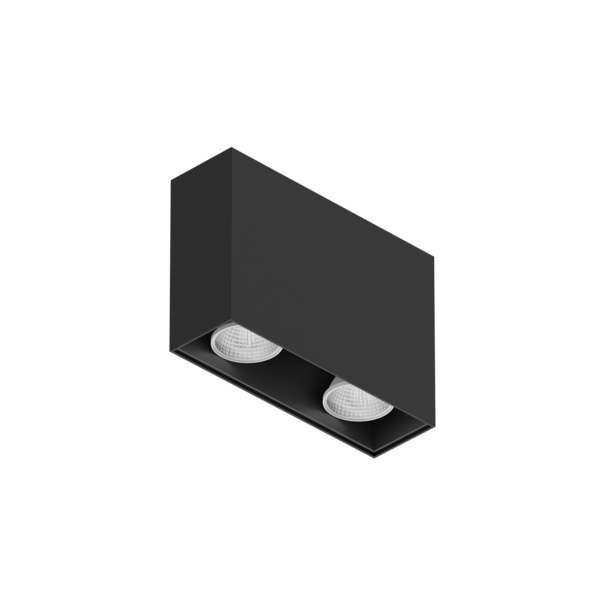

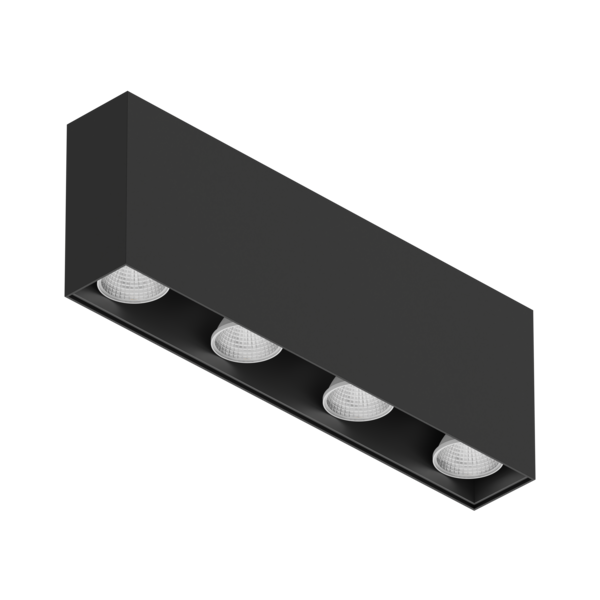

Other 1x NT, 2x NT, 3x NT, 4x NT
Info max. 10W LED
Certificates
Degree of protection (IP) IP20
Class of protection I
CE yes
HACCP+ yes
Product variants
✕
Search
Filtry
How does the product indexing system work?
AA
002
.
22
11
.
830
.
D
0
0
0
Family
AA ALTO LED
AB ALTO WALL
Type
001 e.g.: 545 mm
002 e.g.: 1085 mm
Colour
11 WHITE RAL 9016
12 WHITE RAL 9010
22 GREY RAL 9006
33 BLACK RAL 9005
44 ANTHRACITE RALBG 452
45 ANTHRACITE RAL 7016
99 OTHER - PERSONALIZATION
Optical system
00 EMPTY
11 OPAL /MILK DIFFUSER/
22 MPRM /MICROPRISMATIC DIFFUSER/
23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/
24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/
33 PAR /PARABOLIC LOUVER/
34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/
44 mPARM /PARABOLIC MINI LOUVER METALLIZED/
45 PARW /PARABOLIC LOUVER WHITE/
46 mPARB /PARABOLIC MINI LOUVER BLACK/
66 RF /REFLECTOR/
67 RM /MATTE REFLECTOR/
68 RW /REFLECTOR WHITE/
77 LNS /LENS/
88 SH MAT /MATTE TEMPERED GLASS/
89 SH /TEMPERED GLASS/
CRI / Colour temp.
827
830 CRI ≥ 80; CCT 3000K
835 CRI ≥ 80; CCT 3500K
840 CRI ≥ 80; CCT 4000K
850 CRI ≥ 80; CCT 5000K
857 CRI ≥ 80; CCT 5700K
865 CRI ≥ 80; CCT 6500K
8TW CRI ≥ 80; Tunable white
927 CRI ≥ 90; CCT 2700K
930 CRI ≥ 90; CCT 3000K
935 CRI ≥ 90; CCT 3500K
940 CRI ≥ 90; CCT 4000K
950 CRI ≥ 90; CCT 5000K
957 CRI ≥ 90; CCT 5700K
965 CRI ≥ 90; CCT 6500K
9TW CRI ≥ 90; Tunable white
RGB RGB
Driver
A ON/OFF /WITHOUT REGULATION/
D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/
H HO /DRIVER WITH PREDEFINED SETTING/
E HE /DRIVER WITH PREDEFINED SETTING/
F HO DALI /DRIVER WITH PREDEFINED SETTING/
G HE DALI /DRIVER WITH PREDEFINED SETTING/
K DSI
I CF /CORRIDOR FUNCTION - STEP DIMMING/
C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/
X DMX
S sDIMM
V 1-10V /ADJUSTABLE/
Emergency module
0 WITHOUT EMERGENCY MODULE
1 EM1H ST /SELFTEST/
2 EM3H ST /SELFTEST/
3 EM1H BASIC
4 EM3H BASIC
5 EM1H PRO /DALI/
6 EM3H PRO /DALI/
Through wiring
0 WITHOUT THROUGH WIRING
1 TH3 /3-PHASE THROUGH WIRING/
2 TH5 /5-PHASE THROUGH WIRING/
3 TH7 /7-PHASE THROUGH WIRING/
4 WI /WIELAND/
5 WI TH /THROUGH WIRING/
Motion sensor
0 WITHOUT MOTION SENSOR
1 MW PRO /PASSIVE INFRARED - STEP DIMM/
2 PIR /INFRARED/
Technical data
Dimensions
Filtrowanie po parametrach
Parametry
Colour
Select all
Reset
Show products
Length
Show products
Number of light sources
Select all
Reset
Show products
Type of family
Select all
Reset
Show products
Index
Oprawka
Number of light sources
Colour
Type of family
EZ001.1169.000.0000
Copy the code
Open in new window
GU10 1
White
 1x GU10
EZ001.2269.000.0000
Copy the code
Open in new window
GU10 1
Grey
 1x GU10
EZ001.3369.000.0000
Copy the code
Open in new window
GU10 1
Black
 1x GU10
EZ002.1169.000.0000
Copy the code
Open in new window
GU10 2
White
 2x GU10
EZ002.2269.000.0000
Copy the code
Open in new window
GU10 2
Grey
 2x GU10
EZ002.3369.000.0000
Copy the code
Open in new window
GU10 2
Black
 2x GU10
EZ003.1169.000.0000
Copy the code
Open in new window
GU10 3
White
 3x GU10
EZ003.2269.000.0000
Copy the code
Open in new window
GU10 3
Grey
 3x GU10
EZ003.3369.000.0000
Copy the code
Open in new window
GU10 3
Black
 3x GU10
EZ004.1169.000.0000
Copy the code
Open in new window
GU10 4
White
 4x GU10
EZ004.2269.000.0000
Copy the code
Open in new window
GU10 4
Grey
 4x GU10
EZ004.3369.000.0000
Copy the code
Open in new window
GU10 4
Black
 4x GU10
Displaying items: 12 of 12
of 1
15
15
50
100

per page

Projects
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
476.95 KB
Download
EC Declaration of conformity
Download
Pobierz wszystkie pliki
Electric elements
Accessories
Electric suspension kit
Installation elements
Accessories
Suspension kit 1x
