Universal plafond for LED light sources.
Universal plafond for LED light sources.
| Type of installation | Universal |
| Housing material | Aluminum |
| Louver/ diffuser | OPAL |
| Diffuser colour | White |
| Diffuser material | Opal/mat plastic |
| UGR | 18 |
| Light source | LED |
| Luminaire power | 57 W |
| Number of light sources | 1 |
| Type of equipment | AC |
| Voltage rating | 220 ... 240 V |
| Through wiring | No |
| Light source included | yes |
| Type of driver | ON/OFF |
| Emergency module | No |
| Motion sensor | No |
| Net weight | 8.4 kg |
| Colour | Grey |
| RAL - any color from the palette | yes |
| Power and luminous flux tolerance | +/-10% |
| Info | 800 mm |
| Luminaire luminous flux | 6180 lm |
| Luminaire's luminous efficacy | 108 lm/W |
| Light colour | White |
| Color rendering index | 80 |

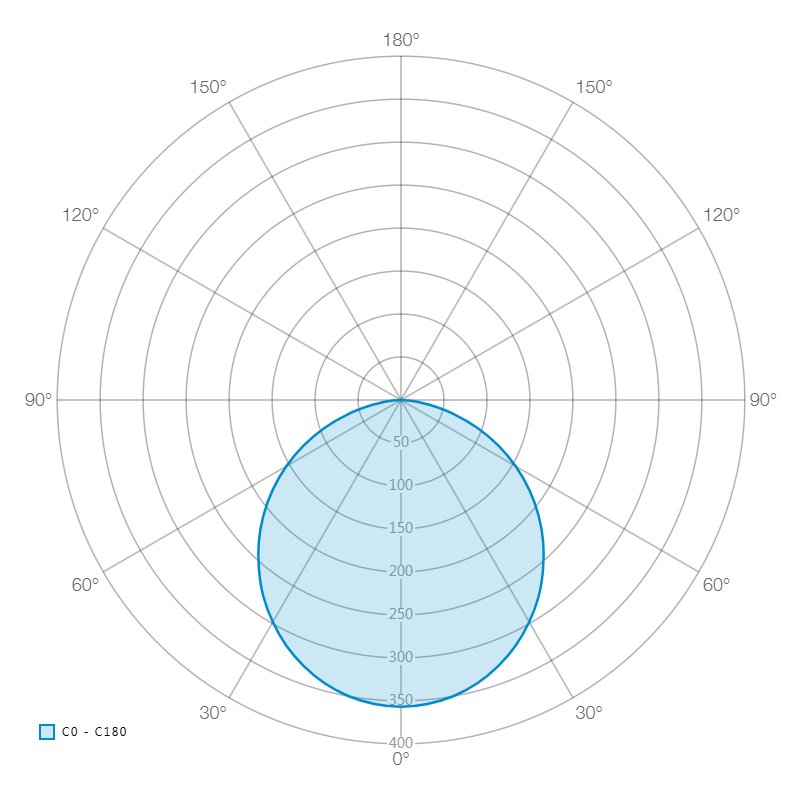

| Light distribution | Wide beam |
| Light distribution | DI |
| Class of luminaire | I |
| MacAdam | SDCM 3 |
| Lifetime L80B10 @25°C | 100.000 h |
| Lifetime L90B10 @25°C | 64.000 h |
| Lamp Lumen Maintenance Factor (after 60 000h) | 85 % |
| Colour temperature | 3000K |
| CRI & colour temperature | 830 |
| Degree of protection (IP) | IP20 |
| Impact resistance | IK04 |
| Class of protection | I |
| Power Flicker | =< 3% |
| Light source protection | yes |
| PZH | yes |
| CE | yes |
| HACCP+ | yes |
| H | F | K |
|---|---|---|
| 110 mm | 800 mm | 13 mm |
