Forza New LED

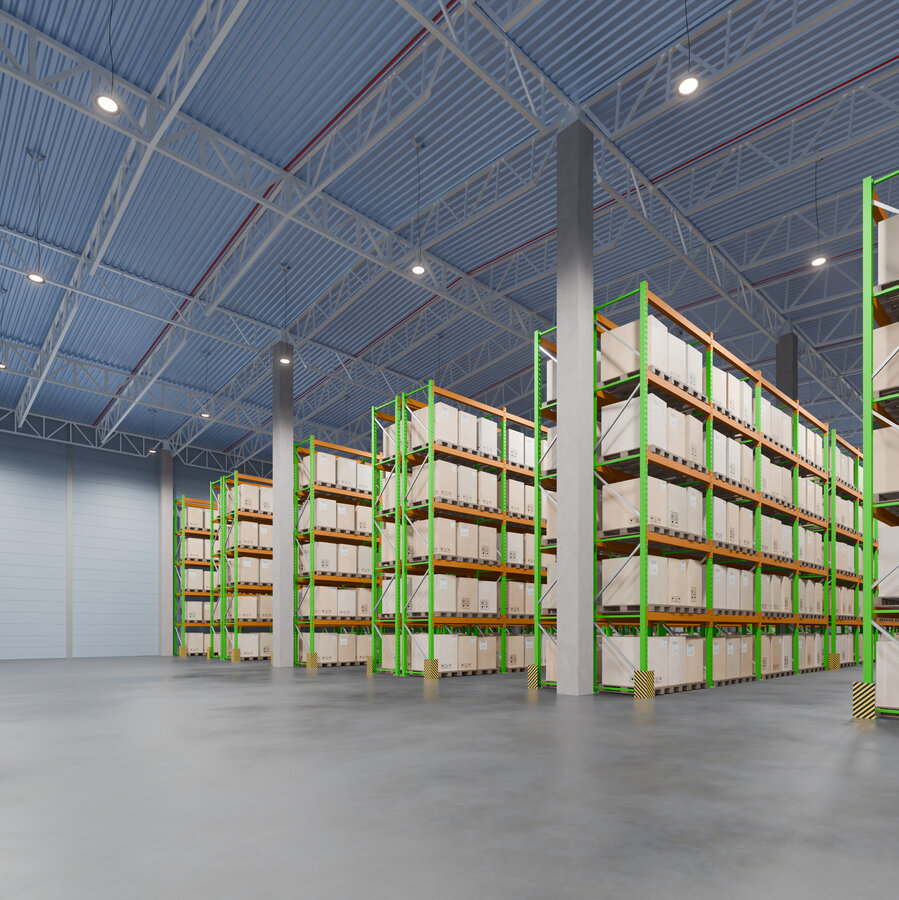

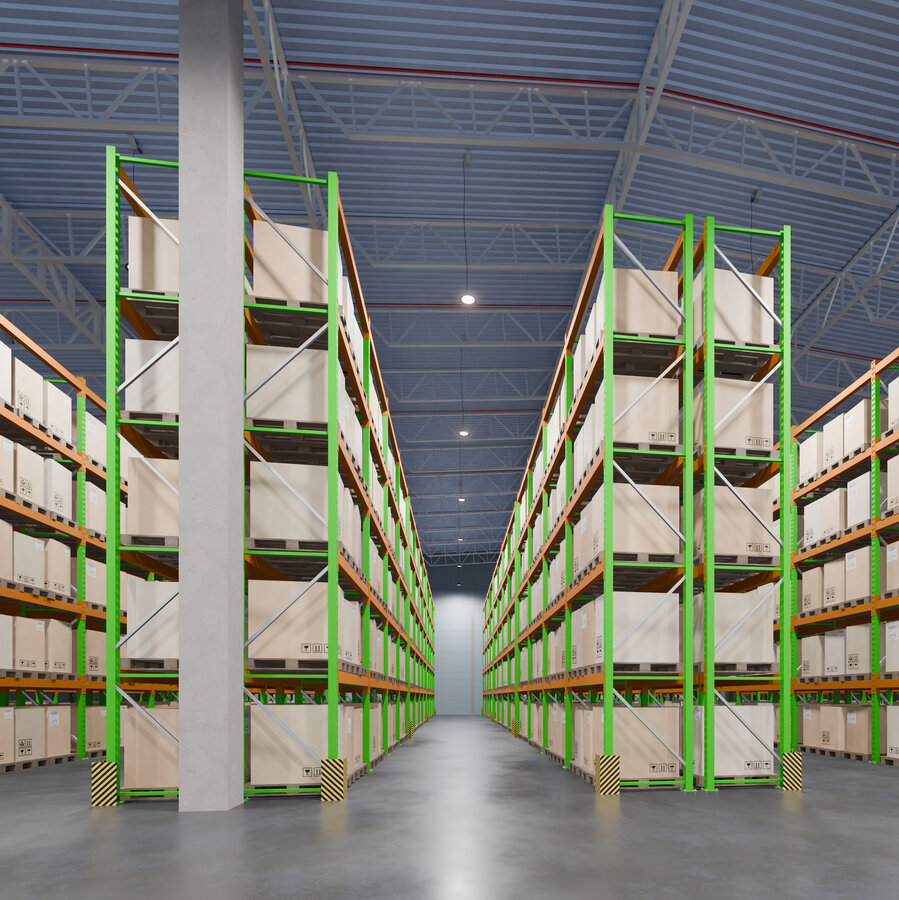

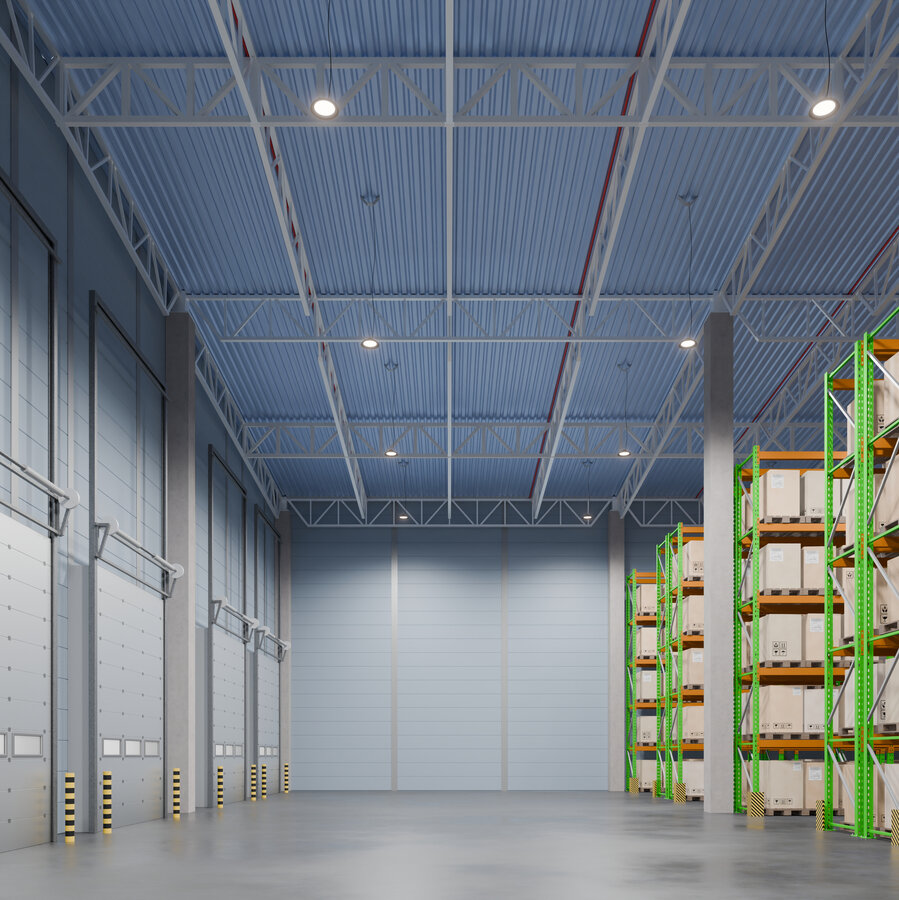

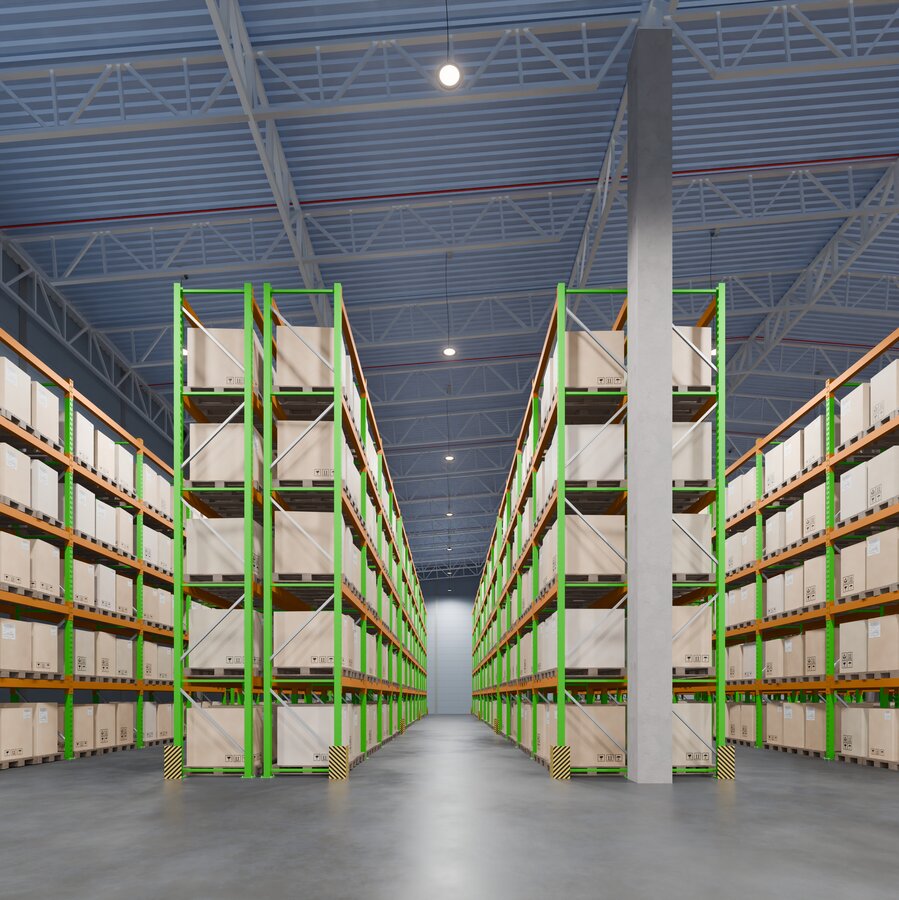

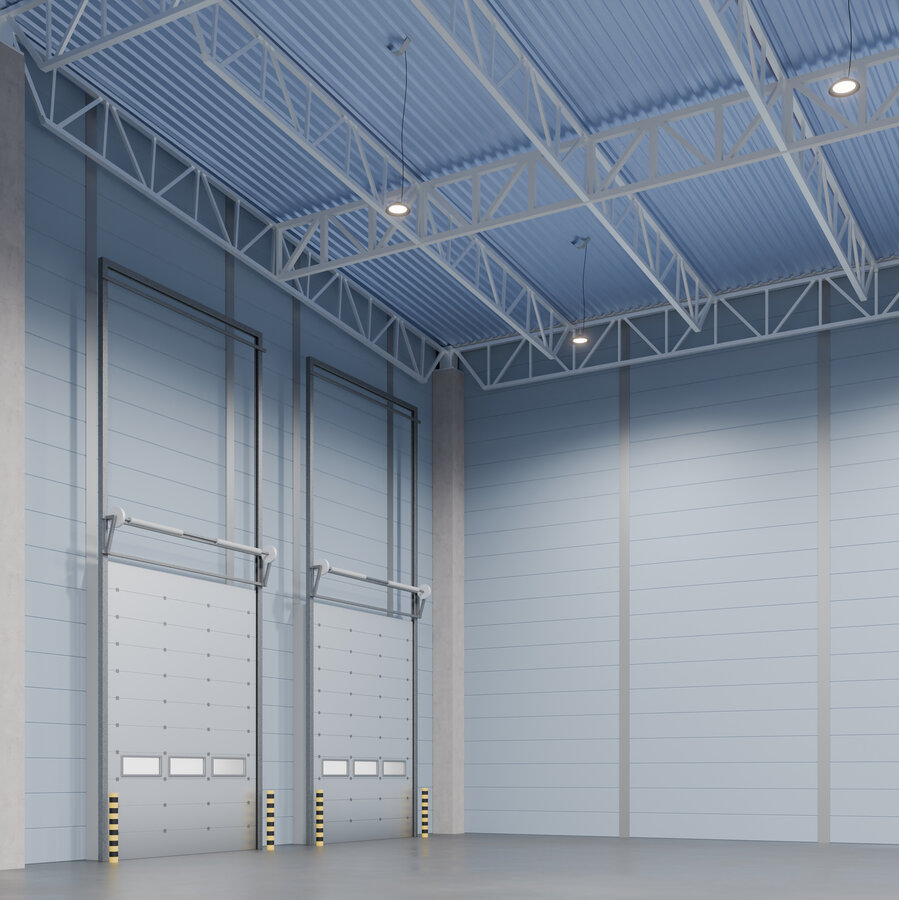

Industrial High-Bay luminaire designed for LED light source of high lighting performance. Forza LED is ideal for lighting warehouses, manufacturing areas, transportation routes as well as residential lofts and other unusual places with idustrial touch.

Industrial

Forza New LED

Industrial High-Bay luminaire designed for LED light source of high lighting performance. Forza LED is ideal for lighting warehouses, manufacturing areas, transportation routes as well as residential lofts and other unusual places with idustrial touch.

Go to the variant list (24)

LED

IP65

IK10

yes

Basic information:

Materials:

Grooved aluminum housing, transparent diffuser, LED light source from reputable manufacturers, IP65 connector.

Installation:

Suspended

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Industrial

Application:

Laboratory, Garage, Technical room, Security, Social room, Sport facilities, Parking and garage, Arcade, Car park, Sport field

Mounting type:

Pendant

Technical data:

Luminaire power:

100 - 240 W

Luminaire luminous flux:

17000 - 42800 lm

Outer diameter:

250 mm, 300 mm, 345 mm

Beam angle:

60°, 90°, 120°

See other technical data

Description of the product's family

250 mm LNS

250 mm SH

300 mm LNS

300 mm SH

345 mm LNS

345 mm SH

345 mm 240 W LNS

234 mm 240 W SH

Technical data

Mechanical data

Type of installation	Suspended
Housing material	Die cast aluminum

Optical data

Louver/ diffuser	LNS, SH
Diffuser colour	Transparent
Diffuser material	Transparent glass

Electrical data

Light source	LED
Luminaire power	100 - 240 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	No
Type of driver	DALI, ON/OFF

Information data

Net weight	2.3 - 4.4 kg
Colour	Black
Power and luminous flux tolerance	+/-10%

Light data

Luminaire luminous flux	17000 - 42800 lm
Luminaire's luminous efficacy	170 - 191 lm/W
Light colour	White
Color rendering index	80
Light distribution	DI
Beam angle	60°, 90°, 120°
MacAdam	SDCM 3
Colour temperature	4000K
CRI & colour temperature	840

Certificates

Degree of protection (IP)	IP65
Impact resistance	IK10
Class of protection	I
Light source protection	yes
CE	yes

Product variants

✕

Search

Filters

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /MATTE REFLECTOR/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Beam angle	Louver/ diffuser [Optical system]	CRI & colour temperature	Colour	Type of driver	Type of family
CX011.3377.840.A000 Copy the code Open in new window	100 W	17000 lm	170 lm/W	60°	LNS	840	Black	ON/OFF	60°
CX011.3377.840.D000 Copy the code Open in new window	100 W	17000 lm	170 lm/W	60°	LNS	840	Black	DALI	60°
CX012.3377.840.A000 Copy the code Open in new window	100 W	18200 lm	182 lm/W	90°	LNS	840	Black	ON/OFF	90°
CX012.3377.840.D000 Copy the code Open in new window	100 W	18200 lm	182 lm/W	90°	LNS	840	Black	DALI	90°
CX013.3389.840.A000 Copy the code Open in new window	100 W	17800 lm	178 lm/W	120°	SH	840	Black	ON/OFF	120°
CX013.3389.840.D000 Copy the code Open in new window	100 W	17800 lm	178 lm/W	120°	SH	840	Black	DALI	120°
CX015.3377.840.A000 Copy the code Open in new window	150 W	28000 lm	187 lm/W	60°	LNS	840	Black	ON/OFF	60°
CX015.3377.840.D000 Copy the code Open in new window	150 W	28000 lm	187 lm/W	60°	LNS	840	Black	DALI	60°
CX016.3377.840.A000 Copy the code Open in new window	150 W	28700 lm	191 lm/W	90°	LNS	840	Black	ON/OFF	90°
CX016.3377.840.D000 Copy the code Open in new window	150 W	28700 lm	191 lm/W	90°	LNS	840	Black	DALI	90°
CX017.3389.840.A000 Copy the code Open in new window	150 W	28000 lm	187 lm/W	120°	SH	840	Black	ON/OFF	120°
CX017.3389.840.D000 Copy the code Open in new window	150 W	28000 lm	187 lm/W	120°	SH	840	Black	DALI	120°
CX022.3377.840.A000 Copy the code Open in new window	200 W	35000 lm	175 lm/W	60°	LNS	840	Black	ON/OFF	60°
CX022.3377.840.D000 Copy the code Open in new window	200 W	35000 lm	175 lm/W	60°	LNS	840	Black	DALI	60°
CX023.3377.840.A000 Copy the code Open in new window	200 W	36200 lm	181 lm/W	90°	LNS	840	Black	ON/OFF	90°
