Geometric Ring LED

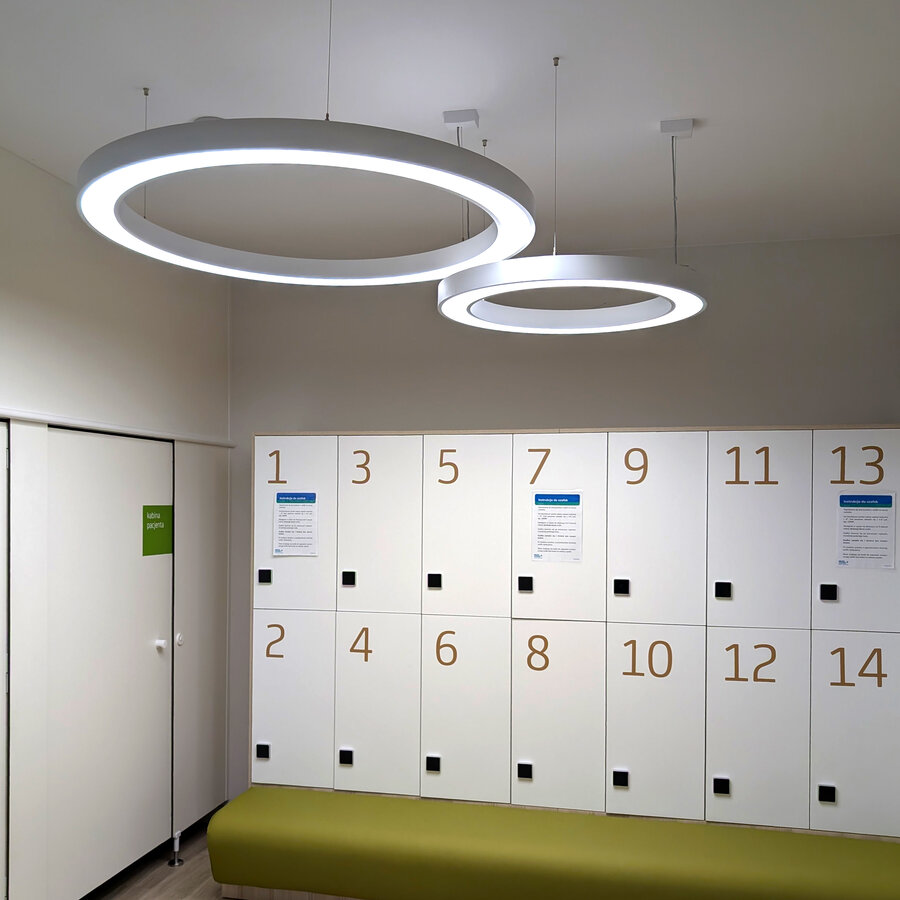

A family of LED luminaires in the shape of a round. Thanks to their modern and universal shape, GEOMETRIC RING MINI LED luminaires can be used in any type of space inside a building. Their main characteristics are a uniform luminance all over the OPAL diffuser and a high-quality lighting performance. Suspensions in set.

Decorative

Geometric Ring LED

A family of LED luminaires in the shape of a round. Thanks to their modern and universal shape, GEOMETRIC RING MINI LED luminaires can be used in any type of space inside a building. Their main characteristics are a uniform luminance all over the OPAL diffuser and a high-quality lighting performance. Suspensions in set.

Go to the variant list (102)

LED

IP40

IK04

yes

yes

Basic information:

Materials:

powder painted aluminum profile (white, grey and black colours in standard). OPAL diffuser.

Installation:

suspended (suspensions 1,5 m in set)

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Decorative

Application:

Office, Conference room, Reception, Commercial premises, Corridor and staircase

Mounting type:

Pendant, Ceiling mounted

Technical data:

Luminaire power:

38 - 140 W

Luminaire luminous flux:

3740 - 14000 lm

Outer diameter:

640 mm, 800 mm, 1200 mm

See other technical data

Description of the product's family

Technical data

Mechanical data

Type of installation	Suspended
Housing material	Aluminum

Optical data

Louver/ diffuser	MPRM, OPAL
UGR	15, 16, 18, 19

Electrical data

Light source	LED
Luminaire power	38 - 140 W
Number of light sources	1
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	No
Light source included	yes
Power factor	0.96
Type of driver	DALI, ON/OFF

Information data

Net weight	6.8 - 10.5 kg
Colour	Black, Grey, White
Operating temperature range	-15 ... 40
RAL - any color from the palette	yes
Power and luminous flux tolerance	+/-10%
Info	1200mm, 800mm

Light data

Luminaire luminous flux	3740 - 14000 lm
Luminaire's luminous efficacy	83 - 109 lm/W
Light colour	White
Color rendering index	80, 90
Light distribution	Wide beam
Light distribution	DI
Class of luminaire	I
MacAdam	SDCM 3
Lifetime L80B10 @25°C	100.000 h
Lifetime L90B10 @25°C	64.000 h
Lamp Lumen Maintenance Factor (after 60 000h)	85 %
Colour temperature	3000K, 4000K, 6500 K
CRI & colour temperature	830, 840, 930, 940, 965

Certificates

Degree of protection (IP)	IP40
Impact resistance	IK04
Class of protection	I
Light source protection	yes
CE	yes
HACCP+	yes

Product variants

✕

Search

Filters

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /MATTE REFLECTOR/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Louver/ diffuser [Optical system]	CRI & colour temperature	Colour	Type of driver	Type of family
AE001.1111.830.A000 Copy the code Open in new window	86 W	8390 lm	98 lm/W	OPAL	830	White	ON/OFF	800mm
AE001.1111.830.D000 Copy the code Open in new window	86 W	8390 lm	98 lm/W	OPAL	830	White	DALI	800mm
AE001.1111.840.A000 Copy the code Open in new window	86 W	8650 lm	101 lm/W	OPAL	840	White	ON/OFF	800mm
AE001.1111.840.D000 Copy the code Open in new window	86 W	8650 lm	101 lm/W	OPAL	840	White	DALI	800mm
AE001.1111.930.A000 Copy the code Open in new window	86 W	7140 lm	83 lm/W	OPAL	930	White	ON/OFF	800mm
AE001.1111.930.D000 Copy the code Open in new window	86 W	7140 lm	83 lm/W	OPAL	930	White	DALI	800mm
AE001.1111.940.A000 Copy the code Open in new window	86 W	7360 lm	86 lm/W	OPAL	940	White	ON/OFF	800mm
AE001.1111.940.D000 Copy the code Open in new window	86 W	7360 lm	86 lm/W	OPAL	940	White	DALI	800mm
AE001.2211.830.A000 Copy the code Open in new window	86 W	8390 lm	98 lm/W	OPAL	830	Grey	ON/OFF	800mm
AE001.2211.830.D000 Copy the code Open in new window	86 W	8390 lm	98 lm/W	OPAL	830	Grey	DALI	800mm
AE001.2211.840.A000 Copy the code Open in new window	86 W	8650 lm	101 lm/W	OPAL	840	Grey	ON/OFF	800mm
AE001.2211.840.D000 Copy the code Open in new window	86 W	8650 lm	101 lm/W	OPAL	840	Grey	DALI	800mm
AE001.2211.930.A000 Copy the code Open in new window	86 W	7140 lm	83 lm/W	OPAL	930	Grey	ON/OFF	800mm
AE001.2211.930.D000 Copy the code Open in new window	86 W	7140 lm	83 lm/W	OPAL	930	Grey	DALI	800mm
AE001.2211.940.A000 Copy the code Open in new window	86 W	7360 lm	86 lm/W	OPAL	940	Grey	ON/OFF	800mm

Displaying items: 15 of 102

of 7

per page

Family datasheet

Download

Family datasheet extended

Download

Installation manual

434.25 KB

Download

EC Declaration of conformity

Download

Photometric file

8.21 KB

Download

Download all files

Structural elements

Geometric Ring LED acoustic infill

Installation elements

Geometric LED (Ring/Triangle) Suspension set central 3x
