Industrial
Hall LED

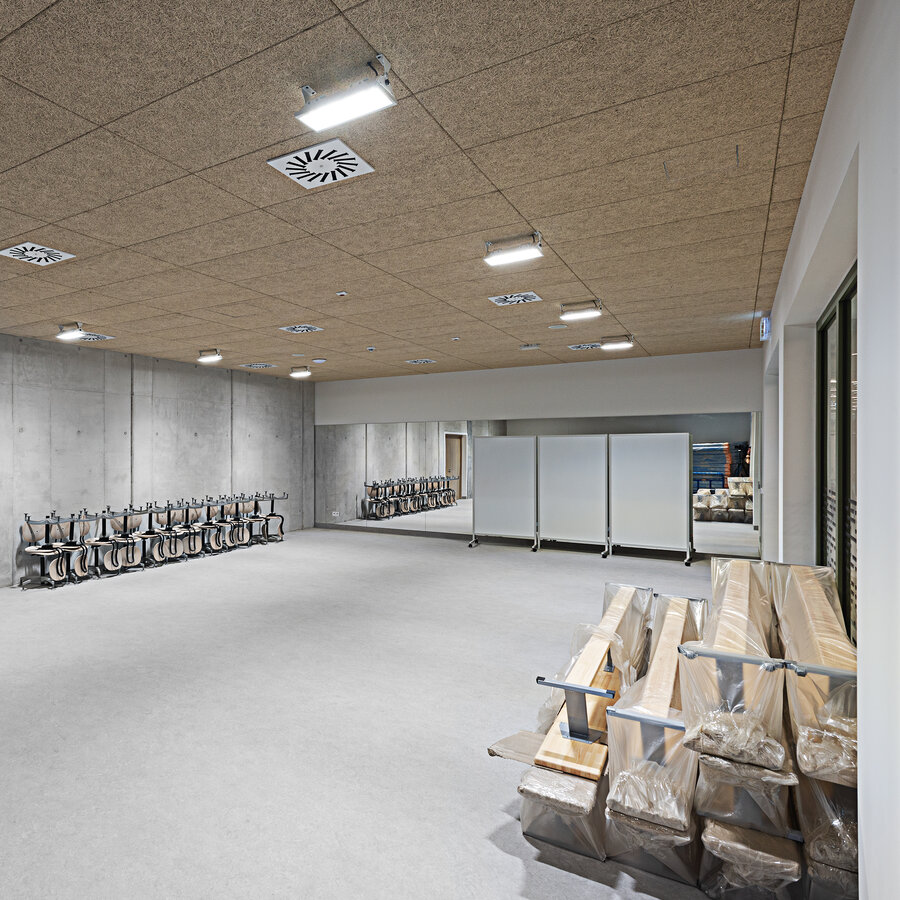

The luminaire Hall LED was designed for lighting high rooms where possibly the best energy efficiency is the most important matter.
The luminaire is ENEC certified.

Industrial
Hall LED

The luminaire Hall LED was designed for lighting high rooms where possibly the best energy efficiency is the most important matter.
The luminaire is ENEC certified.

Go to the variant list (142)
LED
DI
IP65
IK08
I
yes
yes
yes
yes
Basic information:
Materials:
aluminium profile body (standard colours: white, gray, black), optics with three angles of light distribution: 60°, 90°, HR - High Rack, plastic diffuser, cable fitting and 2m long power cord, built-in element for the reduction of condensation by pressure compensation in power distribution systems
Accessories:
simple suspension, ceiling joint NT 1x and 2x, wall mounting bracket
Installation:
suspended, surface- or wall-mounted
Power:
220 ... 240 V
Categorization:
Type of luminaire:
Industrial
Application:
Laboratory, Garage, Technical room, Security, Social room, Sport facilities, Parking and garage, Arcade, Car park, Sport field
Mounting type:
Ceiling mounted, Pendant
Technical data:
Luminaire power:
48 - 295 W
Luminaire luminous flux:
8445 - 51940 lm
Length:
350 mm, 665 mm, 985 mm, 1305 mm
See other technical data
Technical data Product variants Download Accessories
Description of the product's family

HALL LED has an ENEC certificate issued by the independent testing laboratory no. 30.

The ENEC certification has been granted exclusively for the product types listed in the certificate, which is available for download on our website. Any interference with the structure, components, or modification of product parameters invalidates the use of the ENEC certification for those units. Please refer to the certification documentation to confirm product compliance with ENEC requirements.

For more information please contact our sales representative.
Technical data
Mechanical data
Type of installation Universal
Housing material Aluminum
Optical data
Louver/ diffuser LNS
UGR 18, 19, 20, 22, 23, 24, 25, 26
Electrical data
Light source LED
Luminaire power 48 - 295 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Power factor 0.96
Type of driver DALI, ON/OFF
Emergency module option
Motion sensor option
Information data
Net weight 1.7 - 5.7 kg
Colour Black, Grey, White
Operating temperature range -20 ... 45
Power and luminous flux tolerance +/-10%
Other LNS
Info 1x 1305, 1x 350, 1x 665, 1x 985, 2x 350, 2x 665, 2x 985
Light data
Luminaire luminous flux 8445 - 51940 lm
Luminaire's luminous efficacy 150 - 187 lm/W
Light colour White
Color rendering index 80, 90
Light distribution DI
Class of luminaire I
Beam angle 60 °, 90 °
MacAdam SDCM 3
Lifetime L80B10 @25°C 100.000 h
Lifetime L90B10 @25°C 64.000 h
Colour temperature 3000K, 4000K, 5000 K
CRI & colour temperature 830, 840, 850, 940
Certificates
Degree of protection (IP) IP65
Impact resistance IK08
Class of protection I
Light source protection yes
PZH yes
CE yes
ENEC yes
HACCP+ yes
Product variants
✕
Search
Filters (1)
How does the product indexing system work?
AA
002
.
22
11
.
830
.
D
0
0
0
Family
AA ALTO LED
AB ALTO WALL
Type
001 e.g.: 545 mm
002 e.g.: 1085 mm
Colour
11 WHITE RAL 9016
12 WHITE RAL 9010
22 GREY RAL 9006
33 BLACK RAL 9005
44 ANTHRACITE RALBG 452
45 ANTHRACITE RAL 7016
99 OTHER - PERSONALIZATION
Optical system
00 EMPTY
11 OPAL /MILK DIFFUSER/
22 MPRM /MICROPRISMATIC DIFFUSER/
23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/
24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/
33 PAR /PARABOLIC LOUVER/
34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/
44 mPARM /PARABOLIC MINI LOUVER METALLIZED/
45 PARW /PARABOLIC LOUVER WHITE/
46 mPARB /PARABOLIC MINI LOUVER BLACK/
66 RF /REFLECTOR/
67 RM /MATTE REFLECTOR/
68 RW /REFLECTOR WHITE/
77 LNS /LENS/
88 SH MAT /MATTE TEMPERED GLASS/
89 SH /TEMPERED GLASS/
CRI / Colour temp.
827
830 CRI ≥ 80; CCT 3000K
835 CRI ≥ 80; CCT 3500K
840 CRI ≥ 80; CCT 4000K
850 CRI ≥ 80; CCT 5000K
857 CRI ≥ 80; CCT 5700K
865 CRI ≥ 80; CCT 6500K
8TW CRI ≥ 80; Tunable white
927 CRI ≥ 90; CCT 2700K
930 CRI ≥ 90; CCT 3000K
935 CRI ≥ 90; CCT 3500K
940 CRI ≥ 90; CCT 4000K
950 CRI ≥ 90; CCT 5000K
957 CRI ≥ 90; CCT 5700K
965 CRI ≥ 90; CCT 6500K
9TW CRI ≥ 90; Tunable white
RGB RGB
Driver
A ON/OFF /WITHOUT REGULATION/
D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/
H HO /DRIVER WITH PREDEFINED SETTING/
E HE /DRIVER WITH PREDEFINED SETTING/
F HO DALI /DRIVER WITH PREDEFINED SETTING/
G HE DALI /DRIVER WITH PREDEFINED SETTING/
K DSI
I CF /CORRIDOR FUNCTION - STEP DIMMING/
C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/
X DMX
S sDIMM
V 1-10V /ADJUSTABLE/
Emergency module
0 WITHOUT EMERGENCY MODULE
1 EM1H ST /SELFTEST/
2 EM3H ST /SELFTEST/
3 EM1H BASIC
4 EM3H BASIC
5 EM1H PRO /DALI/
6 EM3H PRO /DALI/
Through wiring
0 WITHOUT THROUGH WIRING
1 TH3 /3-PHASE THROUGH WIRING/
2 TH5 /5-PHASE THROUGH WIRING/
3 TH7 /7-PHASE THROUGH WIRING/
4 WI /WIELAND/
5 WI TH /THROUGH WIRING/
Motion sensor
0 WITHOUT MOTION SENSOR
1 MW PRO /PASSIVE INFRARED - STEP DIMM/
2 PIR /INFRARED/
Technical data
Dimensions
Filtering by parameters
Attribute filter: 1
New: yes
Parameters
Luminaire power
Show products
Luminous flux
Show products
CRI / Colour temp.
Select all
Reset
Show products
Driver
Select all
Reset
Show products
Colour
Select all
Reset
Show products
Length
Show products
Width
Show products
Optics
Select all
Reset
Show products
Type of family
Select all
Reset
Show products
Index
Luminaire power
Luminaire luminous flux
Luminaire's luminous efficacy
Optics
Colour
Type of driver
Type of family
HH001.1177.840.A000
Copy the code
Open in new window
48 W 8445 lm 176 lm/W HR
White
 ON/OFF 1X350 HR
HH001.2277.840.A000
Copy the code
Open in new window
48 W 8445 lm 176 lm/W HR
Grey
 ON/OFF 1X350 HR
HH001.3377.840.A000
Copy the code
Open in new window
48 W 8445 lm 176 lm/W HR
Black
 ON/OFF 1X350 HR
HH002.1177.840.A000
Copy the code
Open in new window
48 W 8570 lm 179 lm/W 60°
White
 ON/OFF 1X350 60°
HH002.2277.840.A000
Copy the code
Open in new window
48 W 8570 lm 179 lm/W 60°
Grey
 ON/OFF 1X350 60°
HH002.3377.840.A000
Copy the code
Open in new window
48 W 8570 lm 179 lm/W 60°
Black
 ON/OFF 1X350 60°
HH003.1177.840.A000
Copy the code
Open in new window
48 W 8525 lm 178 lm/W 90°
White
 ON/OFF 1X350 90°
HH003.2277.840.A000
Copy the code
Open in new window
48 W 8525 lm 178 lm/W 90°
Grey
 ON/OFF 1X350 90°
HH003.3377.840.A000
Copy the code
Open in new window
48 W 8525 lm 178 lm/W 90°
Black
 ON/OFF 1X350 90°
HH004.1177.840.A000
Copy the code
Open in new window
68 W 12550 lm 185 lm/W HR
White
 ON/OFF 1X665 HR
HH004.1177.840.D000
Copy the code
Open in new window
68 W 12550 lm 185 lm/W HR
White
 DALI 1X665 HR
HH004.2277.840.A000
Copy the code
Open in new window
68 W 12550 lm 185 lm/W HR
Grey
 ON/OFF 1X665 HR
HH004.2277.840.D000
Copy the code
Open in new window
68 W 12550 lm 185 lm/W HR
Grey
 DALI 1X665 HR
HH004.3377.840.A000
Copy the code
Open in new window
68 W 12550 lm 185 lm/W HR
Black
 ON/OFF 1X665 HR
HH004.3377.840.D000
Copy the code
Open in new window
68 W 12550 lm 185 lm/W HR
Black
 DALI 1X665 HR
Displaying items: 15 of 142
