Wall-mounted luminaire designed for patient rooms and healthcare environments, combining two independently controlled light distributions. Direct side provides comfortable, focused reading light for the patient, while indirect delivers soft illumination for general and night-time lighting.
Installed above the eye level of standing personnel, it minimises glare and visual discomfort for medical staff while creating a calm, comfortable atmosphere for patients. Designed to meet the requirements of the most demanding European healthcare markets, it delivers a refined lighting solution for patient rooms.
A power cord is not included with the luminaire. We recommend connecting the luminaire to a wall switch.
Wall-mounted luminaire designed for patient rooms and healthcare environments, combining two independently controlled light distributions. Direct side provides comfortable, focused reading light for the patient, while indirect delivers soft illumination for general and night-time lighting.
Installed above the eye level of standing personnel, it minimises glare and visual discomfort for medical staff while creating a calm, comfortable atmosphere for patients. Designed to meet the requirements of the most demanding European healthcare markets, it delivers a refined lighting solution for patient rooms.
A power cord is not included with the luminaire. We recommend connecting the luminaire to a wall switch.
wall mounted
| Louver/ diffuser | OPAL |
| Diffuser colour | White |
| Diffuser material | Opal/mat plastic |
| Light source | LED |
| Luminaire power | 70 W |
| Type of equipment | AC |
| Through wiring | No |
| Type of driver | ON/OFF |
| Emergency module | OPAL |
| Motion sensor | No |
| Net weight | 3 kg |
| Colour | White |
| Power and luminous flux tolerance | +/-10% |
| Luminaire luminous flux DI | 3630 lm |
| Luminaire luminous flux IN | 6580 lm |
| Luminaire's luminous efficacy | 146 lm/W |
| Light colour | White |
| Color rendering index | 80 |

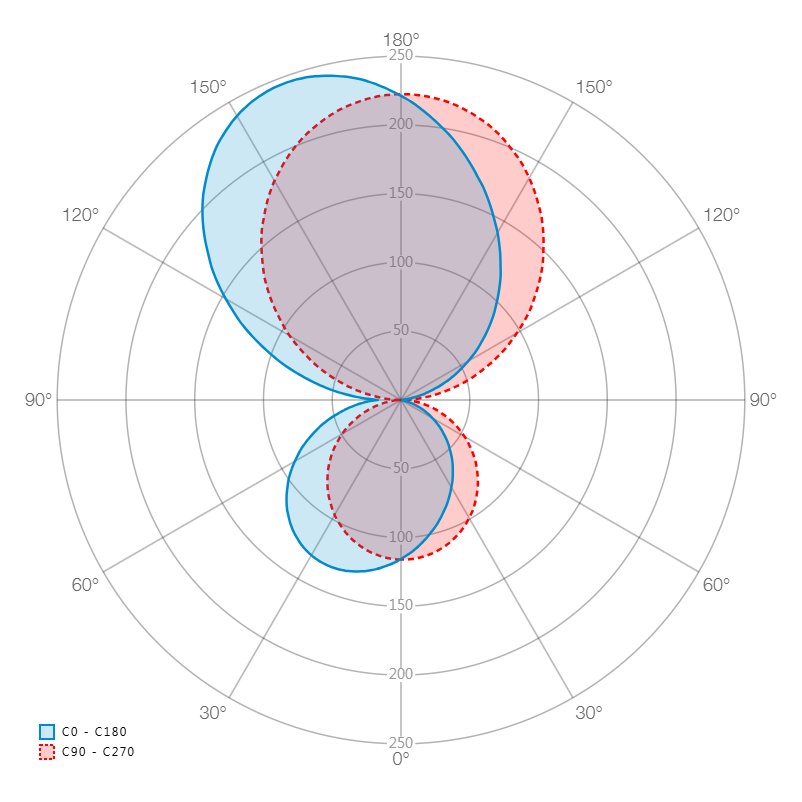

| Light distribution | DI/IN |
| MacAdam | SDCM 3 |
| Lifetime L80B10 @25°C | 100.000 h |
| Lifetime L90B10 @25°C | 64.000 h |
| Colour temperature | 4000K |
| CRI & colour temperature | 840 |
| Degree of protection (IP) | IP40 |
| Impact resistance | IK04 |
| Class of protection | I |
| Light source protection | yes |
| CE | yes |
| HACCP+ | yes |
| L | W | H |
|---|---|---|
| 930 mm | 220 mm | 143 mm |
