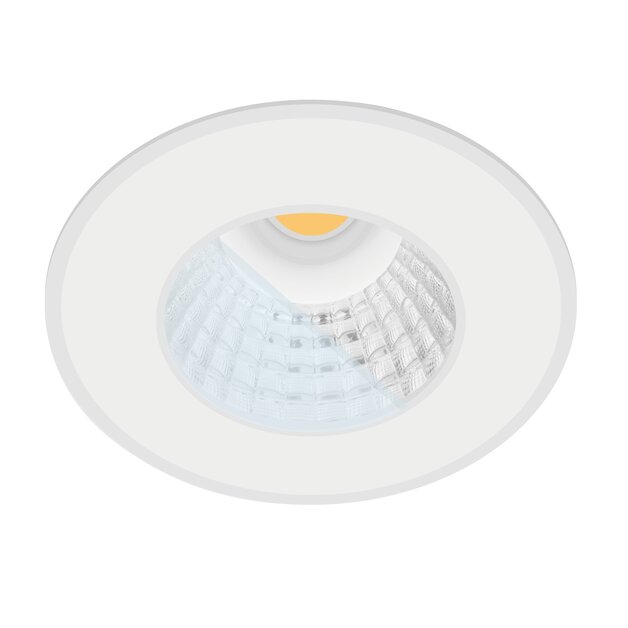

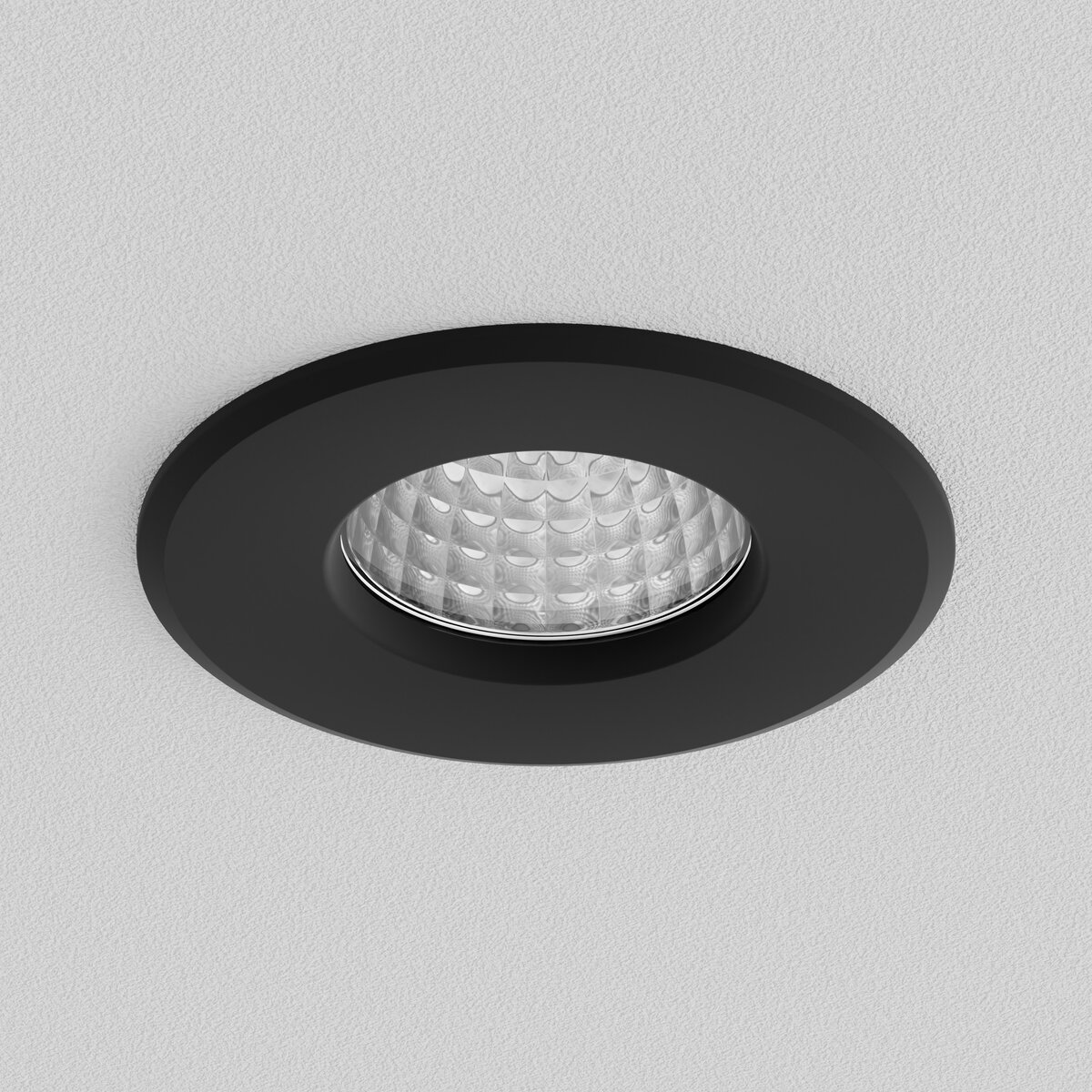

Downlight
OS II LED
LED spotlights with IP65, designed for accent lighting outside the buildings and in humid rooms.
Downlight
OS II LED
LED spotlights with IP65, designed for accent lighting outside the buildings and in humid rooms.
Go to the variant list (11)
LED
DI
IP20
IP65
IK04
I
yes
yes
Basic information:
Materials:
Powder painted white aluminum ring. Transparent tempered glass. Faceted aluminium reflector.

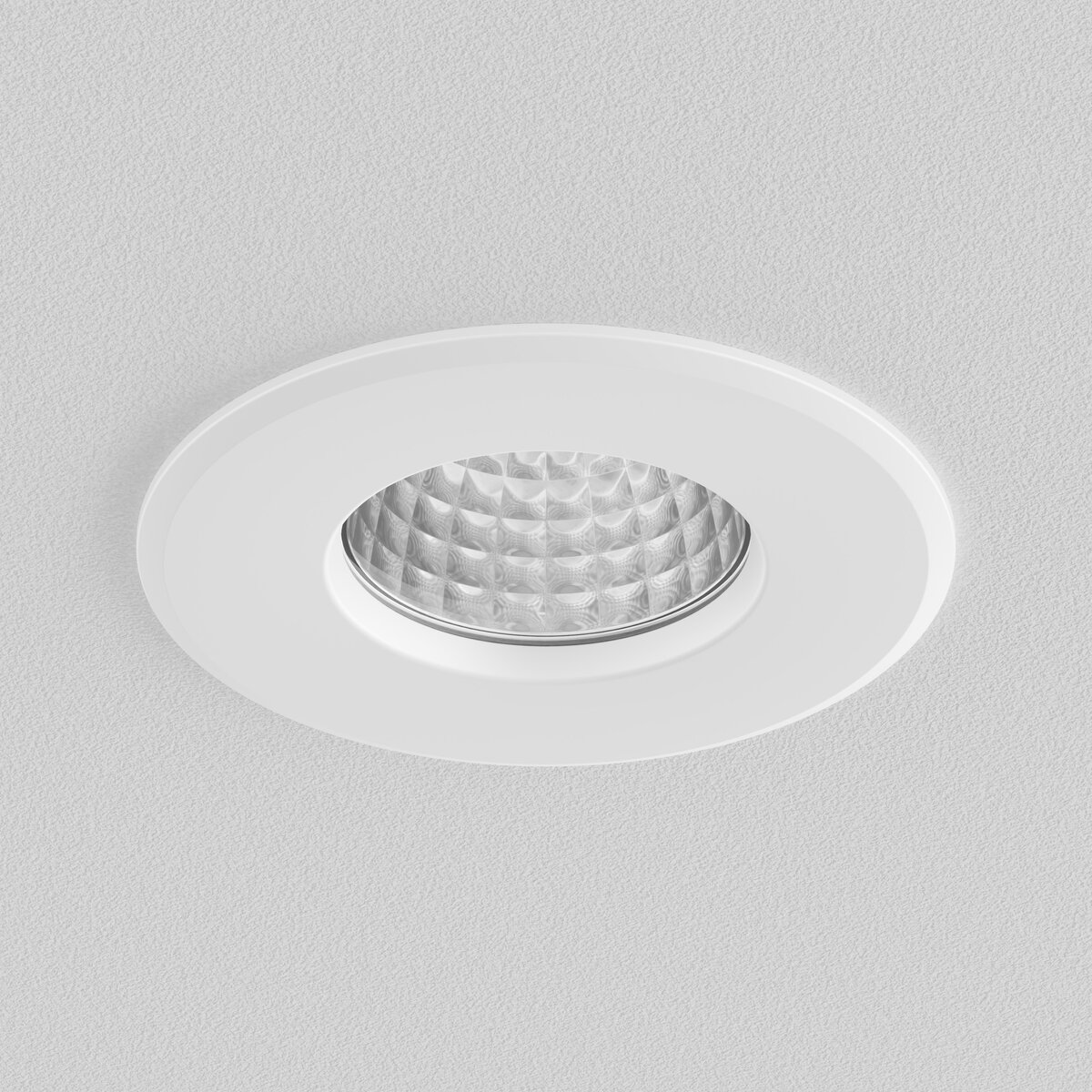

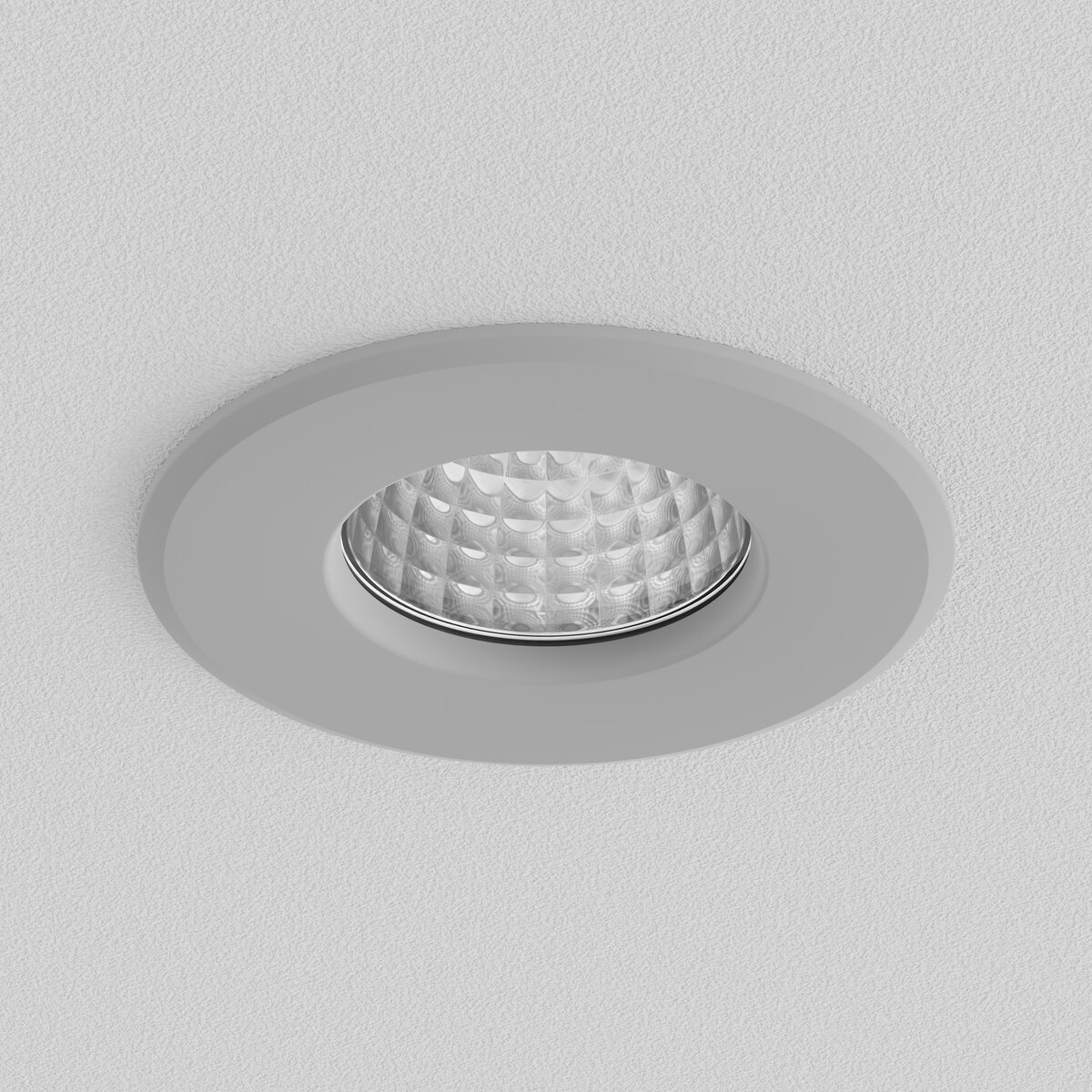

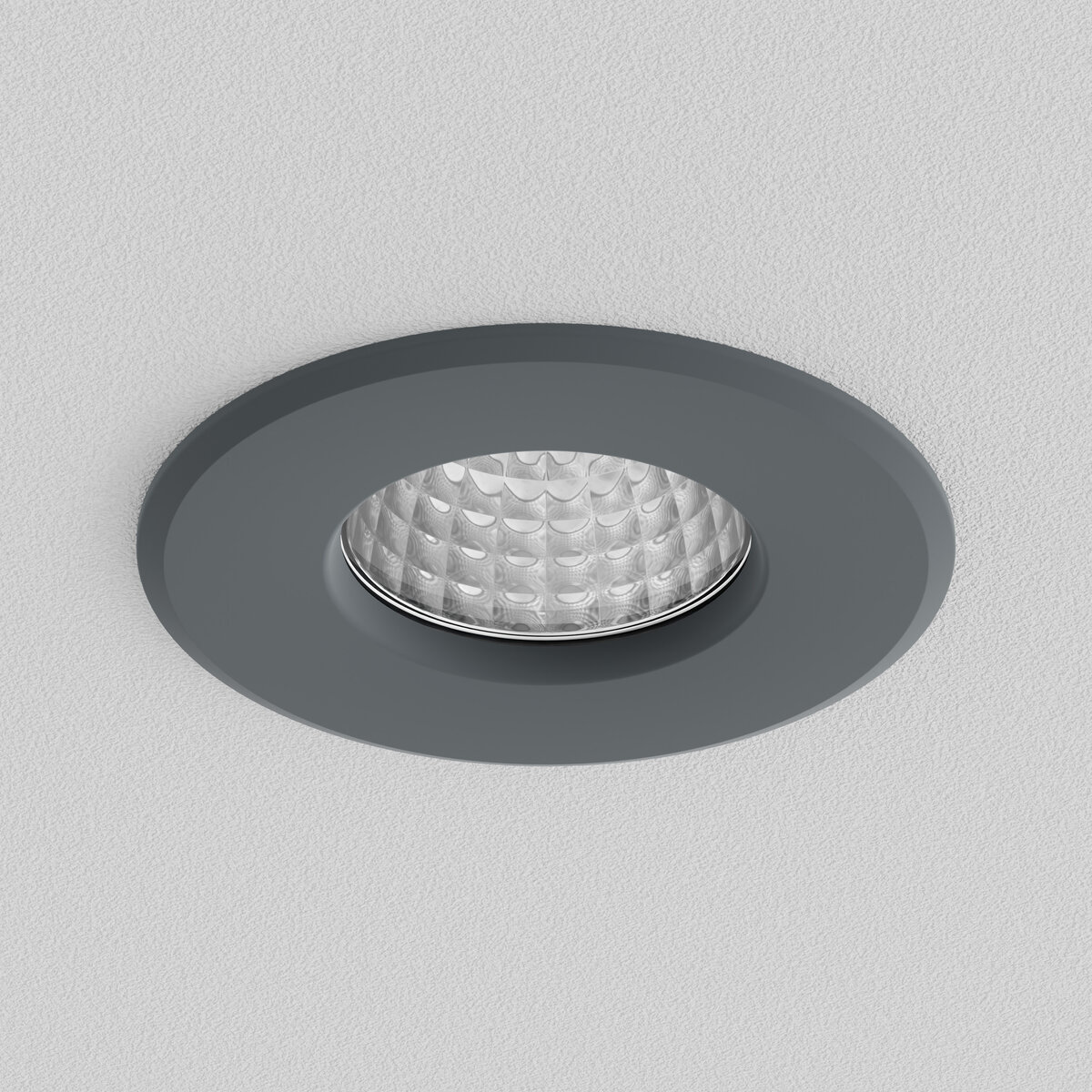

Installation:
Into suspended ceilings.
Power:
220 ... 240 V
Categorization:
Type of luminaire:
Downlight
Application:
Social room, Corridor and staircase, Bathroom, Reception, Cloak room, Technical room, Security
Mounting type:
Plasterboard recessed
Technical data:
Luminaire power:
14 W
Luminaire luminous flux:
1240 lm
See other technical data
Technical data Product variants Download
Description of the product's family
Technical data
Mechanical data
Type of installation For 600x600 ceiling
Mounting hole dimensions 72 mm
Optical data
Louver/ diffuser LNS
UGR 25
Electrical data
Light source LED
Luminaire power 14 W
Number of light sources 1
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Type of driver DALI, ON/OFF
Information data
Net weight 0.2 kg

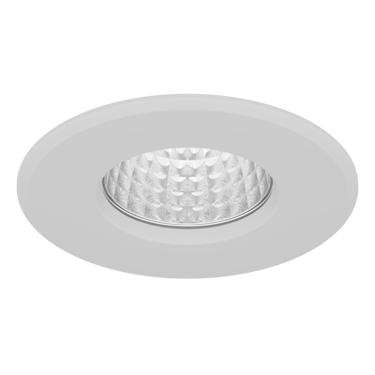

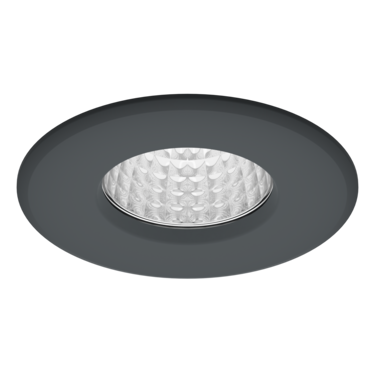

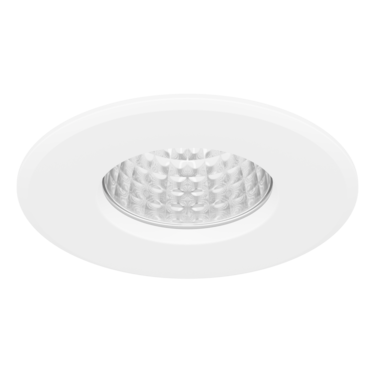

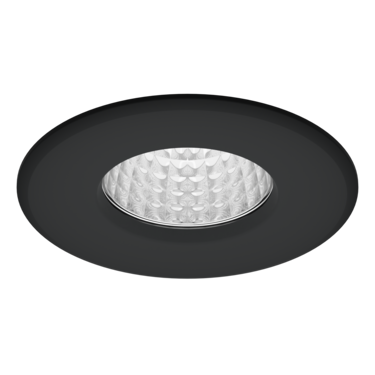

Colour Anthracite, Anthracite RAL7016, Black, Grey, White
Operating temperature range -15 ... 40
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 1240 lm
Luminaire's luminous efficacy 89 lm/W
Light colour White
Color rendering index 80
Light distribution DI
Beam angle 40°
MacAdam SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h) 80 %
Colour temperature 3000K, 4000K
CRI & colour temperature 830, 840
Certificates
Degree of protection (IP) /top/ IP20
Degree of protection (IP) /bottom/ IP65
Impact resistance IK04
Class of protection I
Light source protection yes
CE yes
HACCP+ yes
Product variants
✕
Search
Filters
How does the product indexing system work?
AA
002
.
22
11
.
830
.
D
0
0
0
Family
AA ALTO LED
AB ALTO WALL
Type
001 e.g.: 545 mm
002 e.g.: 1085 mm
Colour
11 WHITE RAL 9016
12 WHITE RAL 9010
22 GREY RAL 9006
33 BLACK RAL 9005
44 ANTHRACITE RALBG 452
45 ANTHRACITE RAL 7016
99 OTHER - PERSONALIZATION
Optical system
00 EMPTY
11 OPAL /MILK DIFFUSER/
22 MPRM /MICROPRISMATIC DIFFUSER/
23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/
24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/
33 PAR /PARABOLIC LOUVER/
34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/
44 mPARM /PARABOLIC MINI LOUVER METALLIZED/
45 PARW /PARABOLIC LOUVER WHITE/
46 mPARB /PARABOLIC MINI LOUVER BLACK/
66 RF /REFLECTOR/
67 RM /MATTE REFLECTOR/
68 RW /REFLECTOR WHITE/
77 LNS /LENS/
88 SH MAT /MATTE TEMPERED GLASS/
89 SH /TEMPERED GLASS/
CRI / Colour temp.
827
830 CRI ≥ 80; CCT 3000K
835 CRI ≥ 80; CCT 3500K
840 CRI ≥ 80; CCT 4000K
850 CRI ≥ 80; CCT 5000K
857 CRI ≥ 80; CCT 5700K
865 CRI ≥ 80; CCT 6500K
8TW CRI ≥ 80; Tunable white
927 CRI ≥ 90; CCT 2700K
930 CRI ≥ 90; CCT 3000K
935 CRI ≥ 90; CCT 3500K
940 CRI ≥ 90; CCT 4000K
950 CRI ≥ 90; CCT 5000K
957 CRI ≥ 90; CCT 5700K
965 CRI ≥ 90; CCT 6500K
9TW CRI ≥ 90; Tunable white
RGB RGB
Driver
A ON/OFF /WITHOUT REGULATION/
D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/
H HO /DRIVER WITH PREDEFINED SETTING/
E HE /DRIVER WITH PREDEFINED SETTING/
F HO DALI /DRIVER WITH PREDEFINED SETTING/
G HE DALI /DRIVER WITH PREDEFINED SETTING/
K DSI
I CF /CORRIDOR FUNCTION - STEP DIMMING/
C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/
X DMX
S sDIMM
V 1-10V /ADJUSTABLE/
Emergency module
0 WITHOUT EMERGENCY MODULE
1 EM1H ST /SELFTEST/
2 EM3H ST /SELFTEST/
3 EM1H BASIC
4 EM3H BASIC
5 EM1H PRO /DALI/
6 EM3H PRO /DALI/
Through wiring
0 WITHOUT THROUGH WIRING
1 TH3 /3-PHASE THROUGH WIRING/
2 TH5 /5-PHASE THROUGH WIRING/
3 TH7 /7-PHASE THROUGH WIRING/
4 WI /WIELAND/
5 WI TH /THROUGH WIRING/
Motion sensor
0 WITHOUT MOTION SENSOR
1 MW PRO /PASSIVE INFRARED - STEP DIMM/
2 PIR /INFRARED/
Technical data
Dimensions
Filtering by parameters
Parameters
CRI / Colour temp.
Select all
Reset
Show products
Driver
Select all
Reset
Show products
Colour
Select all
Reset
Show products
Index
Luminaire power
Luminaire luminous flux
Luminaire's luminous efficacy
Beam angle
Louver/ diffuser
[Optical system]
CRI & colour temperature
Colour
Type of driver
Type of family
DQ001.1177.830.A000
Copy the code
Open in new window
14 W 1240 lm 89 lm/W LNS 830
White
 ON/OFF 14W 40°
DQ001.1177.830.D000
Copy the code
Open in new window
14 W 1240 lm 89 lm/W LNS 830
White
 DALI 14W 40°
DQ001.1177.840.A000
Copy the code
Open in new window
14 W 1240 lm 89 lm/W 40° LNS 840
White
 ON/OFF 14W 40°
DQ001.1177.840.D000
Copy the code
Open in new window
14 W 1240 lm 89 lm/W LNS 840
White
 DALI 14W 40°
DQ001.2277.830.A000
Copy the code
Open in new window
14 W 1240 lm 89 lm/W LNS 830
Grey
 ON/OFF 14W 40°
DQ001.2277.840.A000
Copy the code
Open in new window
14 W 1240 lm 89 lm/W LNS 840
Grey
 ON/OFF 14W 40°
DQ001.2277.840.D000
Copy the code
Open in new window
14 W 1240 lm 89 lm/W LNS 840
Grey
 DALI 14W 40°
DQ001.3377.830.A000
Copy the code
Open in new window
14 W LNS 830
Black
 ON/OFF 14W 40°
DQ001.3377.840.D000
Copy the code
Open in new window
14 W 1240 lm 89 lm/W LNS 840
Black
 DALI 14W 40°
DQ001.4477.840.A000
Copy the code
Open in new window
14 W 1240 lm 89 lm/W LNS 840
Anthracite
 ON/OFF 14W 40°
DQ001.4577.840.D000
Copy the code
Open in new window
14 W 1240 lm 89 lm/W LNS 840
Anthracite RAL7016
 DALI 14W 40°
Displaying items: 11 of 11
of 1
15
15
50
100

per page

Projects
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
352.14 KB
Download
EC Declaration of conformity
Download
Photometric file
1.29 KB
Download
Download all files
