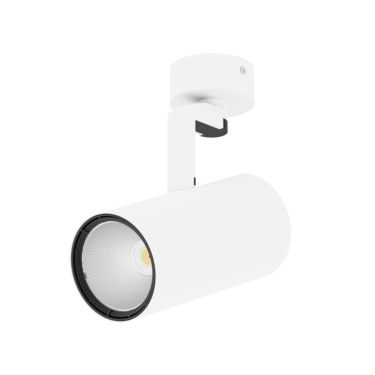

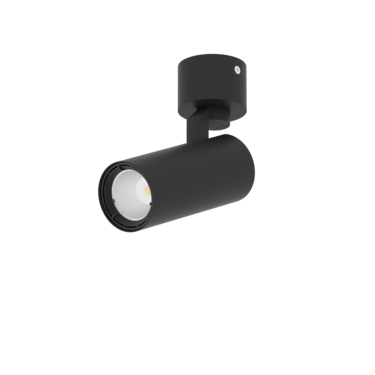

Point NT LED

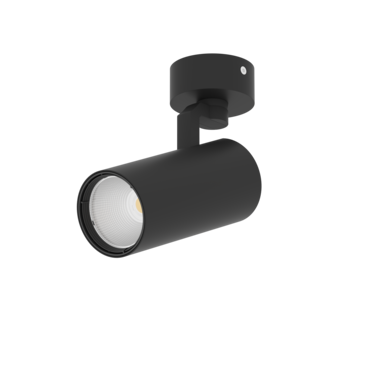

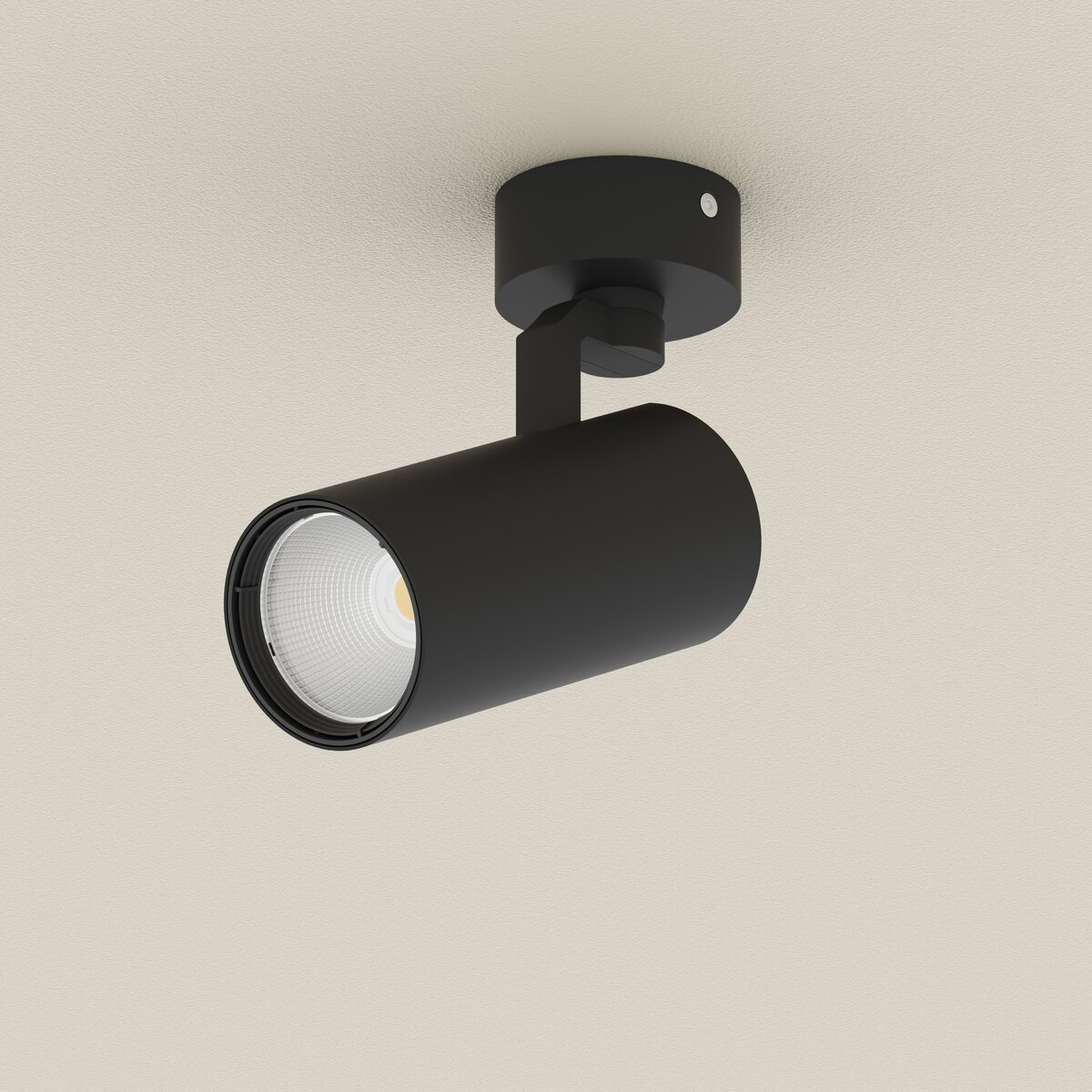

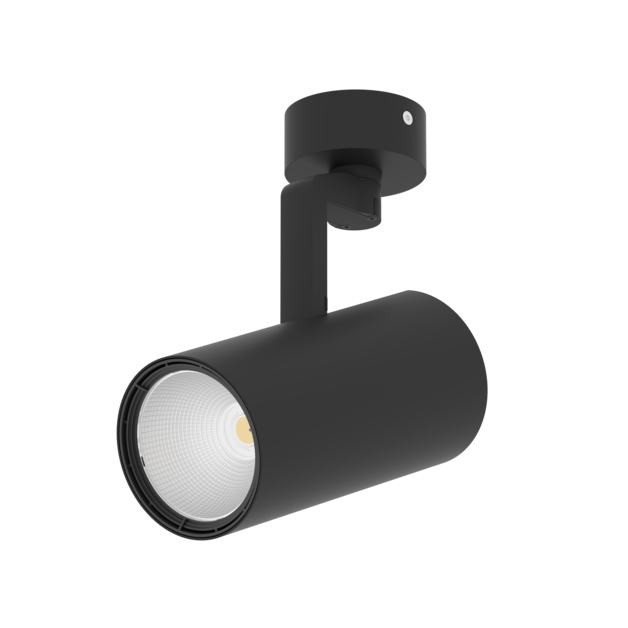

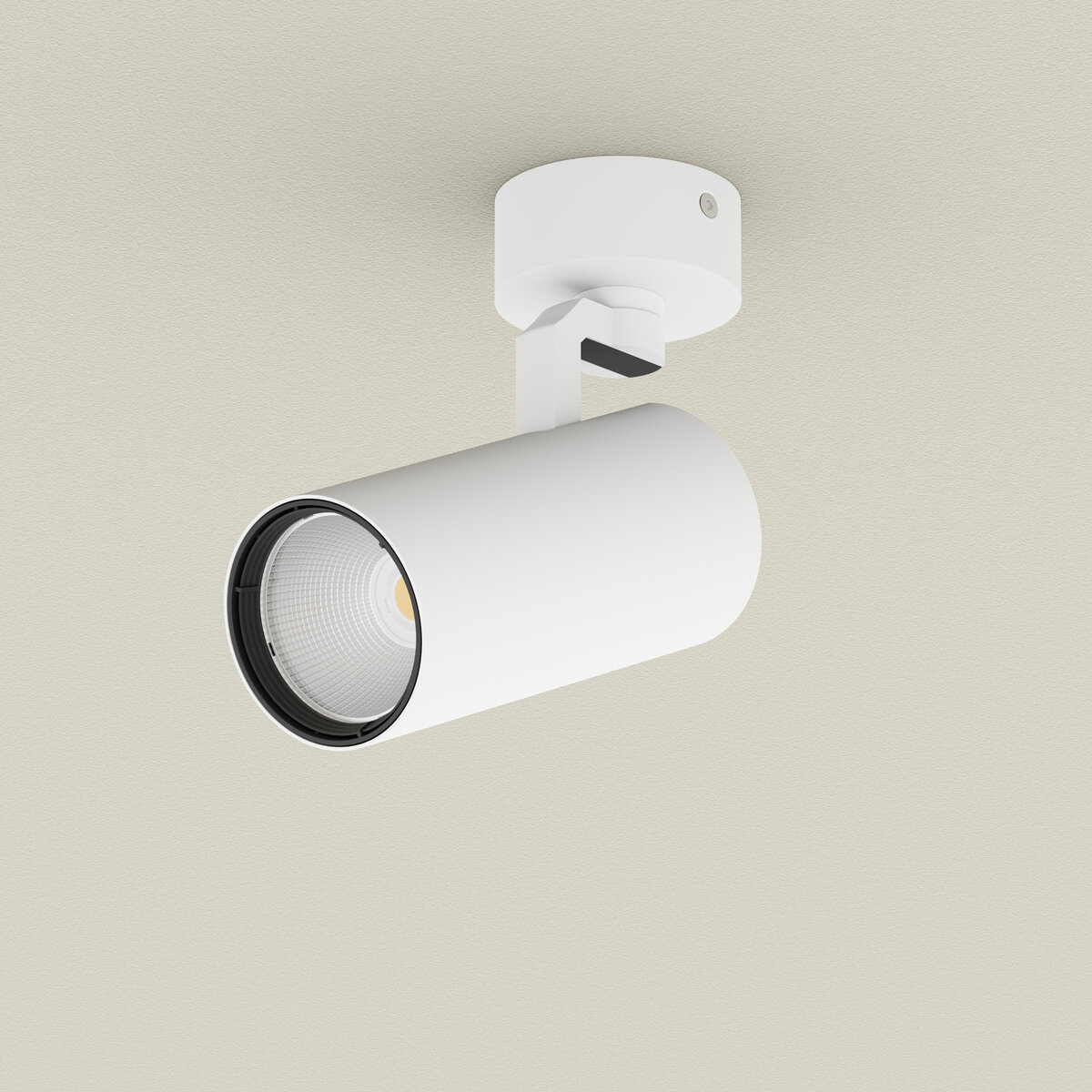

Modern floodlight designed especially for LED COB light sources. It can rotate up to 350° with respect to the vertical axis and pivot up to 90° upwards.

Spotlights and electrical tracks

Point NT LED

Modern floodlight designed especially for LED COB light sources. It can rotate up to 350° with respect to the vertical axis and pivot up to 90° upwards.

Go to the variant list (336)

LED

IP20

IK03

yes

yes

Basic information:

Materials:

body made of aluminum. Faceted reflectors in polycarbonate with mirror finish

Installation:

surface mounted

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Spotlights and electrical tracks

Application:

Reception, Commercial premises

Mounting type:

Ceiling mounted

Technical data:

Luminaire power:

9 - 34 W

Luminaire luminous flux:

775 - 4450 lm

See other technical data

Description of the product's family

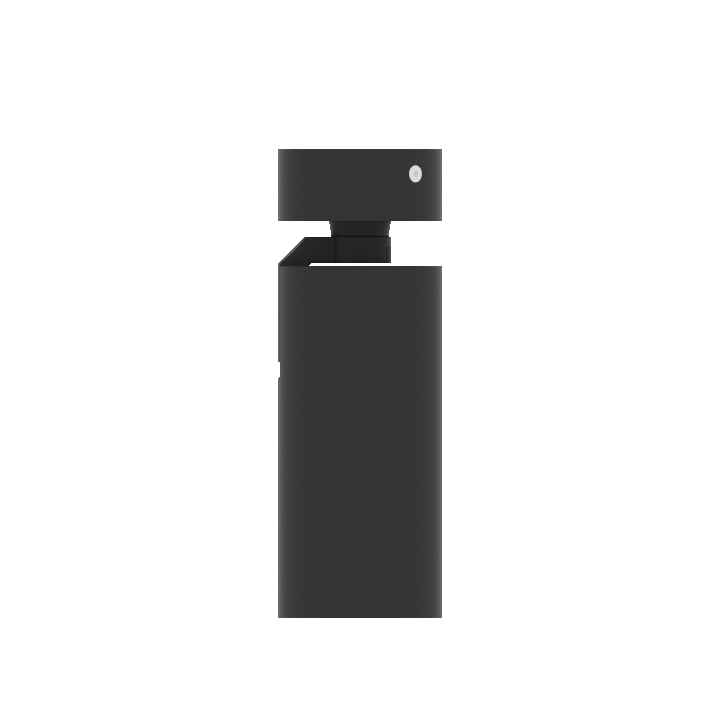

Position 0°

Position 65°

Position 90°

Technical data

Mechanical data

Type of installation	Ceiling mounted
Housing material	Aluminum
Electrical track connection	yes

Optical data

Louver/ diffuser	RF
Reflector	high gloss
UGR	21, 22, 23, 24, 25

Electrical data

Light source	LED
Luminaire power	9 - 34 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	No
Light source included	yes
Type of driver	DALI, ON/OFF

Information data

Net weight	0.6 - 1.2 kg
Colour	Black, White
Operating temperature range	0 ... 35
Rotated model	yes
Power and luminous flux tolerance	+/-10%

Light data

Luminaire luminous flux	775 - 4450 lm
Luminaire's luminous efficacy	86 - 138 lm/W
Light colour	White
Color rendering index	80, 90
Light distribution	DI
Beam angle	15°, 18°, 19°, 26°, 36°, 40°, 50°, 55°
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	91 %
Colour temperature	3000K, 4000K
CRI & colour temperature	830, 840, 930, 940

Certificates

Degree of protection (IP)	IP20
Impact resistance	IK03
Class of protection	I
CE	yes
HACCP+	yes

Product variants

✕

Search

Filters

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /MATTE REFLECTOR/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Beam angle	Louver/ diffuser [Optical system]	CRI & colour temperature	Colour	Type of driver	Type of family
DS010.1166.830.A000 Copy the code Open in new window	9 W	935 lm	104 lm/W	18°	RF	830	White	ON/OFF	O65 18°
DS010.1166.830.D000 Copy the code Open in new window	9 W	935 lm	104 lm/W	18°	RF	830	White	DALI	O65 18° 9W
DS010.1166.840.A000 Copy the code Open in new window	9 W	980 lm	109 lm/W	18°	RF	840	White	ON/OFF	O65 18°
DS010.1166.840.D000 Copy the code Open in new window	9 W	980 lm	109 lm/W	18°	RF	840	White	DALI	O65 18° 9W
DS010.1166.930.A000 Copy the code Open in new window	9 W	795 lm	88 lm/W	18°	RF	930	White	ON/OFF	O65 18°
DS010.1166.930.D000 Copy the code Open in new window	9 W	795 lm	88 lm/W	18°	RF	930	White	DALI	O65 18° 9W
DS010.1166.940.A000 Copy the code Open in new window	9 W	835 lm	93 lm/W	18°	RF	940	White	ON/OFF	O65 18°
DS010.1166.940.D000 Copy the code Open in new window	9 W	835 lm	93 lm/W	18°	RF	940	White	DALI	O65 18° 9W
DS010.3366.830.A000 Copy the code Open in new window	9 W	935 lm	104 lm/W	18°	RF	830	Black	ON/OFF	O65 18°
DS010.3366.830.D000 Copy the code Open in new window	9 W	935 lm	104 lm/W	18°	RF	830	Black	DALI	O65 18° 9W
DS010.3366.840.A000 Copy the code Open in new window	9 W	980 lm	109 lm/W	18°	RF	840	Black	ON/OFF	O65 18°
DS010.3366.840.D000 Copy the code Open in new window	9 W	980 lm	109 lm/W	18°	RF	840	Black	DALI	O65 18° 9W
DS010.3366.930.A000 Copy the code Open in new window	9 W	795 lm	88 lm/W	18°	RF	930	Black	ON/OFF	O65 18°
DS010.3366.930.D000 Copy the code Open in new window	9 W	795 lm	88 lm/W	18°	RF	930	Black	DALI	O65 18° 9W
DS010.3366.940.A000 Copy the code Open in new window	9 W	835 lm	93 lm/W	18°	RF	940	Black	ON/OFF	O65 18°

Displaying items: 15 of 336

of 23

per page

Family datasheet

Download

Family datasheet extended

Download

Installation manual

637.32 KB

Download

EC Declaration of conformity

Download

Photometric file

55.76 KB

Download

Download all files
