Linear
Presto LED

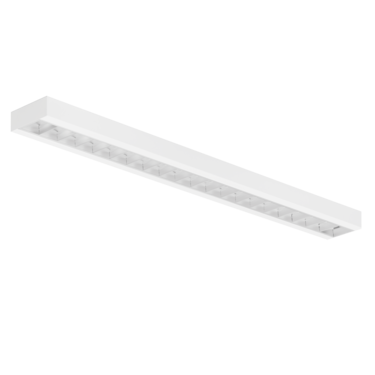

A functional LED lighting system made of steel sheet. Only for PAR-S versions: thanks to the linear joints (not in the set) the luminaire can be easily connected in line. OPAL and MPRM versions appear as separate luminaires.

Linear
Presto LED

A functional LED lighting system made of steel sheet. Only for PAR-S versions: thanks to the linear joints (not in the set) the luminaire can be easily connected in line. OPAL and MPRM versions appear as separate luminaires.

Go to the variant list (438)
LED
DI
IP20
IK03
IK04
I
yes
yes
Basic information:
Materials:

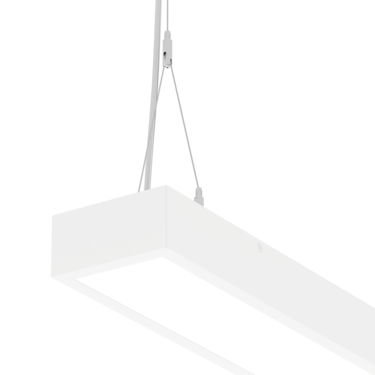

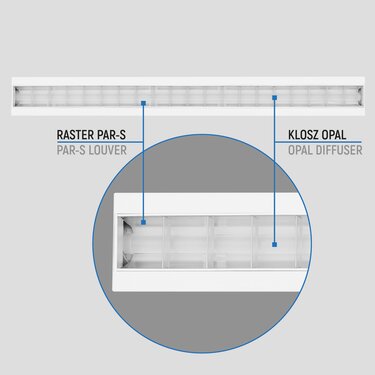

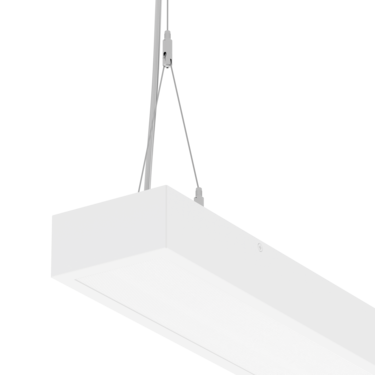

powder painted steel sheet body (standard colour: white), satin parabolic louver PAR-S with internal OPAL diffuser protecting LEDs or diffusers: OPAL or MPRM. NOTE FOR PAR-S VERSIONS: the cable for connecting into a lighting line is not supplied with the luminaires. TH5 wiring blocks are located at both ends of the luminaire. Connecting the luminaires in a line should be done with an external cable led outside the adjacent luminaires.
Accessories:

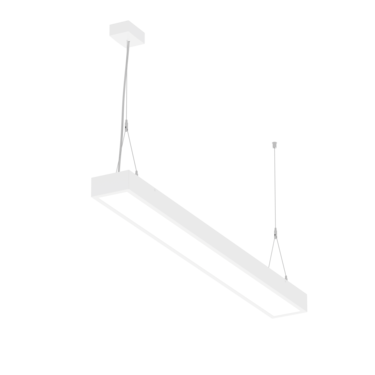

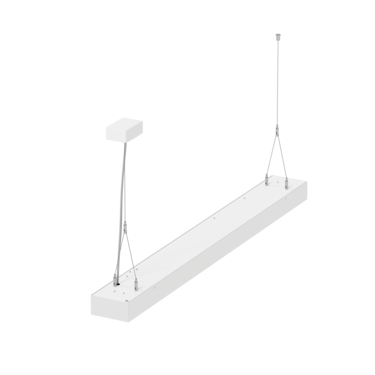

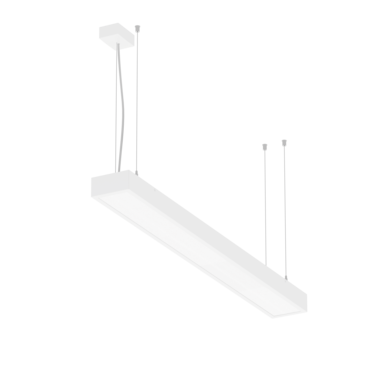

simple and electric suspensions, invisible linear joints (only for PAR-S versions), end caps (only for PAR-S versions)
Installation:
suspended, surface mounted (only DI versions)
Power:
220 ... 240 V
Categorization:
Type of luminaire:
Linear
Application:
Production hall, Office, Conference room, Corridor and staircase, Commercial premises, Lecture hall, Classroom, Computer lab, Cloak room, Security, Social room
Mounting type:
Ceiling mounted, Pendant
Technical data:
Luminaire power:
30 - 38 W
Luminaire luminous flux:
2815 - 4830 lm
Length:
1145 mm, 1435 mm
See other technical data
Technical data Product variants Download Accessories
Technical data
Mechanical data
Type of installation Universal
Housing material Steel sheet
Designed for light-line yes
Optical data
Louver/ diffuser MPOP, MPRM, OPAL, PAR
Louver material Aluminum
Reflector high gloss
UGR 19
Electrical data
Light source LED
Luminaire power 30 - 38 W
Number of light sources 1
Type of equipment AC
Voltage rating 220 ... 240 V
Light source included yes
Power factor 0.96
Type of driver DALI, ON/OFF
Emergency module option
Connection block 5 PIN
Information data
Net weight 2 - 3 kg

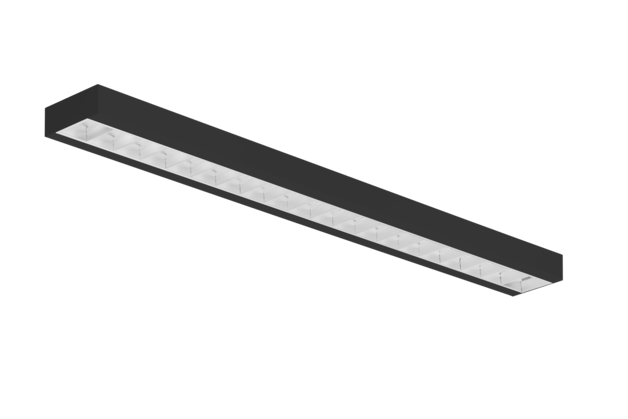

Colour Black, Grey, White
Operating temperature range -15 ... 40
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 2815 - 4830 lm
Luminaire's luminous efficacy 91 - 130 lm/W
Luminaire's luminous efficiency 73 - 78
Light colour White
Color rendering index 80, 90
Direct-/indirect independently controlled no
Light distribution Wide beam
Light distribution DI
Class of luminaire I
MacAdam SDCM 3
Lifetime L80B10 @25°C 100.000 h
Lifetime L90B10 @25°C 64.000 h
Lamp Lumen Maintenance Factor (after 60 000h) 85 %
Colour temperature 3000K, 4000K
CRI & colour temperature 830, 840, 930, 940
Certificates
Degree of protection (IP) IP20
Impact resistance IK03, IK04
Class of protection I
Power Flicker =< 3%
CE yes
HACCP+ yes
Product variants
✕
Search
Filters
How does the product indexing system work?
AA
002
.
22
11
.
830
.
D
0
0
0
Family
AA ALTO LED
AB ALTO WALL
Type
001 e.g.: 545 mm
002 e.g.: 1085 mm
Colour
11 WHITE RAL 9016
12 WHITE RAL 9010
22 GREY RAL 9006
33 BLACK RAL 9005
44 ANTHRACITE RALBG 452
45 ANTHRACITE RAL 7016
99 OTHER - PERSONALIZATION
Optical system
00 EMPTY
11 OPAL /MILK DIFFUSER/
22 MPRM /MICROPRISMATIC DIFFUSER/
23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/
24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/
33 PAR /PARABOLIC LOUVER/
34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/
44 mPARM /PARABOLIC MINI LOUVER METALLIZED/
45 PARW /PARABOLIC LOUVER WHITE/
46 mPARB /PARABOLIC MINI LOUVER BLACK/
66 RF /REFLECTOR/
67 RM /MATTE REFLECTOR/
68 RW /REFLECTOR WHITE/
77 LNS /LENS/
88 SH MAT /MATTE TEMPERED GLASS/
89 SH /TEMPERED GLASS/
CRI / Colour temp.
827
830 CRI ≥ 80; CCT 3000K
835 CRI ≥ 80; CCT 3500K
840 CRI ≥ 80; CCT 4000K
850 CRI ≥ 80; CCT 5000K
857 CRI ≥ 80; CCT 5700K
865 CRI ≥ 80; CCT 6500K
8TW CRI ≥ 80; Tunable white
927 CRI ≥ 90; CCT 2700K
930 CRI ≥ 90; CCT 3000K
935 CRI ≥ 90; CCT 3500K
940 CRI ≥ 90; CCT 4000K
950 CRI ≥ 90; CCT 5000K
957 CRI ≥ 90; CCT 5700K
965 CRI ≥ 90; CCT 6500K
9TW CRI ≥ 90; Tunable white
RGB RGB
Driver
A ON/OFF /WITHOUT REGULATION/
D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/
H HO /DRIVER WITH PREDEFINED SETTING/
E HE /DRIVER WITH PREDEFINED SETTING/
F HO DALI /DRIVER WITH PREDEFINED SETTING/
G HE DALI /DRIVER WITH PREDEFINED SETTING/
K DSI
I CF /CORRIDOR FUNCTION - STEP DIMMING/
C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/
X DMX
S sDIMM
V 1-10V /ADJUSTABLE/
Emergency module
0 WITHOUT EMERGENCY MODULE
1 EM1H ST /SELFTEST/
2 EM3H ST /SELFTEST/
3 EM1H BASIC
4 EM3H BASIC
5 EM1H PRO /DALI/
6 EM3H PRO /DALI/
Through wiring
0 WITHOUT THROUGH WIRING
1 TH3 /3-PHASE THROUGH WIRING/
2 TH5 /5-PHASE THROUGH WIRING/
3 TH7 /7-PHASE THROUGH WIRING/
4 WI /WIELAND/
5 WI TH /THROUGH WIRING/
Motion sensor
0 WITHOUT MOTION SENSOR
1 MW PRO /PASSIVE INFRARED - STEP DIMM/
2 PIR /INFRARED/
Technical data
Dimensions
Filtering by parameters
Parameters
Luminaire power
Show products
Luminous flux
Show products
CRI / Colour temp.
Select all
Reset
Show products
Optical system
Select all
Reset
Show products
Driver
Select all
Reset
Show products
Emergency module
Select all
Reset
Show products
Wiring
Select all
Reset
Show products
Colour
Select all
Reset
Show products
Length
Show products
Type of family
Select all
Reset
Show products
Index
Luminaire power
Luminaire luminous flux
Luminaire's luminous efficacy
Louver/ diffuser
[Optical system]
CRI & colour temperature
Colour
Type of driver
Emergency module
Through wiring
Type of family
CC001.1133.830.A000
Copy the code
Open in new window
30 W 3700 lm 123 lm/W PAR 830
White
 ON/OFF No No DI 1145mm
CC001.1133.830.A060
Copy the code
Open in new window
30 W 3700 lm 123 lm/W PAR 830
White
 ON/OFF No LW DI 1145mm
CC001.1133.830.A160
Copy the code
Open in new window
30 W 3700 lm 123 lm/W PAR 830
White
 ON/OFF EM1H ST LW DI 1145mm
CC001.1133.830.A260
Copy the code
Open in new window
30 W 3700 lm 123 lm/W PAR 830
White
 ON/OFF EM3H ST LW DI 1145mm
CC001.1133.830.D060
Copy the code
Open in new window
30 W 3700 lm 123 lm/W PAR 830
White
 DALI No LW DI 1145mm
CC001.1133.830.D160
Copy the code
Open in new window
30 W 3700 lm 123 lm/W PAR 830
White
 DALI EM1H ST LW DI 1145mm
CC001.1133.830.D260
Copy the code
Open in new window
30 W 3700 lm 123 lm/W PAR 830
White
 DALI EM3H ST LW DI 1145mm
CC001.1133.840.A060
Copy the code
Open in new window
30 W 3860 lm 129 lm/W PAR 840
White
 ON/OFF No LW DI 1145mm
CC001.1133.840.A160
Copy the code
Open in new window
30 W 3860 lm 129 lm/W PAR 840
White
 ON/OFF EM1H ST LW DI 1145mm
CC001.1133.840.A260
Copy the code
Open in new window
30 W 3860 lm 129 lm/W PAR 840
White
 ON/OFF EM3H ST LW DI 1145mm
CC001.1133.840.D060
Copy the code
Open in new window
30 W 3860 lm 129 lm/W PAR 840
White
 DALI No LW DI 1145mm
CC001.1133.840.D160
Copy the code
Open in new window
30 W 3860 lm 129 lm/W PAR 840
White
 DALI EM1H ST LW DI 1145mm
CC001.1133.840.D260
Copy the code
Open in new window
30 W 3860 lm 129 lm/W PAR 840
White
 DALI EM3H ST LW DI 1145mm
CC001.1133.930.A060
Copy the code
Open in new window
30 W 3450 lm 115 lm/W PAR 930
White
 ON/OFF No LW DI 1145mm
CC001.1133.930.A160
Copy the code
Open in new window
30 W 3450 lm 115 lm/W PAR 930
White
 ON/OFF EM1H ST LW DI 1145mm
Displaying items: 15 of 438
of 30
15
15
50
100

per page

Projects
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
837.98 KB
Download
EC Declaration of conformity
Download
Photometric file
10.25 KB
Download
Download all files
Accessories
Structural elements
Accessories
Presto LED End cap
Electric elements
Accessories
Electric suspension kit
Accessories
Electric suspension kit - Y
Connecting elements
Accessories
Presto LED Linear joining set
Installation elements
Accessories
Suspension kit 1x
Accessories
Suspension kit 1x - Y
