Technical data Product variants Download
Modular

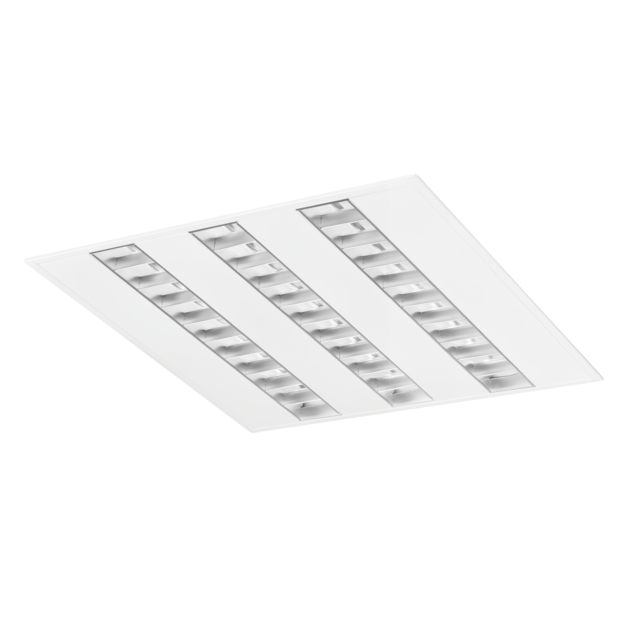

Quaset LED
A modern LED luminaires with high optical and technical parameters designed for mounting into suspended ceiling. Characterized by symmetrically placed aluminum louvers.
Modular
Quaset LED
A modern LED luminaires with high optical and technical parameters designed for mounting into suspended ceiling. Characterized by symmetrically placed aluminum louvers.
Go to the variant list (72)
LED
DI
IP20
IK03
I
yes
yes
Basic information:
Materials:
Powder painted steel sheet body in white color, parabolic (PAR-S) louver made of satin aluminum of high purity.
Installation:
Into modular ceiling 600x600 with a visible supported structure or into plaster cardboard ceiling.
Power:
220 ... 240 V
Categorization:
Type of luminaire:
Modular
Application:
Production hall, Office, Conference room, Corridor and staircase, Commercial premises, Lecture hall, Classroom, Computer lab, Cloak room, Security, Social room
Mounting type:
Modular recessed
Technical data:
Luminaire power:
14 - 45 W
Luminaire luminous flux:
1450 - 5860 lm
Length:
596 mm, 1195 mm
See other technical data
Description of the product's family
Technical data
Mechanical data
Type of installation Recessed
Housing material Steel sheet
Designed for light-line yes
Optical data
Louver/ diffuser OPAL, PAR
Louver material Aluminum
Reflector high gloss
UGR 16, 18
Electrical data
Light source LED
Luminaire power 14 - 45 W
Type of equipment AC, CAS
Voltage rating 220 ... 240 V
Light source included yes
Type of driver 1-10V, CAS, DALI, ON/OFF, sDIMM
Emergency module option
Motion sensor option
Information data
Net weight 3.2 - 3.7 kg
Colour Black, White
Operating temperature range -15 ... 40
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 1450 - 5860 lm
Luminaire's luminous efficacy 104 - 130 lm/W
Light colour White
Color rendering index 80, 90
Light distribution Medium-stream
Light distribution DI
Class of luminaire I
MacAdam SDCM 3
Lifetime L80B10 @25°C 100.000 h
Lifetime L90B10 @25°C 64.000 h
Lamp Lumen Maintenance Factor (after 60 000h) 85 %
Colour temperature 3000K, 4000K, 5000 K, 6500 K
CRI & colour temperature 830, 840, 850, 865, 930, 940, 965
Certificates
Degree of protection (IP) IP20
Impact resistance IK03
Class of protection I
CE yes
HACCP+ yes
Product variants
✕
Search
Filters
How does the product indexing system work?
AA
002
.
22
11
.
830
.
D
0
0
0
Family
AA ALTO LED
AB ALTO WALL
Type
001 e.g.: 545 mm
002 e.g.: 1085 mm
Colour
11 WHITE RAL 9016
12 WHITE RAL 9010
22 GREY RAL 9006
33 BLACK RAL 9005
44 ANTHRACITE RALBG 452
45 ANTHRACITE RAL 7016
99 OTHER - PERSONALIZATION
Optical system
00 EMPTY
11 OPAL /MILK DIFFUSER/
22 MPRM /MICROPRISMATIC DIFFUSER/
23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/
24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/
33 PAR /PARABOLIC LOUVER/
34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/
44 mPARM /PARABOLIC MINI LOUVER METALLIZED/
45 PARW /PARABOLIC LOUVER WHITE/
46 mPARB /PARABOLIC MINI LOUVER BLACK/
66 RF /REFLECTOR/
67 RM /MATTE REFLECTOR/
68 RW /REFLECTOR WHITE/
77 LNS /LENS/
88 SH MAT /MATTE TEMPERED GLASS/
89 SH /TEMPERED GLASS/
CRI / Colour temp.
827
830 CRI ≥ 80; CCT 3000K
835 CRI ≥ 80; CCT 3500K
840 CRI ≥ 80; CCT 4000K
850 CRI ≥ 80; CCT 5000K
857 CRI ≥ 80; CCT 5700K
865 CRI ≥ 80; CCT 6500K
8TW CRI ≥ 80; Tunable white
927 CRI ≥ 90; CCT 2700K
930 CRI ≥ 90; CCT 3000K
935 CRI ≥ 90; CCT 3500K
940 CRI ≥ 90; CCT 4000K
950 CRI ≥ 90; CCT 5000K
957 CRI ≥ 90; CCT 5700K
965 CRI ≥ 90; CCT 6500K
9TW CRI ≥ 90; Tunable white
RGB RGB
Driver
A ON/OFF /WITHOUT REGULATION/
D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/
H HO /DRIVER WITH PREDEFINED SETTING/
E HE /DRIVER WITH PREDEFINED SETTING/
F HO DALI /DRIVER WITH PREDEFINED SETTING/
G HE DALI /DRIVER WITH PREDEFINED SETTING/
K DSI
I CF /CORRIDOR FUNCTION - STEP DIMMING/
C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/
X DMX
S sDIMM
V 1-10V /ADJUSTABLE/
Emergency module
0 WITHOUT EMERGENCY MODULE
1 EM1H ST /SELFTEST/
2 EM3H ST /SELFTEST/
3 EM1H BASIC
4 EM3H BASIC
5 EM1H PRO /DALI/
6 EM3H PRO /DALI/
Through wiring
0 WITHOUT THROUGH WIRING
1 TH3 /3-PHASE THROUGH WIRING/
2 TH5 /5-PHASE THROUGH WIRING/
3 TH7 /7-PHASE THROUGH WIRING/
4 WI /WIELAND/
5 WI TH /THROUGH WIRING/
6 LW /THROUGH WIRING/
Motion sensor
0 WITHOUT MOTION SENSOR
1 MW PRO /PASSIVE INFRARED - STEP DIMM/
2 PIR /INFRARED/
Technical data
Dimensions
Filtering by parameters
Parameters
Luminaire power
Show products
Luminous flux
Show products
CRI / Colour temp.
Select all
Reset
Show products
Optical system
Select all
Reset
Show products
Driver
Select all
Reset
Show products
Emergency module
Select all
Reset
Show products
Wiring
Select all
Reset
Show products
Motion sensor
Select all
Reset
Show products
Colour
Select all
Reset
Show products
Length
Show products
Width
Show products
Type of family
Select all
Reset
Show products
Index
Luminaire power
Luminaire luminous flux
Luminaire's luminous efficacy
Louver/ diffuser
[Optical system]
CRI & colour temperature
Colour
Type of driver
Emergency module
Type of family
CD001.1133.830.A000
Copy the code
Open in new window
45 W 5560 lm 124 lm/W PAR 830
