Architectural
Tubo NT IP65 LED 50° 21W 2030lm 840 RF White
Ceiling mounted LED luminaire with subtle design and ingress protection rating IP65. Possibility of painting in any RAL colour.
Architectural
Tubo NT IP65 LED 50° 21W 2030lm 840 RF White
Ceiling mounted LED luminaire with subtle design and ingress protection rating IP65. Possibility of painting in any RAL colour.
LED
ON/OFF
DI
IP65
IK06
I
yes
yes
Basic information:
Index:
HI005.1166.840.A000
EAN:
5904349188809
Installation:
Ceiling mounted
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Architectural
Application:
Sport facilities, Arcade, Facade
Mounting type:
Ceiling mounted
Technical data Download
Technical data
Tubo NT IP65 LED 50° 21W 2030lm 840 RF White
PRODUCT CODE
HI005.1166.840.A000
Copy the code
PRODUCT EAN
5904349188809
Copy the EAN code
Mechanical data
Type of installation Ceiling mounted
Housing material Aluminum
Optical data
Louver/ diffuser RF
Reflector high gloss
UGR 20
Electrical data
Light source LED
Luminaire power 21 W
Number of light sources 1
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 1 kg
Colour White
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 2030 lm
Luminaire's luminous efficacy 97 lm/W
Light colour White
Color rendering index 80

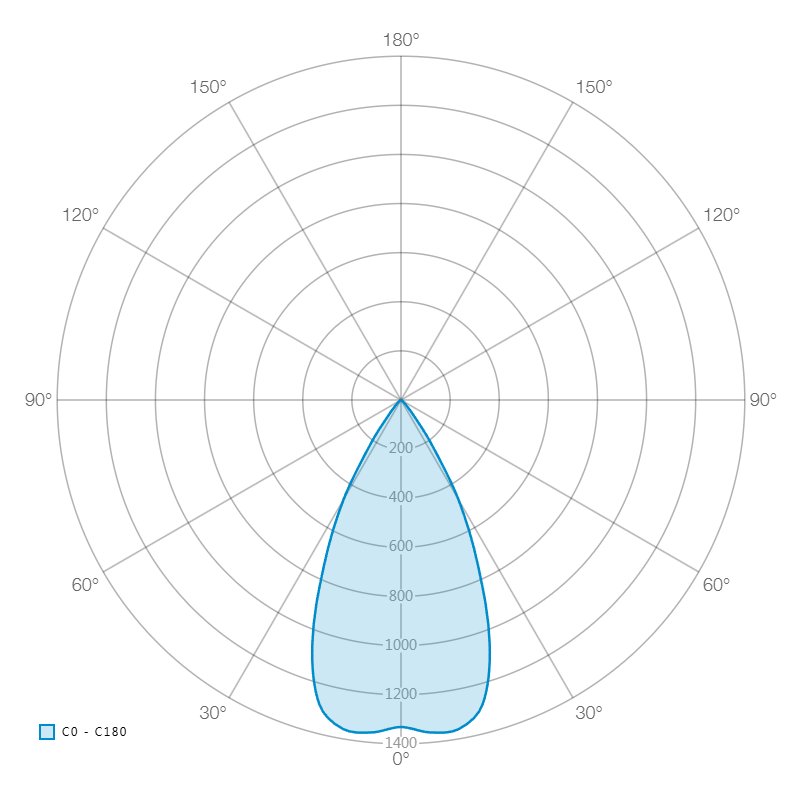

Light distribution DI
Beam angle 50°
MacAdam SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h) 91 %
Colour temperature 4000K
CRI & colour temperature 840
Certificates
Degree of protection (IP) IP65
Impact resistance IK06
Class of protection I
CE yes
HACCP+ yes
Dimensions
H F
232 mm 80 mm
H - Height / Depth
F - Outer diameter
