Vigo LED is a modern, high-efficiency linear luminaire designed for both individual installation and continuous light-line configurations. Its compact, lightweight construction minimizes aluminum use while ensuring excellent mechanical stability and thermal performance. A wide selection of optical variants allows precise adaptation to various applications – from offices and commercial spaces to private interiors. The modular system enables flexible arrangements tailored to architectural and functional requirements.
Constructed from a durable aluminum profile with PC optics, Vigo LED provides uniform light distribution and high visual comfort. Optional customizations include housing color, raster or diffuser type, and the integration of sensors or control modules on request. Combining performance, sustainability, and design flexibility, Vigo LED offers a comprehensive solution for contemporary lighting environments.
Vigo LED is a modern, high-efficiency linear luminaire designed for both individual installation and continuous light-line configurations. Its compact, lightweight construction minimizes aluminum use while ensuring excellent mechanical stability and thermal performance. A wide selection of optical variants allows precise adaptation to various applications – from offices and commercial spaces to private interiors. The modular system enables flexible arrangements tailored to architectural and functional requirements.
Constructed from a durable aluminum profile with PC optics, Vigo LED provides uniform light distribution and high visual comfort. Optional customizations include housing color, raster or diffuser type, and the integration of sensors or control modules on request. Combining performance, sustainability, and design flexibility, Vigo LED offers a comprehensive solution for contemporary lighting environments.
Suspended, surface mounted
| Housing material | Aluminum |
| Louver/ diffuser | OPAL |
| Diffuser colour | White |
| Diffuser material | Opal/mat plastic |
| UGR | 24 |
| Light source | LED |
| Luminaire power | 15 W |
| Type of equipment | AC |
| Voltage rating | 220 ... 240 V |
| Through wiring | No |
| Type of driver | ON/OFF |
| Emergency module | No |
| Motion sensor | MW |
| Net weight | 1 kg |
| Colour | White |
| Power and luminous flux tolerance | +/-10% |
| Luminaire luminous flux | 1850 lm |
| Luminaire's luminous efficacy | 123 lm/W |
| Color rendering index | 80 |

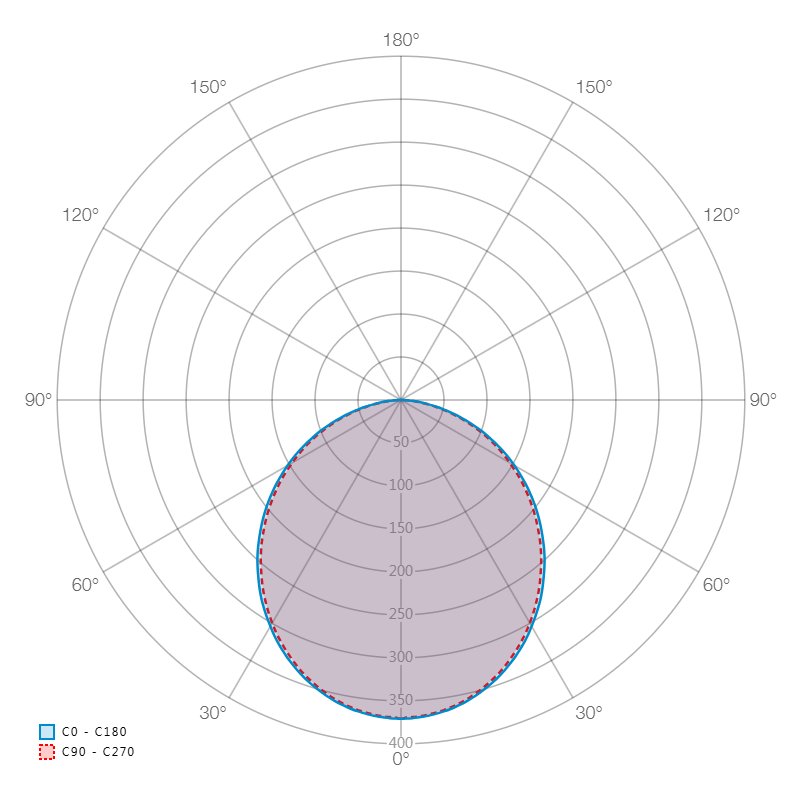

| Light distribution | DI |
| MacAdam | SDCM 3 |
| Lifetime L80B10 @25°C | 100.000 h |
| Lifetime L90B10 @25°C | 64.000 h |
| Colour temperature | 4000K |
| CRI & colour temperature | 840 |
| Degree of protection (IP) | IP20 |
| Impact resistance | IK04 |
| Class of protection | I |
| Light source protection | yes |
| CE | yes |
| L | W | H |
|---|---|---|
| 560 mm | 43 mm | 54 mm |
