Vigo Spot LED MAX

The VIGO SPOT LED MAX is a high-output track-mounted spotlight designed for lighting large and high-ceiling interiors. It is particularly suitable for commercial spaces, transport facilities and intensive circulation areas where high luminous flux and flexible directional lighting are required. Track instalation allows for ease of use and quick changes. Rotation range 0° - 330°.

Optional customizations include housing color, raster type. VIGO SPOT LED MAX combined with other VIGO LED series luminaires offers a comprehensive solution for modern lighting environments.

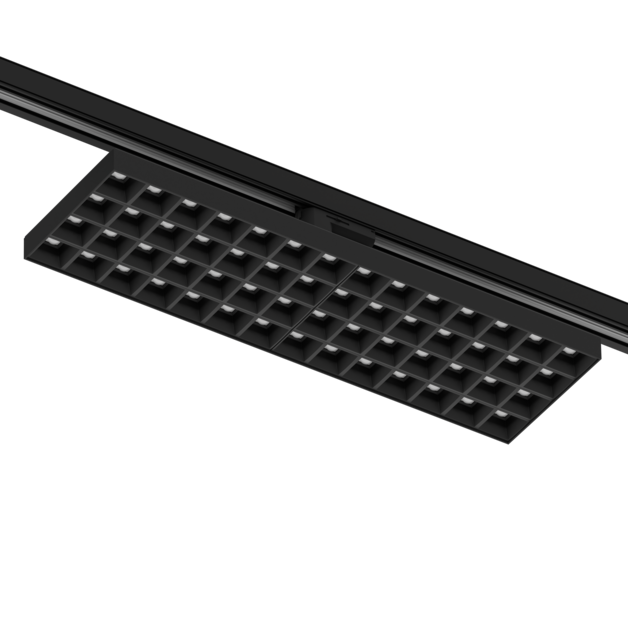

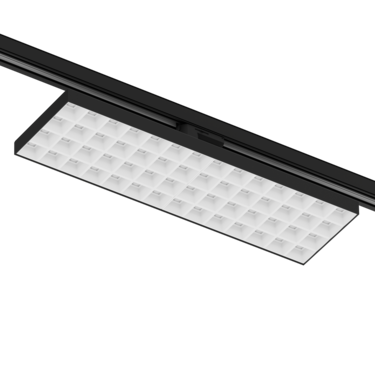

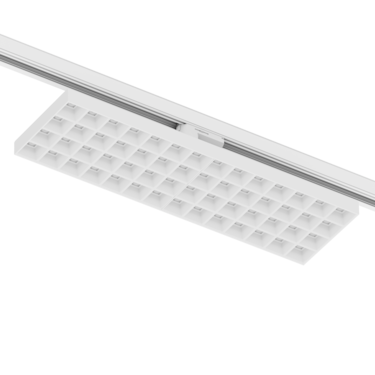

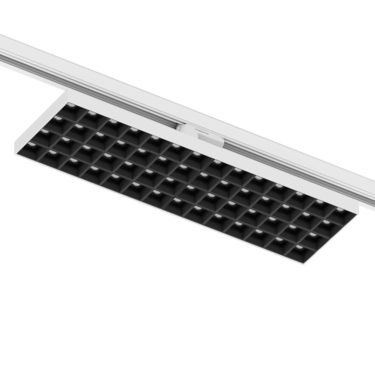

Optical systems made of polycarbonate in the form of black PRS-B and white PRS-W parabolic louvers providing light distribution: 65°, 80°.

Spotlights and electrical tracks

Vigo Spot LED MAX

The VIGO SPOT LED MAX is a high-output track-mounted spotlight designed for lighting large and high-ceiling interiors. It is particularly suitable for commercial spaces, transport facilities and intensive circulation areas where high luminous flux and flexible directional lighting are required. Track instalation allows for ease of use and quick changes. Rotation range 0° - 330°.

Optional customizations include housing color, raster type. VIGO SPOT LED MAX combined with other VIGO LED series luminaires offers a comprehensive solution for modern lighting environments.

Optical systems made of polycarbonate in the form of black PRS-B and white PRS-W parabolic louvers providing light distribution: 65°, 80°.

Go to the variant list (98)

LED

IP20

IK04

yes

yes

Basic information:

Materials:

Electrostatically painted aluminum (standard colors: white, grey, black), parabolic louver made with policarbonate: black PRS-B, white PRS-W

Installation:

for electrical track

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Spotlights and electrical tracks

Application:

Office, Conference room, Corridor and staircase, Reception, Commercial premises, Lecture hall, Classroom, Computer lab

Mounting type:

Spotlight

Technical data:

Luminaire power:

32 - 55 W

Luminaire luminous flux:

5130 - 10025 lm

Length:

562 mm

Louver/ diffuser:

PRS-B, PRS-W

CRI / Colour temp.:

830, 840, 940

Colour:

Black, Grey, White

See other technical data

Description of the product's family

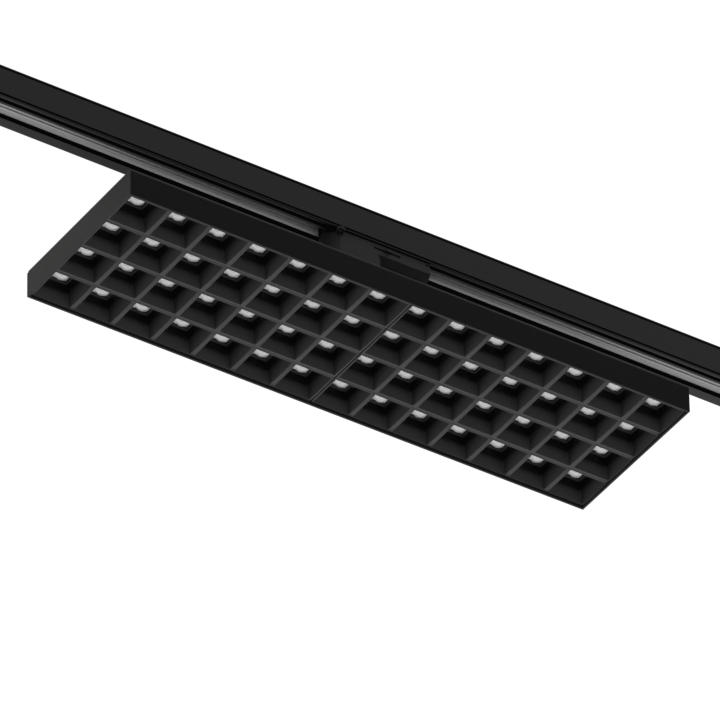

Range: 0° - 330°

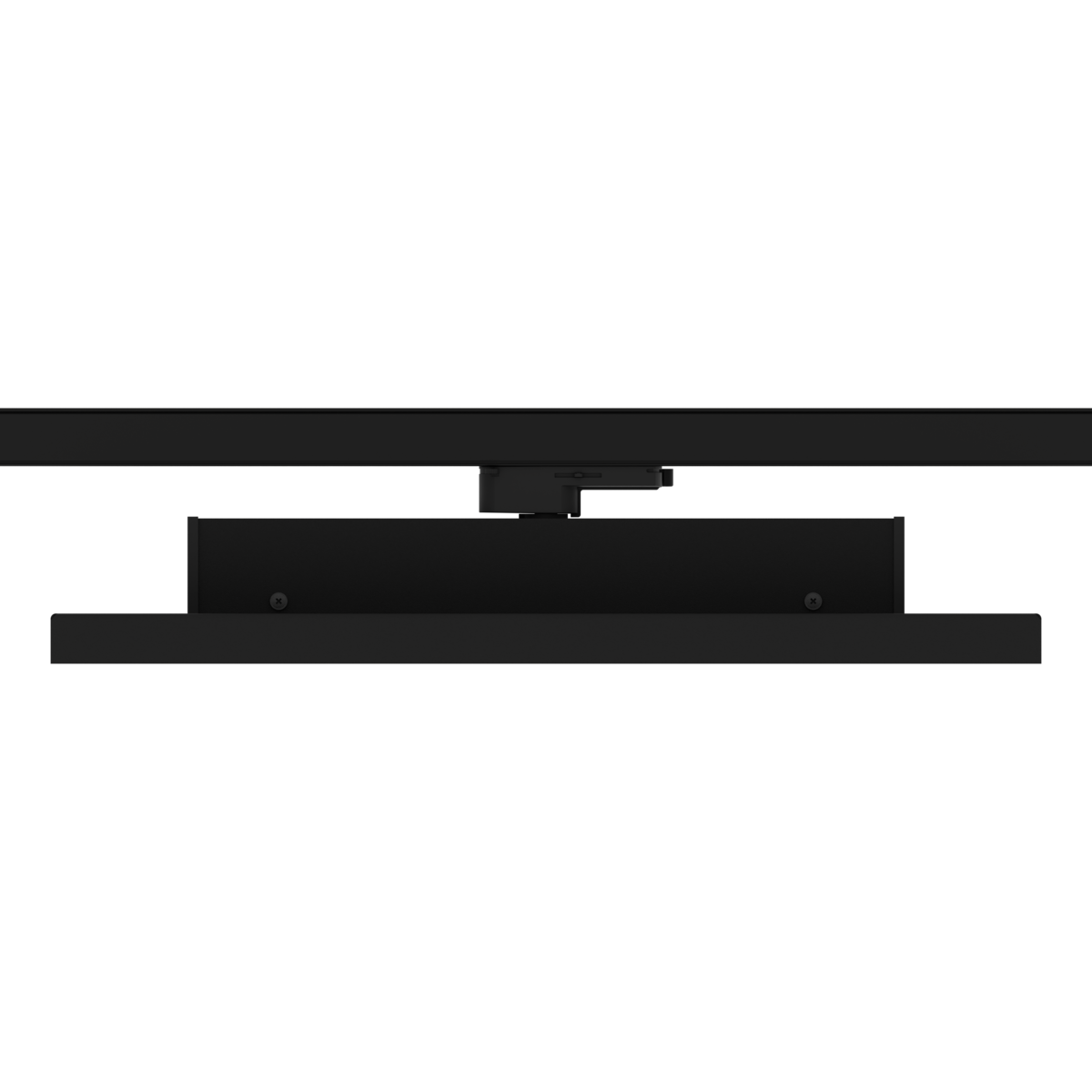

Side view - DALI version, black

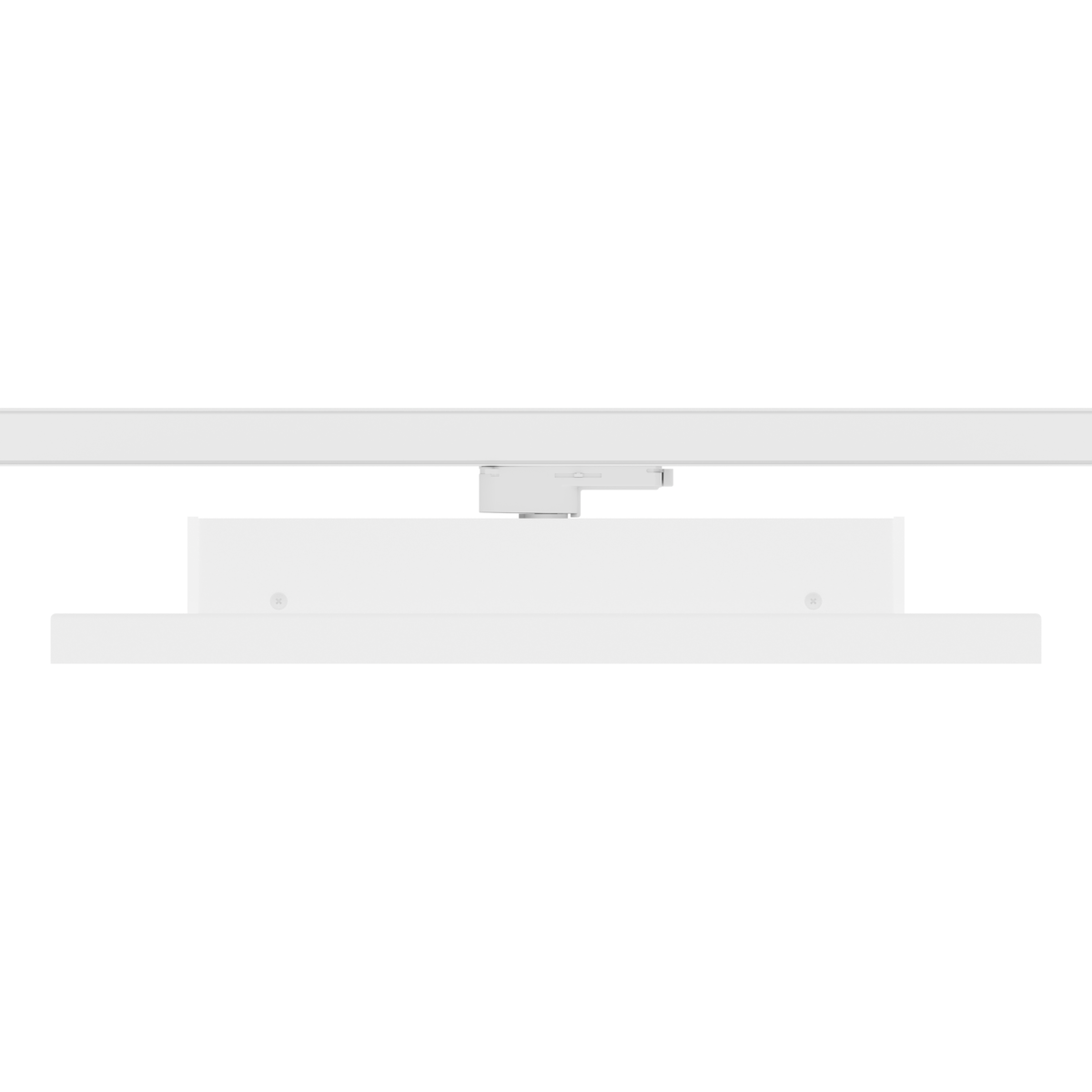

Side view - DALI version, white

Technical data

Mechanical data

Type of installation	for tracks
Housing material	Aluminum
Electrical track connection	yes

Optical data

Louver/ diffuser	PRS-B, PRS-W
Diffuser colour	Transparent
Diffuser material	Transparent plastic
Louver material	Plastic
UGR	14, 15, 16, 17, 18, 20

Electrical data

Light source	LED
Luminaire power	32 - 55 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	No
Type of driver	DALI, ON/OFF

Information data

Net weight	2.85 - 3 kg
Colour	Black, Grey, White
Power and luminous flux tolerance	+/-10%

Light data

Luminaire luminous flux	5130 - 10025 lm
Luminaire's luminous efficacy	158 - 188 lm/W
Color rendering index	80, 90
Light distribution	DI
MacAdam	SDCM 3
Lifetime L80B10 @25°C	100.000 h
Lifetime L90B10 @25°C	64.000 h
Colour temperature	3000K, 4000K
CRI & colour temperature	830, 840, 940

Certificates

Degree of protection (IP)	IP20
Impact resistance	IK04
Class of protection	I, II
CE	yes
HACCP+	yes

Product variants

✕

Search

Filters

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

51 PRS-M /PARABOLIC SQUARE LOUVER METALLIZED MAT/

52 PRS-W /PARABOLIC SQUARE LOUVER WHITE/

53 PRS-B /PARABOLIC SQUARE LOUVER BLACK/

54 PRC-M /PARABOLIC CIRCLE LOUVER METALLIZED MAT/

55 PRC-W /PARABOLIC CIRCLE LOUVER WHITE/

56 PRC-B /PARABOLIC CIRCLE LOUVER BLACK/

61 RMO /REFLECTOR MATTE + OPAL DIFFUSER/

62 RMM /REFLECTOR MATTE + MICROPRISMATIC DIFFUSER/

65 RG /REFLECTOR GOLD/

66 RF /REFLECTOR/

67 RM /MATTE REFLECTOR/

68 RW /REFLECTOR WHITE/

69 RB /REFLECTOR BLACK/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

6 LW /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

3 PIR DALI

4 PIR DALI SA

5 PIR CAS

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Louver/ diffuser [Optical system]	Optics	CRI & colour temperature	Colour	Type of driver	Type of family
IM001.1152.830.A000 Copy the code Open in new window	32 W	5625 lm	176 lm/W	PRS-W	65°	830	White	ON/OFF	65° MP
IM001.1152.830.D000 Copy the code Open in new window	32 W	5625 lm	176 lm/W	PRS-W	65°	830	White	DALI	65° MP
IM001.1152.840.A000 Copy the code Open in new window	32 W	5955 lm	186 lm/W	PRS-W	65°	840	White	ON/OFF	65° MP
IM001.1152.840.D000 Copy the code Open in new window	32 W	5955 lm	186 lm/W	PRS-W	65°	840	White	DALI	65° MP
IM001.1153.830.A000 Copy the code Open in new window	32 W	5230 lm	163 lm/W	PRS-B	65°	830	White	ON/OFF	65° MP
IM001.1153.830.D000 Copy the code Open in new window	32 W	5230 lm	163 lm/W	PRS-B	65°	830	White	DALI	65° MP
IM001.1153.840.A000 Copy the code Open in new window	32 W	5535 lm	173 lm/W	PRS-B	65°	840	White	ON/OFF	65° MP
IM001.1153.840.D000 Copy the code Open in new window	32 W	5535 lm	173 lm/W	PRS-B	65°	840	White	DALI	65° MP
IM001.2252.830.A000 Copy the code Open in new window	32 W	5625 lm	176 lm/W	PRS-W	65°	830	Grey	ON/OFF	65° MP
IM001.2252.830.D000 Copy the code Open in new window	32 W	5625 lm	176 lm/W	PRS-W	65°	830	Grey	DALI	65° MP
IM001.2252.840.A000 Copy the code Open in new window	32 W	5955 lm	186 lm/W	PRS-W	65°	840	Grey	ON/OFF	65° MP
IM001.2252.840.D000 Copy the code Open in new window	32 W	5955 lm	186 lm/W	PRS-W	65°	840	Grey	DALI	65° MP
IM001.2253.830.A000 Copy the code Open in new window	32 W	5230 lm	163 lm/W	PRS-B	65°	830	Grey	ON/OFF	65° MP
IM001.2253.830.D000 Copy the code Open in new window	32 W	5230 lm	163 lm/W	PRS-B	65°	830	Grey	DALI	65° MP
IM001.2253.840.A000 Copy the code Open in new window	32 W	5535 lm	173 lm/W	PRS-B	65°	840	Grey	ON/OFF	65° MP
