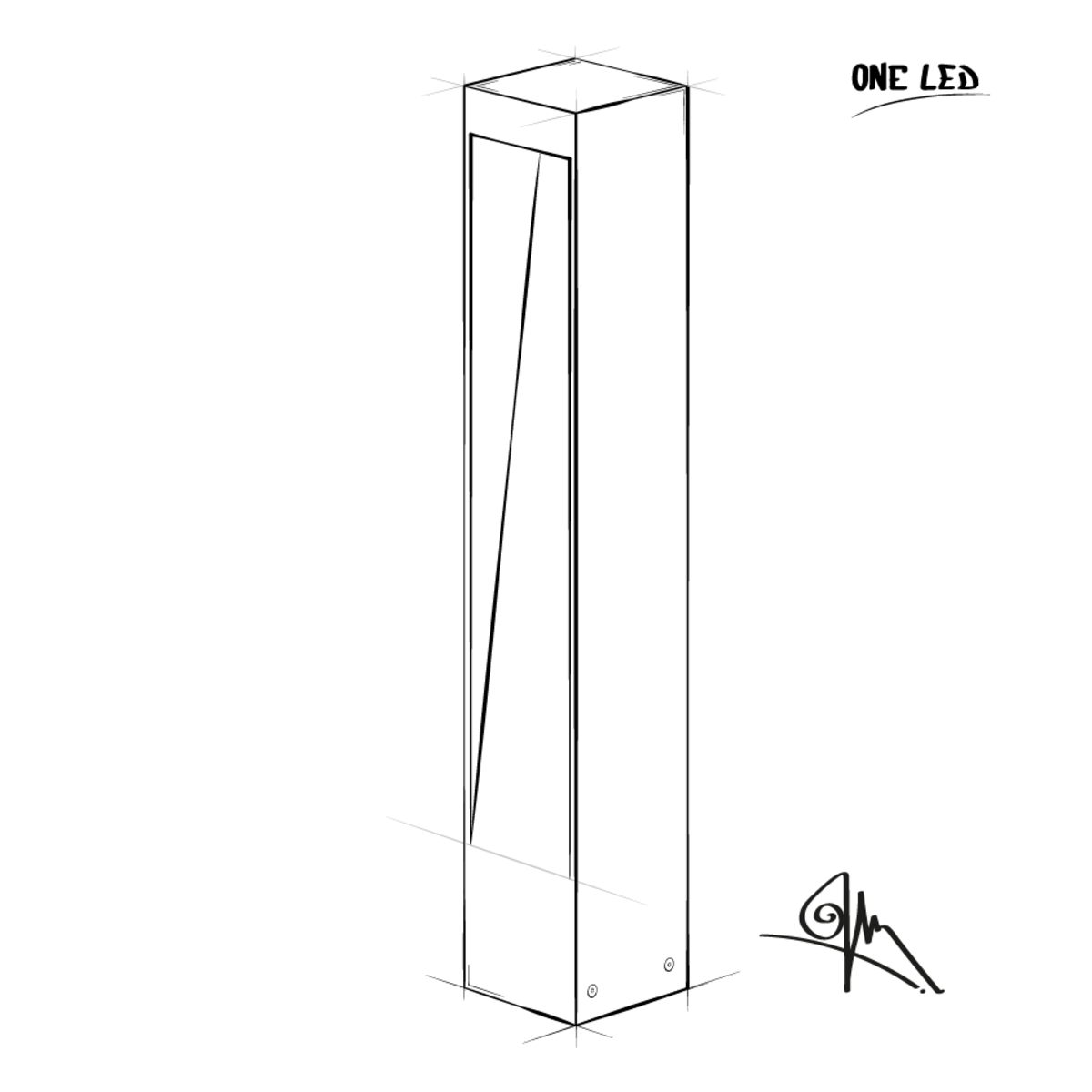

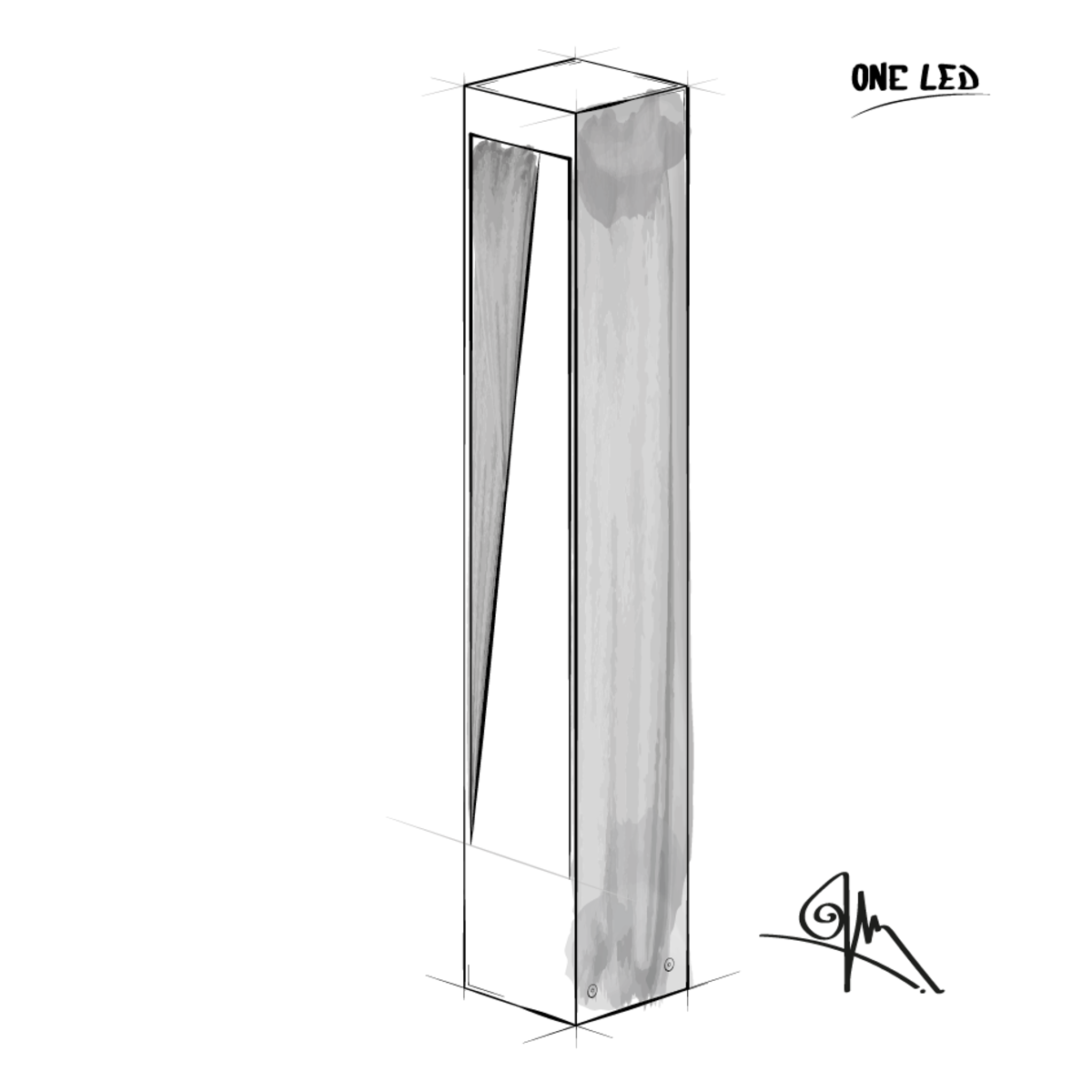

One LED - PXF Lighting

Product variants

Filters

How does the product indexing system work?

002

830

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Couleur

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Système optique

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /MATTE REFLECTOR/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Temp. de couleur

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Alimentation

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Capteur de mouvement

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Parameters

Index	Luminaire power	Flux lumineux du luminaire	Efficacité lumineuse du luminaire	Raster / diaphragme [Système optique]	Temperatu re de couleur / CRI	Couleur	Type of driver	Type de famille
HT001.4489.830.A000 Copy the code Open in new window	5.5 W	230 lm	42 lm/W	SH	830	Anthracite	ON/OFF	5W 600mm
HT001.4489.840.A000 Copy the code Open in new window	5.5 W	240 lm	44 lm/W	SH	840	Anthracite	ON/OFF	5W 600mm
HT002.4489.830.A000 Copy the code Open in new window	9.5 W	440 lm	46 lm/W	SH	830	Anthracite	ON/OFF	10W 600mm
HT002.4489.840.A000 Copy the code Open in new window	9.5 W	460 lm	48 lm/W	SH	840	Anthracite	ON/OFF	10W 600mm
HT003.4489.830.A000 Copy the code Open in new window	5.5 W	230 lm	42 lm/W	SH	830	Anthracite	ON/OFF	5W 900mm
HT003.4489.840.A000 Copy the code Open in new window	5.5 W	240 lm	44 lm/W	SH	840	Anthracite	ON/OFF	5W 900mm
HT004.4489.830.A000 Copy the code Open in new window	9.5 W	440 lm	46 lm/W	SH	830	Anthracite	ON/OFF	10W 900mm
HT004.4489.840.A000 Copy the code Open in new window	9.5 W	460 lm	48 lm/W	SH	840	Anthracite	ON/OFF	10W 900mm

Index	Luminaire power	Flux lumineux du luminaire	Longueur [L]	Largeur [W]	Hauteur / profondeur [H]
HT001.4489.830.A000 Copy the code Open in new window	5.5 W	230 lm	100 mm	100 mm	600 mm
HT001.4489.840.A000 Copy the code Open in new window	5.5 W	240 lm	100 mm	100 mm	600 mm
HT002.4489.830.A000 Copy the code Open in new window	9.5 W	440 lm	100 mm	100 mm	600 mm
HT002.4489.840.A000 Copy the code Open in new window	9.5 W	460 lm	100 mm	100 mm	600 mm
HT003.4489.830.A000 Copy the code Open in new window	5.5 W	230 lm	100 mm	100 mm	900 mm
HT003.4489.840.A000 Copy the code Open in new window	5.5 W	240 lm	100 mm	100 mm	900 mm
HT004.4489.830.A000 Copy the code Open in new window	9.5 W	440 lm	100 mm	100 mm	900 mm
HT004.4489.840.A000 Copy the code Open in new window	9.5 W	460 lm	100 mm	100 mm	900 mm

Displaying items: 8 of 8

of 1

per page

Source lumineuse	LED
Puissance du luminaire	5.5 - 9.5 W
Type d'équipement	Alimentation
Tension nominale	220 ... 240 V
Through wiring	Non
Type of driver	ON/OFF

Net weight	1.9 - 2.4 kg
Couleur	Anthracite
Power and luminous flux tolerance	+/-10%

Flux lumineux du luminaire	230 - 460 lm
Efficacité lumineuse du luminaire	42 - 48 lm/W
Indice de rendu des couleurs	80
Distribution lumineuse	DI
MacAdam	SDCM 3
Temperature de couleur	3000K, 4000K
Temperatu re de couleur / CRI	830, 840

Niveau de protection (IP)	IP65
Résistance à l'impact	IK08
Classe de protection	II
Protection de la source lumineuse	Oui
CE	Oui
HACCP+	Oui
