Innenbeleuchtung für Deckenmodul

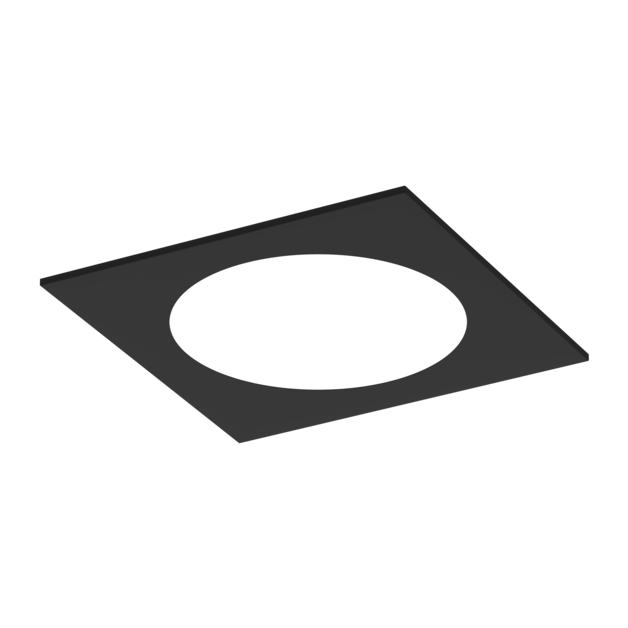

Circle LED 600x600 37W 4830lm 840 OPAL Black
High-grade luminaire with a subtle and evenly distributed circle shaped light beam. Circle LED is equipped with opal diffuser blending harmoniously with the surface of the ceiling. LED light sources version. Perfect choice for offices, corridors and lobbies.
Innenbeleuchtung für Deckenmodul
Circle LED 600x600 37W 4830lm 840 OPAL Black
High-grade luminaire with a subtle and evenly distributed circle shaped light beam. Circle LED is equipped with opal diffuser blending harmoniously with the surface of the ceiling. LED light sources version. Perfect choice for offices, corridors and lobbies.
LED
ON/OFF
Lichtaustritt DI
IP20
IK04
I
Ja
Ja
Basic information:
Index:
BS001.3311.840.A000
EAN:
5904312703701
Montageart:
für gesägte Deckenausschnitte (G/K), für Systemmaß 600X600
Power:
220 ... 240  V
Technical data
Circle LED 600x600 37W 4830lm 840 OPAL Black
PRODUKTCODE
BS001.3311.840.A000
Copy the code
PRODUKT-EAN
5904312703701
Copy the EAN code
Mechanische Produktdaten
Gehäuse-Material Stahlblech
Optische Produktdaten
Raster/ Blendschutz OPAL
Abdeckungsfarbe weiß
Abdeckungsmaterial Kunststoff opal / matt
UGR 21
Elektrische Produktdaten
Leuchtmittel LED
Leuchtenanschlussleistung 37 W
Lieferbares Zubehör Netzteil
Nennspannung 220 ... 240 V
Through wiring Nein
Type of driver ON/OFF
Emergency module Nein
Bewegungssensor Nein
Information data
Net weight 4.7 kg
Farbe schwarz
Power and luminous flux tolerance +/-10%
Lichttechnische Daten
Leuchtenlichtstrom 4830 lm
Lichtausbeute der Leuchte 131 lm/W
Farbwiedergabeindex 80
Lichtverteilung Lichtaustritt DI
L80B10 @25°C 100000 h
L90B10 @25°C 64000 h
Farbtemperatur 4000K
Farbtemperatur / CRI 840
Zertifikate
Schutzart IP IP20
Schlagfestigkeit IK04
Schutzklasse I
Lampenschutz Ja
CE Ja
HACCP+ Ja
Abmessungen
L W H G
595 mm 595 mm 74 mm 435 mm
L - Länge
W - Breite
H - Höhe / Einbautiefe
G - Inner diameter
Download
Produktdatenblatt
Download
Family datasheet
Download
Family datasheet extended
Download
Montageanleitung
624.19 KB
Download
Konformitätserklärung
Download
Photometric file
628 B
Download
Pobierz wszystkie pliki
