Innenbeleuchtung für Deckenmodul
Imola LED 1200x300 44W 4700lm 840 DMPRM White
LED direct-indirect panel luminaire featuring side opal sections for soft and uniform illumination. High glare control is achieved through special louvers and high-end microprismatic materials. Premium electronics help to maintain high efficacy and lifelength. EN12464-1 compliant. Bespoke adaptations for custom ceiling types (SAS, Armstrong etc.) available on request. Application: for offices, corridors and open spaces.
Innenbeleuchtung für Deckenmodul
Imola LED 1200x300 44W 4700lm 840 DMPRM White
LED direct-indirect panel luminaire featuring side opal sections for soft and uniform illumination. High glare control is achieved through special louvers and high-end microprismatic materials. Premium electronics help to maintain high efficacy and lifelength. EN12464-1 compliant. Bespoke adaptations for custom ceiling types (SAS, Armstrong etc.) available on request. Application: for offices, corridors and open spaces.
LED
ON/OFF
Lichtaustritt DI
IP20
IK03
I
Ja
Ja
Basic information:
Index:
CZ002.1123.840.A000
EAN:
5904312950068
Zubehör:
Imola LED Aufbaumontagerahmen Weiß 600x600mm
Montageart:
Into modular ceiling 600x600 with a visible supported structure.
Power:
220 ... 240  V
Technical data
Imola LED 1200x300 44W 4700lm 840 DMPRM White
PRODUKTCODE
CZ002.1123.840.A000
Copy the code
PRODUKT-EAN
5904312950068
Copy the EAN code
Mechanische Produktdaten
Montagearten Deckenmontage
Gehäuse-Material Stahlblech
Optische Produktdaten
Raster/ Blendschutz DMPRM
Abdeckungsfarbe fehlt
Abdeckungsmaterial Kunststoff strukturell / prismatisch
Elektrische Produktdaten
Leuchtmittel LED
Leuchtenanschlussleistung 44 W
Lieferbares Zubehör Netzteil
Nennspannung 220 ... 240 V
Through wiring Nein
mit Leuchtmittel bestückt Ja
Power factor 0.96
Type of driver ON/OFF
Emergency module Nein
Bewegungssensor Nein
Information data
Net weight 5.5 kg
Farbe weiß
Power and luminous flux tolerance +/-10%
Info 300x1200 MPRM
Lichttechnische Daten
Leuchtenlichtstrom 4700 lm
Lichtausbeute der Leuchte 107 lm/W
Lichtausbeute der Leuchte 62
Lichtfarbe weiss
Farbwiedergabeindex 80

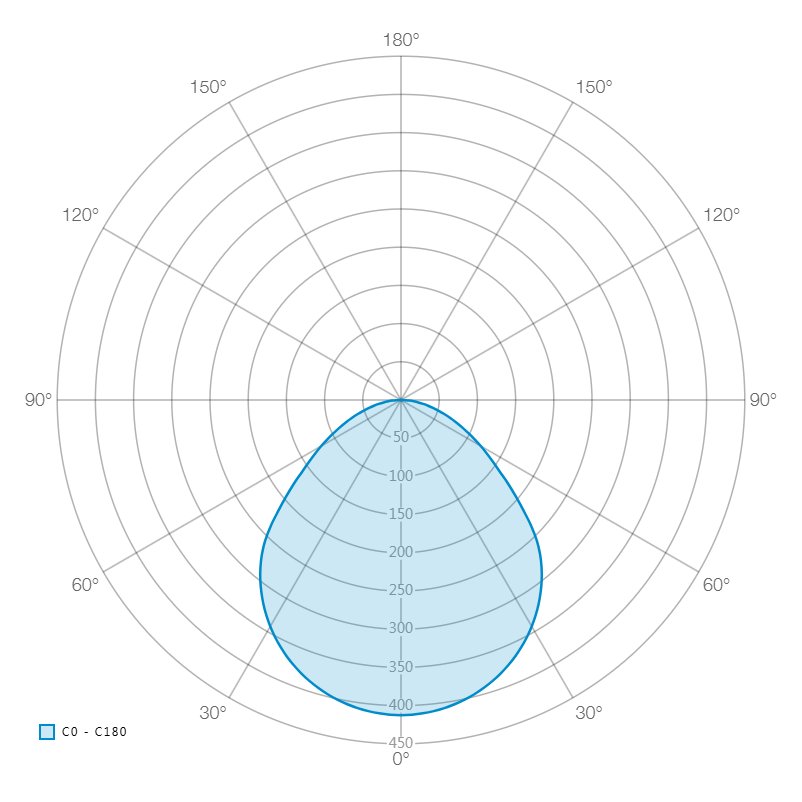

Lichtverteilung Lichtaustritt DI
Schutzklasse der Leuchte I
MacAdam SDCM 3
L80B10 @25°C 100000 h
L90B10 @25°C 64000 h
Lamp Lumen Maintenance Factor (after 60 000h) 85 %
Farbtemperatur 4000K
Farbtemperatur / CRI 840
Zertifikate
Schutzart IP IP20
Schlagfestigkeit IK03
Schutzklasse I
Power Flicker =< 3%
Lampenschutz Ja
CE Ja
HACCP+ Ja
Abmessungen
L W H
1195 mm 295 mm 66 mm
L - Länge
W - Breite
H - Höhe / Einbautiefe
