Downlight

Bari ECO DLN IP65 LED

BARI ECO DLN IP65 LED extends the family of BARI ECO LED luminaires designed for ceiling mounting. Thanks to its impressive lighting performance and universal form, it can be used in most rooms where increased IP protection degree is required.

Downlight

Bari ECO DLN IP65 LED

BARI ECO DLN IP65 LED extends the family of BARI ECO LED luminaires designed for ceiling mounting. Thanks to its impressive lighting performance and universal form, it can be used in most rooms where increased IP protection degree is required.

Go to the variant list (53)

LED

IP65

IK02

yes

yes

yes

Basic information:

Materials:

powder painted white aluminum ring and housing; OPAL diffuser, tempered glass. Reflector made of aluminum with a purity of 99.85%

Accessories:

central suspension 3x - set

Installation:

surface mounted

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Downlight

Application:

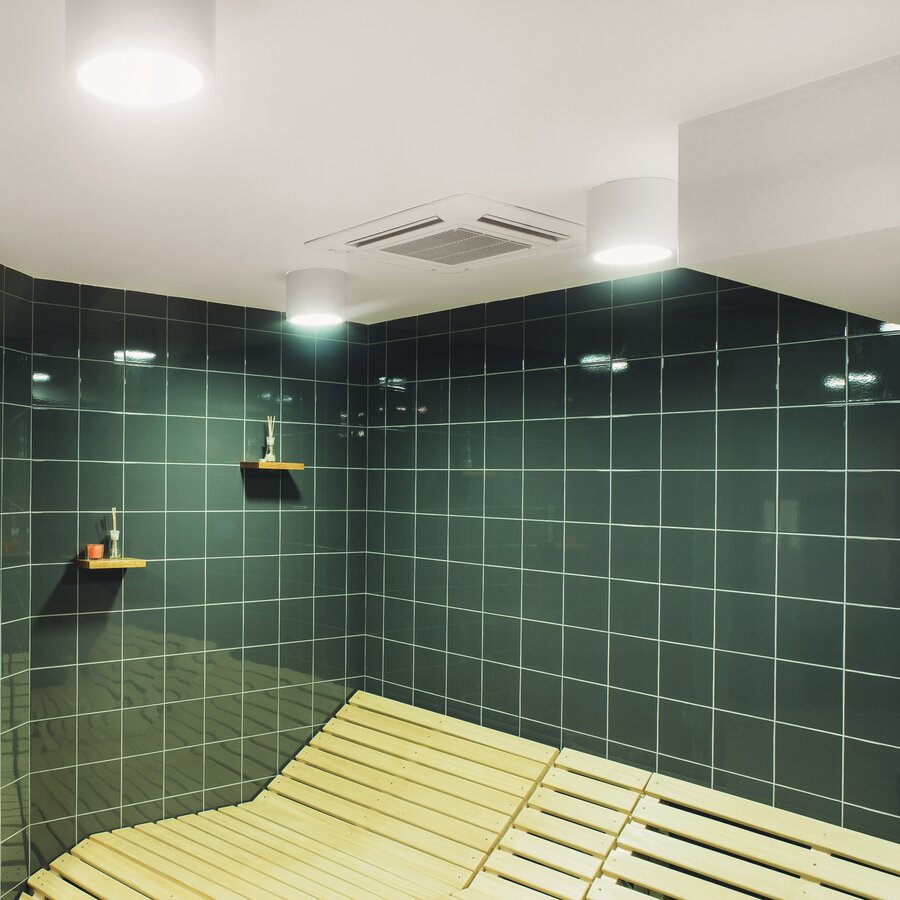

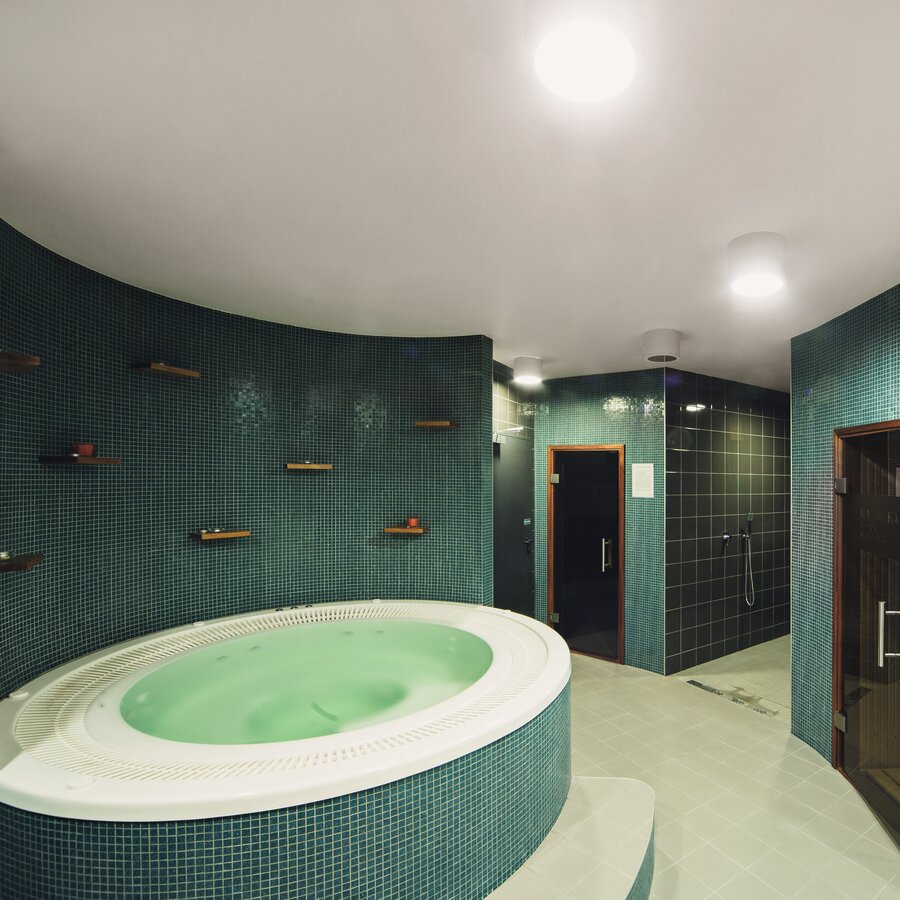

Arcade, Swimming pool, Bathroom, Cloak room, Corridor and staircase, Technical room, Laboratory, Gym, Commercial premises, Reception, Infirmary, Social room, Doctor's office, Operating theatre, Treatment rooms, Industrial

Mounting type:

Ceiling mounted

Technical data:

Luminaire power:

10 - 28 W

Luminaire luminous flux:

970 - 2750 lm

See other technical data

Description of the product's family

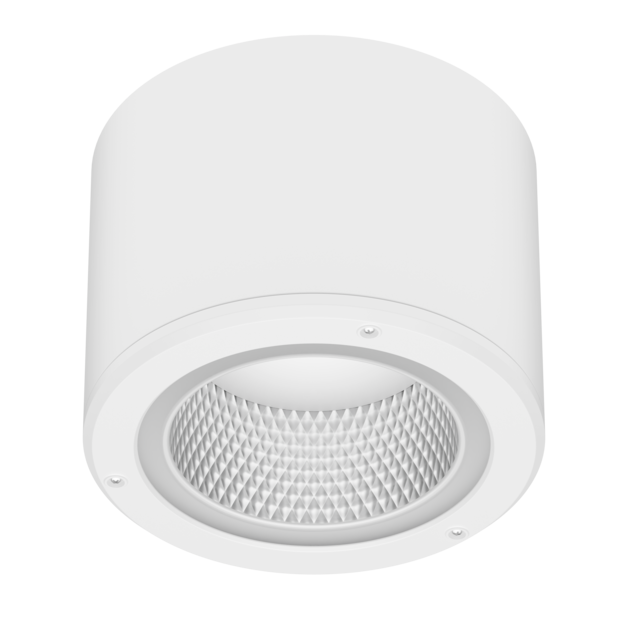

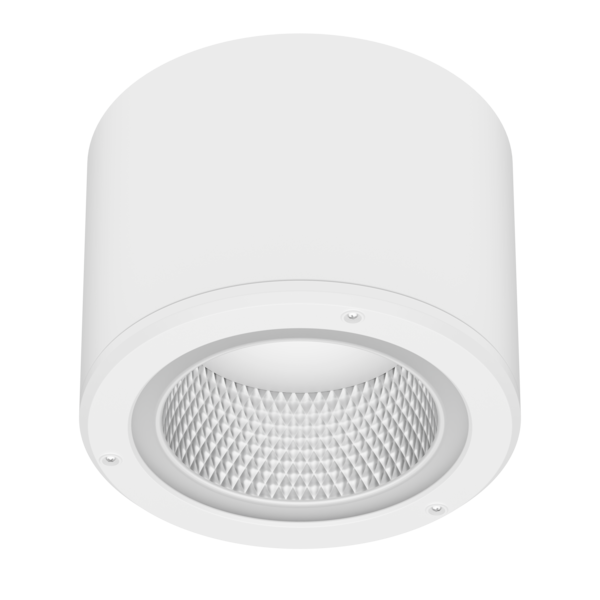

RF reflector - white housing

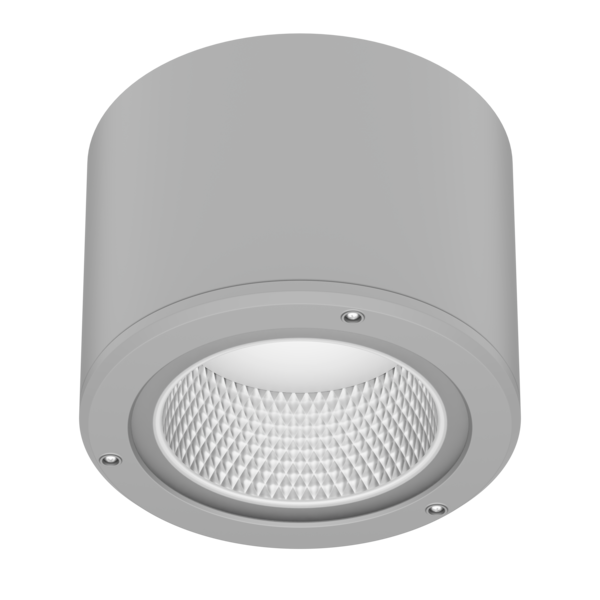

RF reflector - grey housing

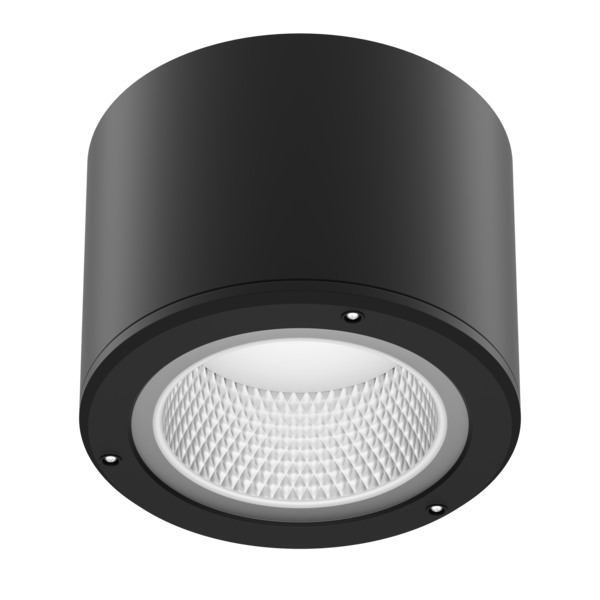

RF reflector - black housing

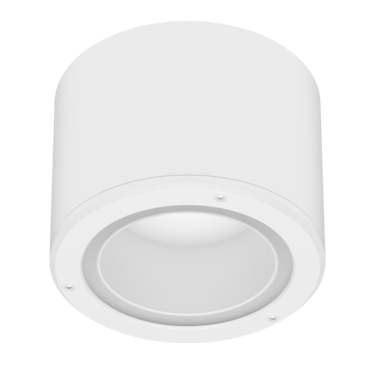

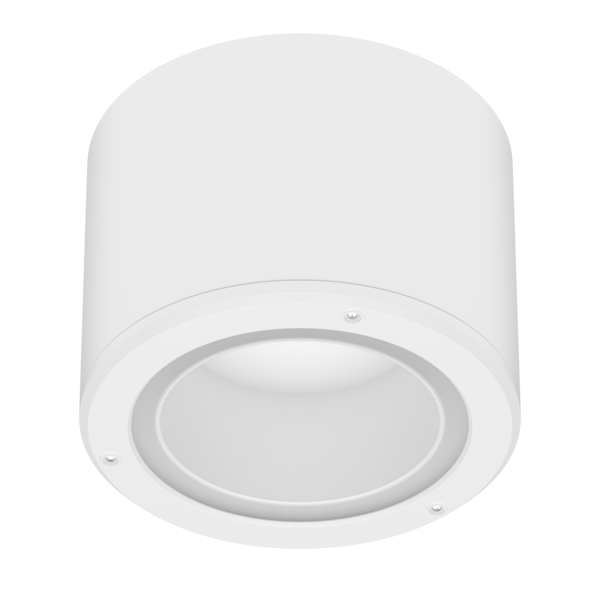

RM reflector - white housing

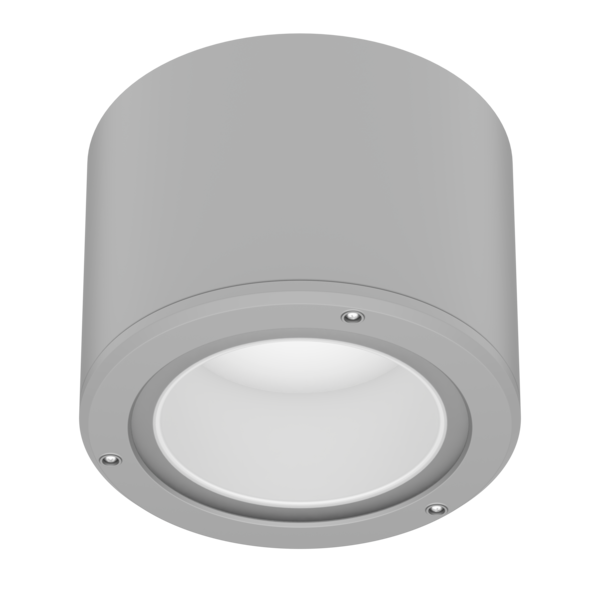

RM reflector - grey housing

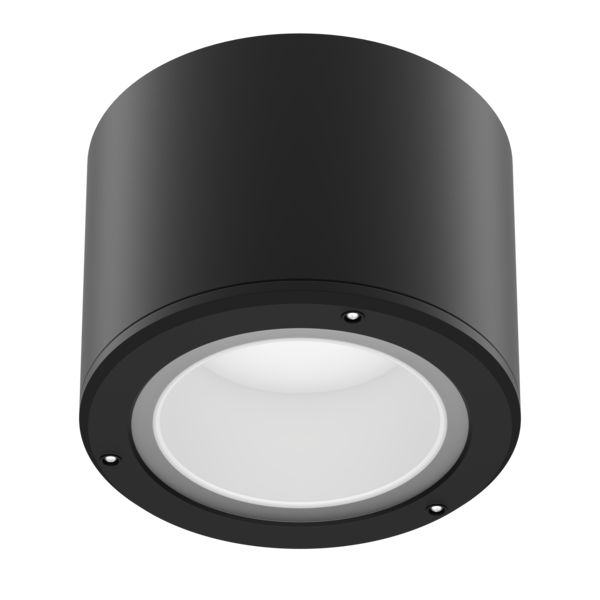

RM reflector - black housing

Technical data

Mechanical data

Type of installation	Surface mounted
Housing material	Aluminum

Optical data

Louver/ diffuser	RF, RM
Reflector	high gloss, metaliczny
UGR	24, 25, 27

Electrical data

Light source	LED
Luminaire power	10 - 28 W
Number of light sources	1
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	No
Light source included	yes
Type of driver	DALI, ON/OFF
Emergency module	option

Information data

Net weight	1.8 kg
Colour	Anthracite, Black, Grey, White
Operating temperature range	-20 ... 40
Power and luminous flux tolerance	+/-10%

Light data

Luminaire luminous flux	970 - 2750 lm
Luminaire's luminous efficacy	82 - 116 lm/W
Light colour	White
Color rendering index	80, 90
Light distribution	Medium-stream
Light distribution	DI
Class of luminaire	I
MacAdam	SDCM 3
Lifetime L80B10 @25°C	100.000 h
Lifetime L90B10 @25°C	64.000 h
Lamp Lumen Maintenance Factor (after 60 000h)	86 %
Colour temperature	3000K, 4000K
CRI & colour temperature	830, 840, 930, 940

Certificates

Degree of protection (IP)	IP65
Impact resistance	IK02
Class of protection	I
PZH	yes
CE	yes
HACCP+	yes

Product variants

✕

Search

Filters

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /MATTE REFLECTOR/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Louver/ diffuser [Optical system]	CRI & colour temperature	Colour	Type of driver	Emergency module	Type of family
DN001.1166.830.A000 Copy the code Open in new window	10 W	1140 lm	114 lm/W	RF	830	White	ON/OFF	No	10W
DN001.1166.830.D000 Copy the code Open in new window	10 W	1140 lm	114 lm/W	RF	830	White	DALI	No	10W
DN001.1166.840.A000 Copy the code Open in new window	10 W	1160 lm	116 lm/W	RF	840	White	ON/OFF	No	10W
DN001.1166.840.A200 Copy the code Open in new window	10 W	1160 lm	116 lm/W	RF	840	White	ON/OFF	EM3H ST	10W
DN001.1166.840.D000 Copy the code Open in new window	10 W	1160 lm	116 lm/W	RF	840	White	DALI	No	10W
DN001.1166.930.A000 Copy the code Open in new window	10 W	970 lm	97 lm/W	RF	930	White	ON/OFF	No	10W
DN001.1166.930.D000 Copy the code Open in new window	10 W	970 lm	97 lm/W	RF	930	White	DALI	No	10W
DN001.1166.940.A000 Copy the code Open in new window	10 W	990 lm	99 lm/W	RF	940	White	ON/OFF	No	10W
DN001.1166.940.D000 Copy the code Open in new window	10 W	990 lm	99 lm/W	RF	940	White	DALI	No	10W
DN001.1167.830.A000 Copy the code Open in new window	10 W			RM	830	White	ON/OFF	No	10W
DN001.2266.840.A000 Copy the code Open in new window	10 W	1160 lm	116 lm/W	RF	840	Grey	ON/OFF	No	10W
DN001.3366.830.A000 Copy the code Open in new window	10 W	1140 lm	114 lm/W	RF	830	Black	ON/OFF	No	10W
DN001.3366.840.A000 Copy the code Open in new window	10 W	1160 lm	116 lm/W	RF	840	Black	ON/OFF	No	10W
DN002.1166.830.A000 Copy the code Open in new window	15 W	1560 lm	104 lm/W	RF	830	White	ON/OFF	No	15W
DN002.1166.830.D000 Copy the code Open in new window	15 W	1560 lm	104 lm/W	RF	830	White	DALI	No	15W

Displaying items: 15 of 53

of 4

per page

Family datasheet

Download

Family datasheet extended

Download

Installation manual

462.17 KB

Download

EC Declaration of conformity

Download

Photometric file

10.37 KB

Download

Download all files

Installation elements

Bari DLN LED Suspension set 3x
