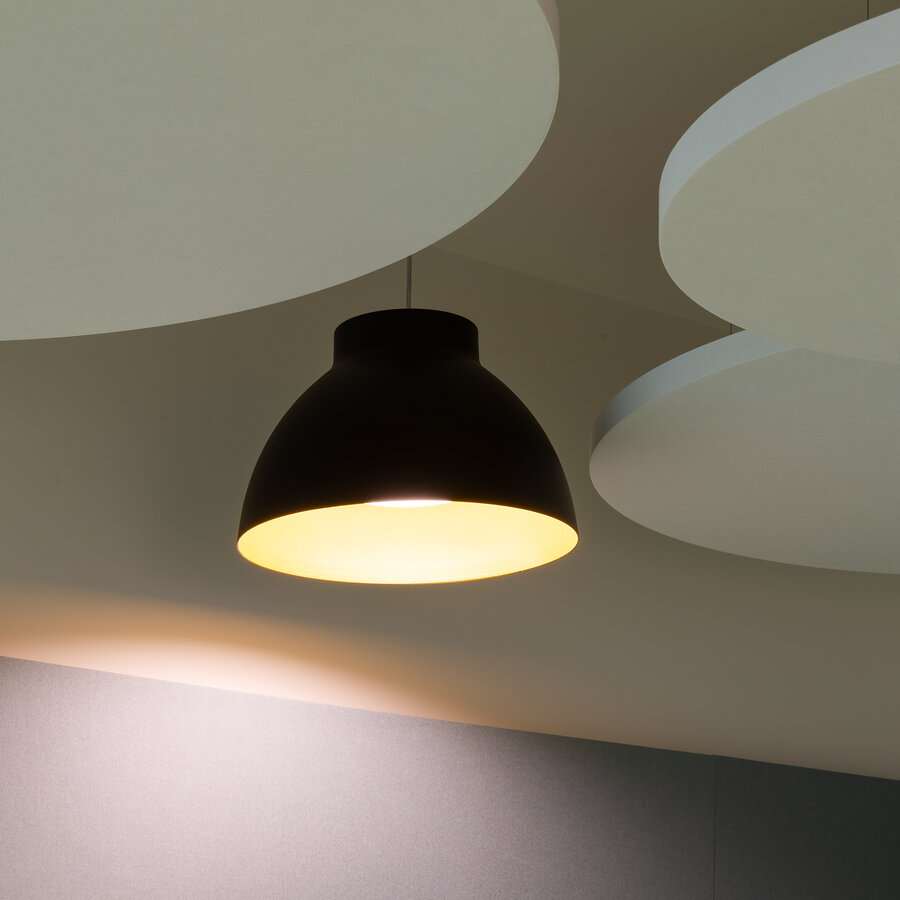

Decorative
Deco LED
Suspended luminaire with built-in LED source. Electric suspension in set.
Decorative
Deco LED
Suspended luminaire with built-in LED source. Electric suspension in set.
Go to the variant list (8)
LED
ON/OFF
DI
IP20
IK04
I
yes
yes
Basic information:
Materials:
Electrostatically painted aluminium steel sheet (two coours in standard: white or black from the outside and gold or white from the inside). On request: possibility of painting in any RAL colour.
Installation:
suspended (suspension in set)
Power:
220 ... 240 V
Categorization:
Type of luminaire:
Decorative
Application:

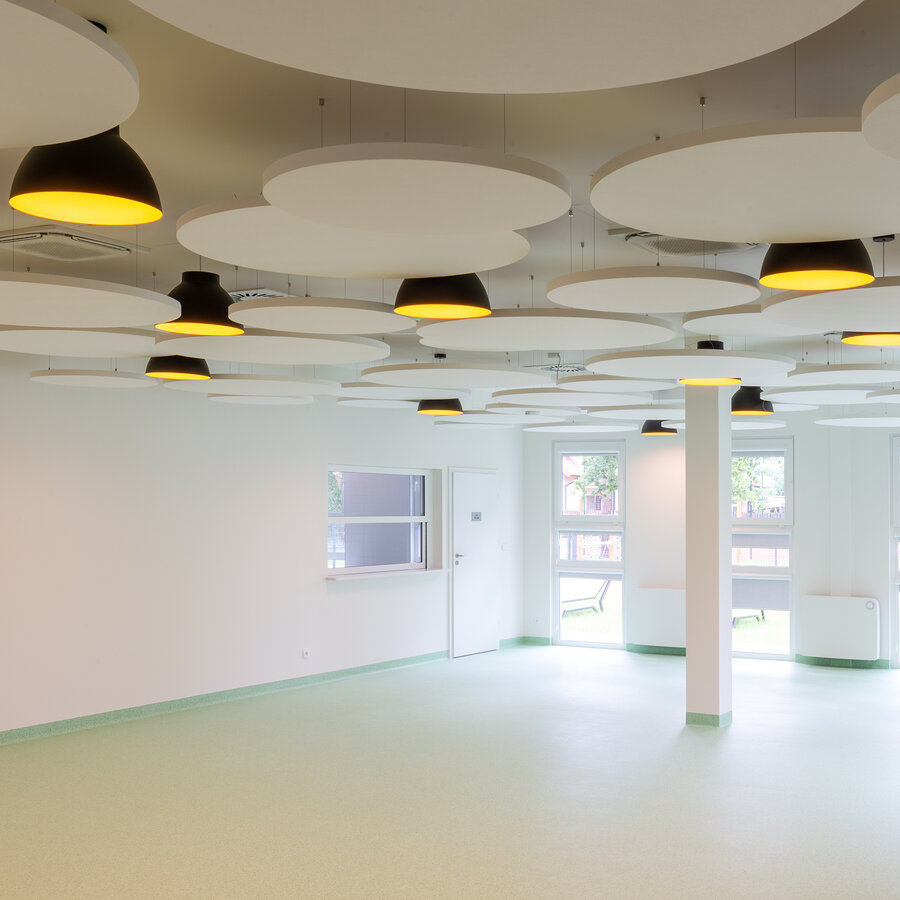

Office, Conference room, Reception, Commercial premises, Corridor and staircase, Social room, Cloak room, Technical room, Security, Bathroom
Mounting type:
Pendant
Technical data:
Luminaire power:
19 W
Luminaire luminous flux:
1750 - 2225 lm
Length:
2250 mm
See other technical data
Technical data Product variants Download
Description of the product's family

DECO LED has an OPAL diffuser that covers the LED sources and protects them from mechanical damage. An additional function of the OPAL diffuser is to disperse the light flow.

Technical data
Mechanical data
Type of installation Suspended
Housing material Aluminum
Optical data
Louver/ diffuser RG, RW
Reflector gold, white
UGR 19
Electrical data
Light source LED
Luminaire power 19 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Type of driver ON/OFF
Information data
Net weight 0.8 kg
Colour Black, White
Power and luminous flux tolerance +/-10%
Info RW
Light data
Luminaire luminous flux 1750 - 2225 lm
Luminaire's luminous efficacy 92 - 117 lm/W
Light colour White
Color rendering index 80
Light distribution DI
MacAdam SDCM 3
Lifetime L80B10 @25°C 100.000 h
Lifetime L90B10 @25°C 64.000 h
Colour temperature 2700 K, 3000K, 4000K
CRI & colour temperature 827, 830, 840
Certificates
Degree of protection (IP) IP20
Impact resistance IK04
Class of protection I
CE yes
HACCP+ yes
Product variants
✕
Search
Filters
How does the product indexing system work?
AA
002
.
22
11
.
830
.
D
0
0
0
Family
AA ALTO LED
AB ALTO WALL
Type
001 e.g.: 545 mm
002 e.g.: 1085 mm
Colour
11 WHITE RAL 9016
12 WHITE RAL 9010
22 GREY RAL 9006
33 BLACK RAL 9005
44 ANTHRACITE RALBG 452
45 ANTHRACITE RAL 7016
99 OTHER - PERSONALIZATION
Optical system
00 EMPTY
11 OPAL /MILK DIFFUSER/
22 MPRM /MICROPRISMATIC DIFFUSER/
23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/
24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/
33 PAR /PARABOLIC LOUVER/
34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/
44 mPARM /PARABOLIC MINI LOUVER METALLIZED/
45 PARW /PARABOLIC LOUVER WHITE/
46 mPARB /PARABOLIC MINI LOUVER BLACK/
66 RF /REFLECTOR/
67 RM /MATTE REFLECTOR/
68 RW /REFLECTOR WHITE/
77 LNS /LENS/
88 SH MAT /MATTE TEMPERED GLASS/
89 SH /TEMPERED GLASS/
CRI / Colour temp.
827
830 CRI ≥ 80; CCT 3000K
835 CRI ≥ 80; CCT 3500K
840 CRI ≥ 80; CCT 4000K
850 CRI ≥ 80; CCT 5000K
857 CRI ≥ 80; CCT 5700K
865 CRI ≥ 80; CCT 6500K
8TW CRI ≥ 80; Tunable white
927 CRI ≥ 90; CCT 2700K
930 CRI ≥ 90; CCT 3000K
935 CRI ≥ 90; CCT 3500K
940 CRI ≥ 90; CCT 4000K
950 CRI ≥ 90; CCT 5000K
957 CRI ≥ 90; CCT 5700K
965 CRI ≥ 90; CCT 6500K
9TW CRI ≥ 90; Tunable white
RGB RGB
Driver
A ON/OFF /WITHOUT REGULATION/
D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/
H HO /DRIVER WITH PREDEFINED SETTING/
E HE /DRIVER WITH PREDEFINED SETTING/
F HO DALI /DRIVER WITH PREDEFINED SETTING/
G HE DALI /DRIVER WITH PREDEFINED SETTING/
K DSI
I CF /CORRIDOR FUNCTION - STEP DIMMING/
C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/
X DMX
S sDIMM
V 1-10V /ADJUSTABLE/
Emergency module
0 WITHOUT EMERGENCY MODULE
1 EM1H ST /SELFTEST/
2 EM3H ST /SELFTEST/
3 EM1H BASIC
4 EM3H BASIC
5 EM1H PRO /DALI/
6 EM3H PRO /DALI/
Through wiring
0 WITHOUT THROUGH WIRING
1 TH3 /3-PHASE THROUGH WIRING/
2 TH5 /5-PHASE THROUGH WIRING/
3 TH7 /7-PHASE THROUGH WIRING/
4 WI /WIELAND/
5 WI TH /THROUGH WIRING/
Motion sensor
0 WITHOUT MOTION SENSOR
1 MW PRO /PASSIVE INFRARED - STEP DIMM/
2 PIR /INFRARED/
Technical data
Dimensions
Filtering by parameters
Parameters
Luminous flux
Show products
CRI / Colour temp.
Select all
Reset
Show products
Optical system
Select all
Reset
Show products
Colour
Select all
Reset
Show products
Reflector
Select all
Reset
Show products
Index
Luminaire power
Luminaire luminous flux
Luminaire's luminous efficacy
Louver/ diffuser
[Optical system]
CRI & colour temperature
Diffuser colour
Reflector
Type of driver
Type of family
HA002.1165.827.A000
Copy the code
Open in new window
19 W 1750 lm 92 lm/W RG 827 gold ON/OFF 19W
HA002.1165.830.A000
Copy the code
Open in new window
19 W 1800 lm 95 lm/W RG 830 gold ON/OFF 19W
HA002.1168.830.A000
Copy the code
Open in new window
19 W 2120 lm 112 lm/W RW 830 white ON/OFF 19W
HA002.1168.840.A000
Copy the code
Open in new window
19 W 2225 lm 117 lm/W RW 840 white ON/OFF 19W
HA002.3365.827.A000
Copy the code
Open in new window
19 W 1750 lm 92 lm/W RG 827 gold ON/OFF 19W
HA002.3365.830.A000
Copy the code
Open in new window
19 W 1800 lm 95 lm/W RG 830 gold ON/OFF 19W
HA002.3368.830.A000
Copy the code
Open in new window
19 W 2120 lm 112 lm/W RW 830 white ON/OFF 19W
HA002.3368.840.A000
Copy the code
Open in new window
19 W 2225 lm 117 lm/W RW 840 white ON/OFF 19W
Displaying items: 8 of 8
of 1
15
15
50
100

per page

Projects
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
354.44 KB
Download
EC Declaration of conformity
Download
Photometric file
2.97 KB
Download
Download all files
