Kardo Mini NT LED

Multidirectional, accentuating lighting system with adjustable and independent spotlights designed for surface mounting

Downlight

Kardo Mini NT LED

Multidirectional, accentuating lighting system with adjustable and independent spotlights designed for surface mounting

Go to the variant list (18)

LED

IP20

IK03

yes

yes

Basic information:

Materials:

Powder painted aluminum housing (standard color: white, grey, black), light sources adjustable in two planes.

Installation:

surface mounted

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Downlight

Application:

Office, Conference room, Corridor and staircase, Reception, Cloak room, Commercial premises

Mounting type:

Ceiling mounted

Technical data:

Luminaire power:

8 - 16 W

Luminaire luminous flux:

680 - 1400 lm

Length:

95 mm, 180 mm

See other technical data

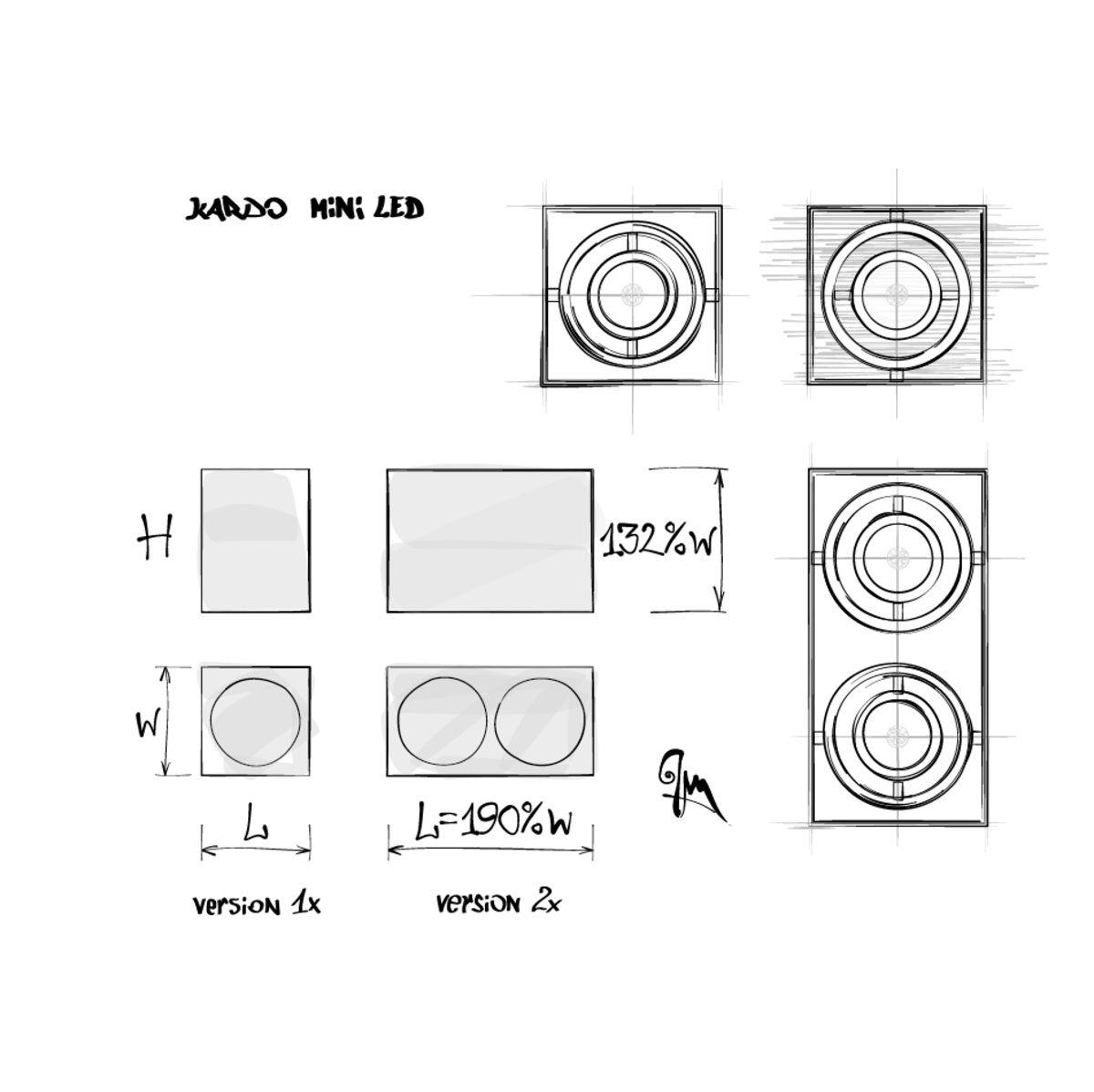

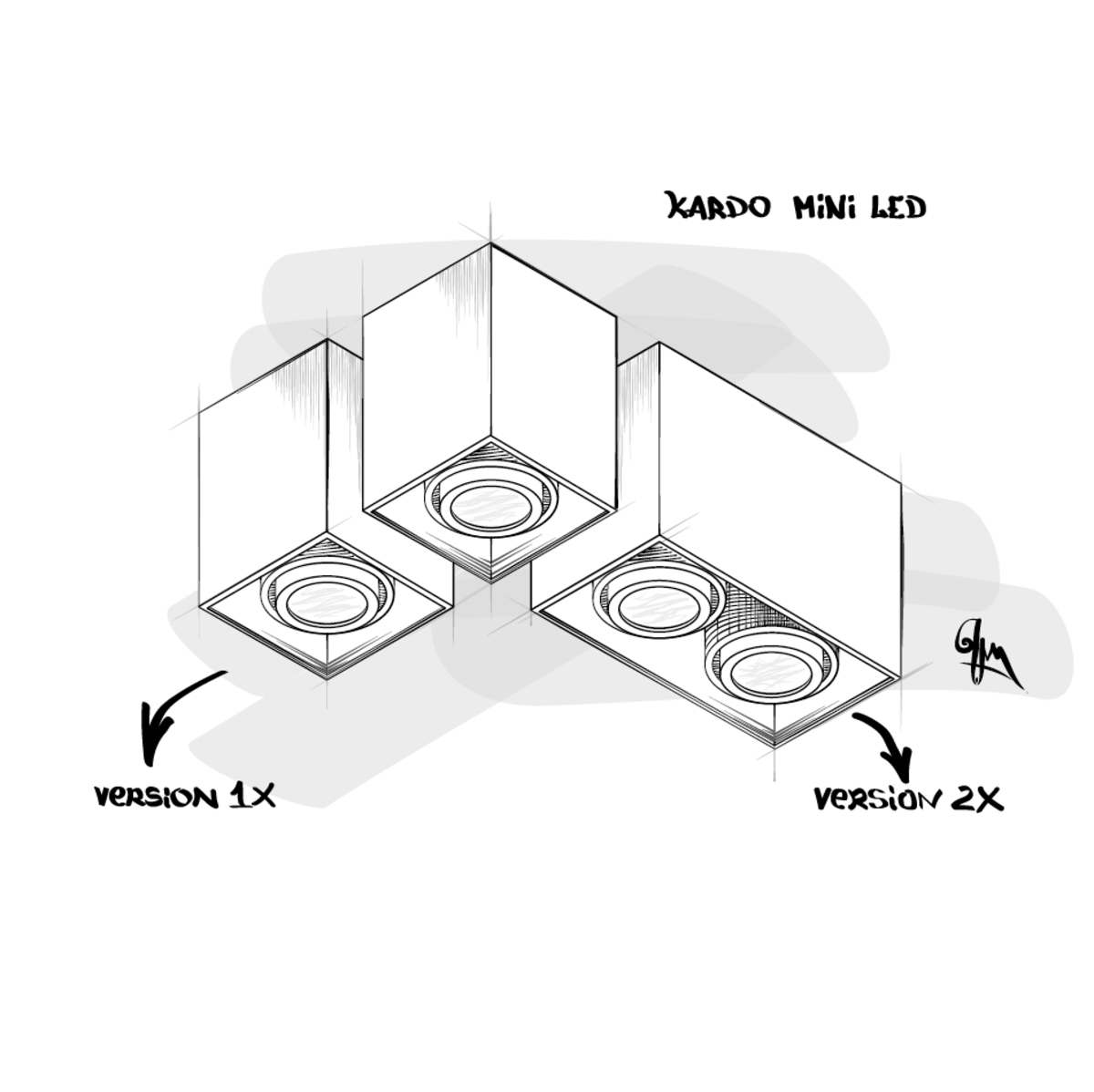

Description of the product's family

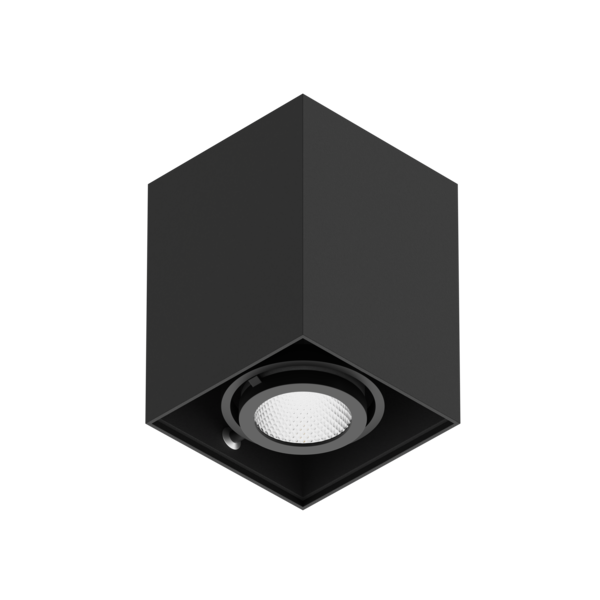

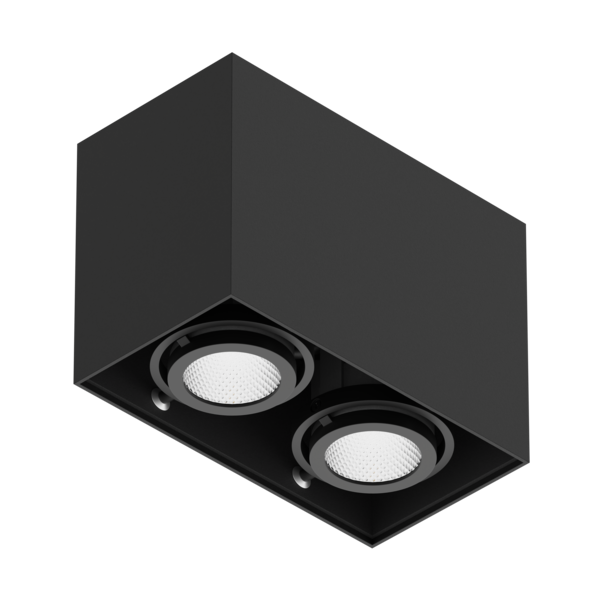

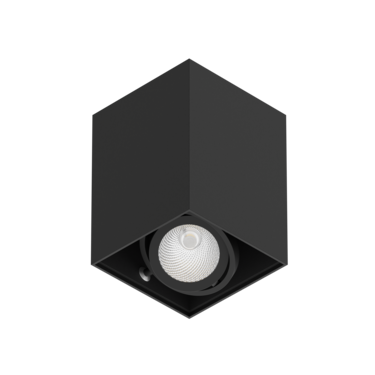

1x black

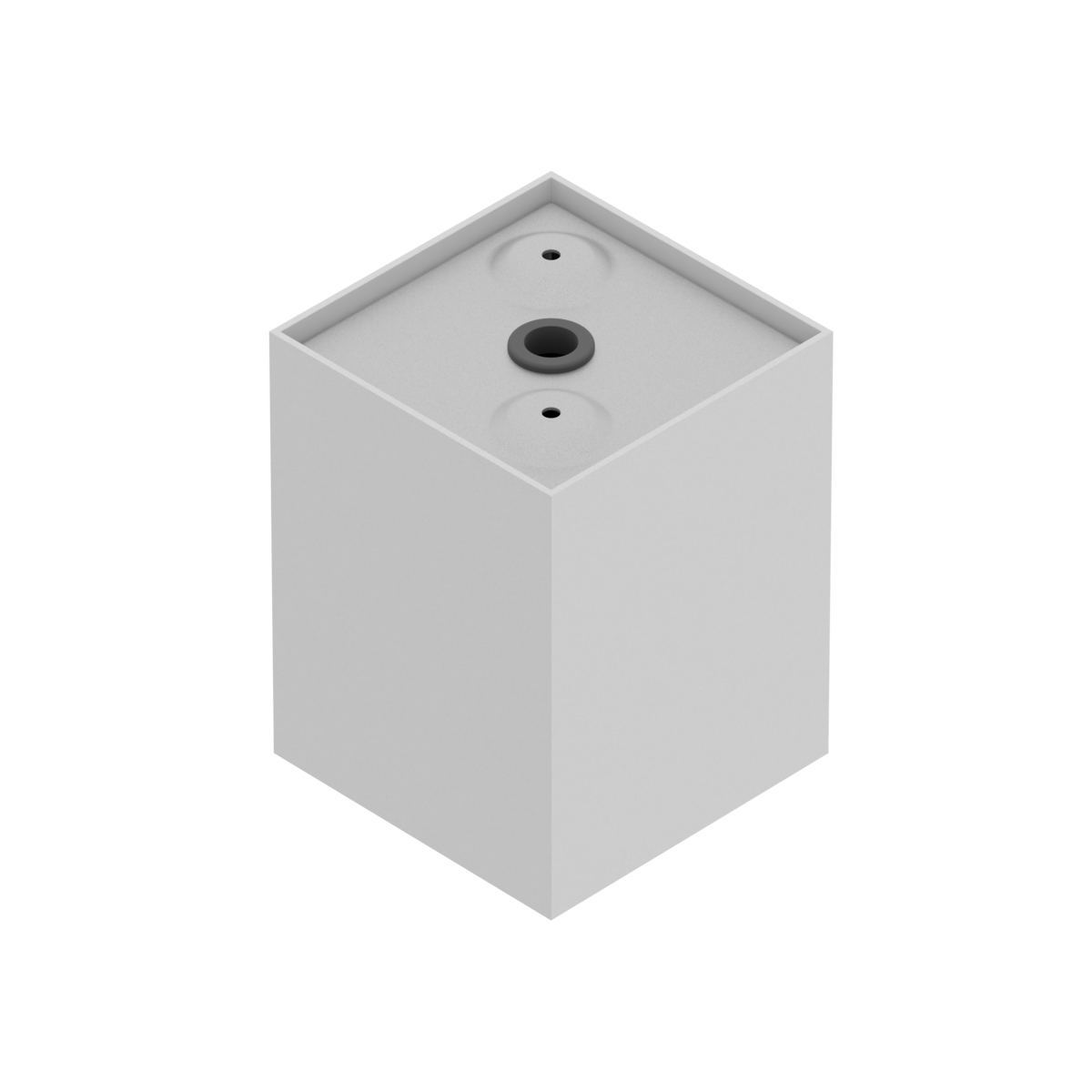

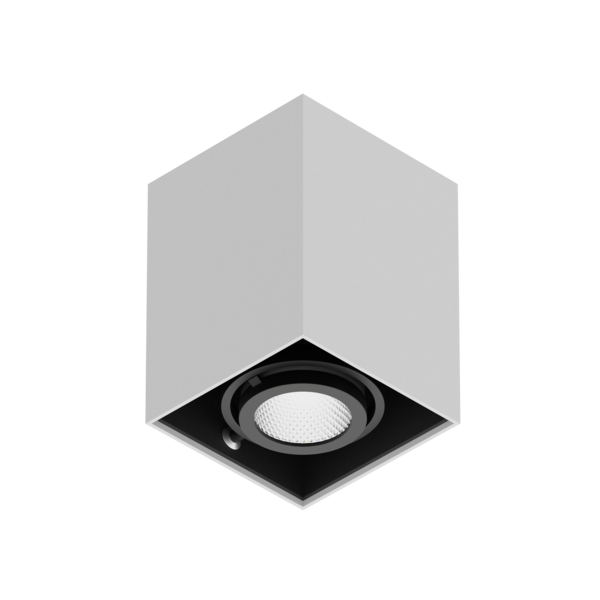

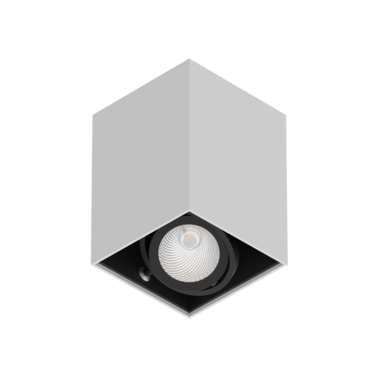

1x grey

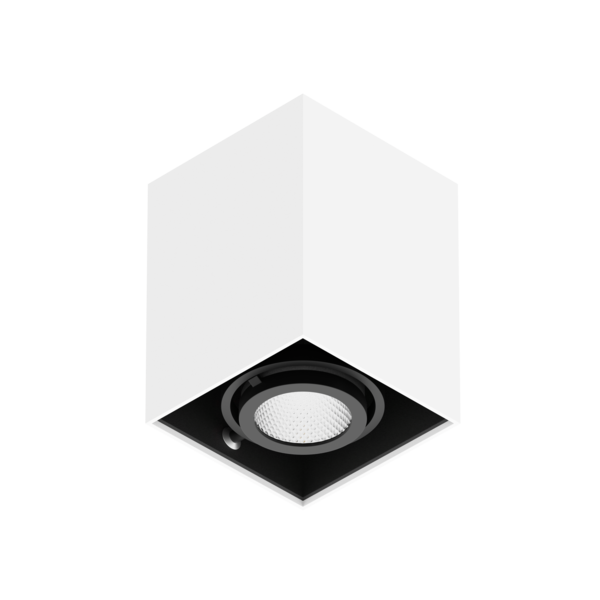

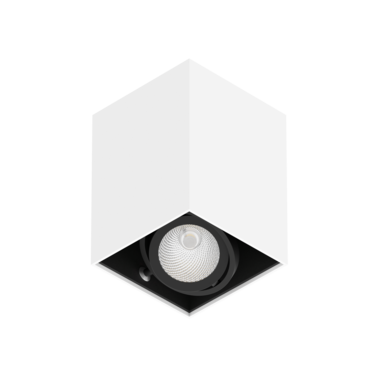

1x white

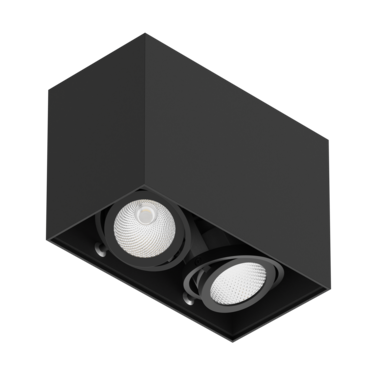

2x black

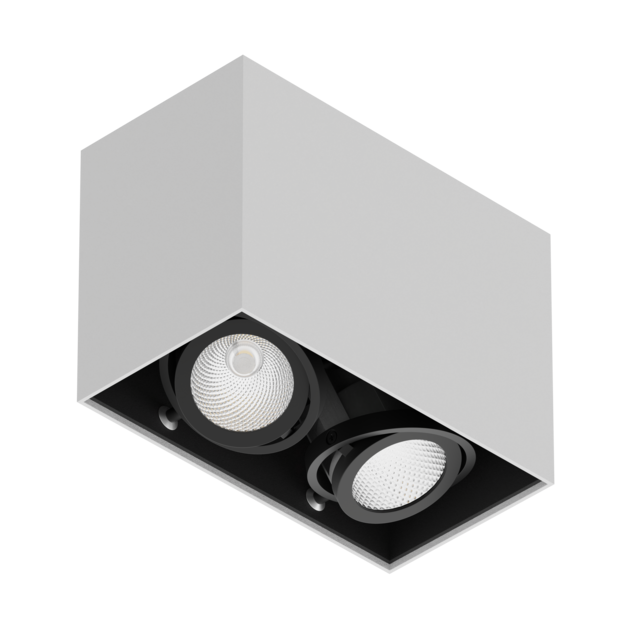

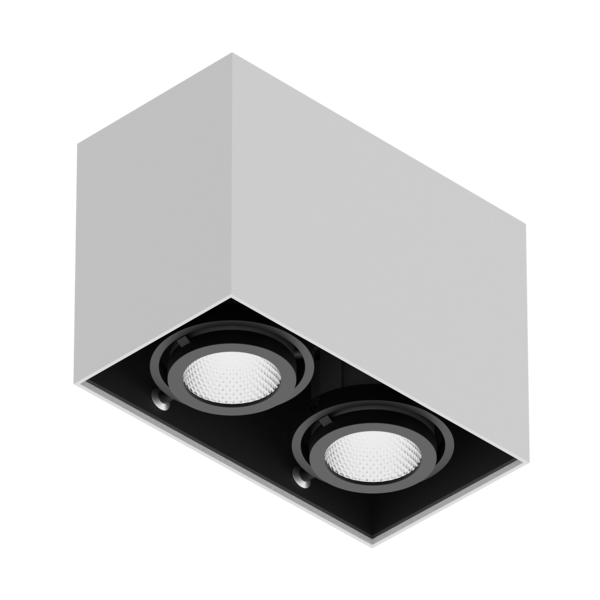

2x grey

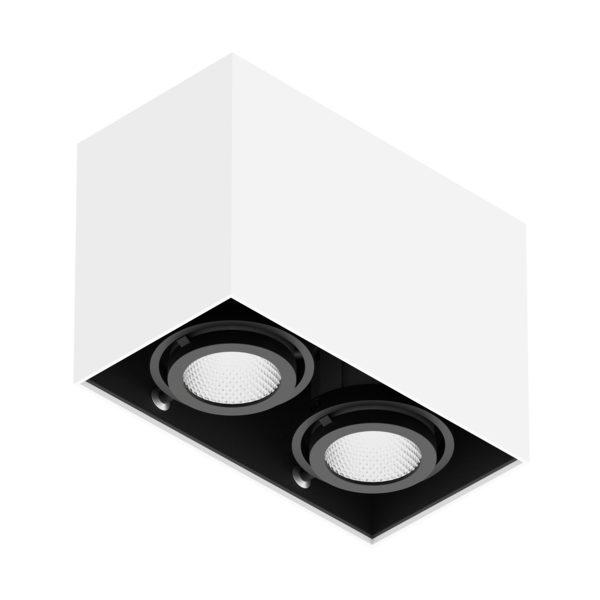

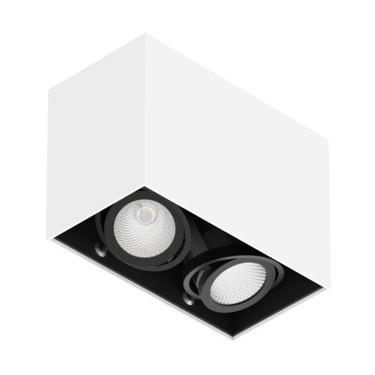

2x white

Technical data

Mechanical data

Type of installation	Surface mounted
Housing material	Aluminum

Optical data

Louver/ diffuser	RF
Reflector	high gloss
UGR	18

Electrical data

Light source	LED
Luminaire power	8 - 16 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	No
Light source included	yes
Type of driver	DALI, ON/OFF

Information data

Net weight	0.7 kg
Colour	Black, Grey, White
Rotated model	yes
Power and luminous flux tolerance	+/-10%

Light data

Luminaire luminous flux	680 - 1400 lm
Luminaire's luminous efficacy	85 - 88 lm/W
Color rendering index	80
Light distribution	DI
MacAdam	SDCM 3
Lifetime L80B10 @25°C	100.000 h
Lifetime L90B10 @25°C	64.000 h
Colour temperature	3000K, 4000K
CRI & colour temperature	830, 840

Certificates

Degree of protection (IP)	IP20
Impact resistance	IK03
Class of protection	I
CE	yes
HACCP+	yes

Product variants

✕

Search

Filters

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /MATTE REFLECTOR/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	CRI & colour temperature	Colour	Type of driver	LED modules	Class of protection	Type of family
HO001.1166.830.A000 Copy the code Open in new window	8 W	680 lm	85 lm/W	830	White	ON/OFF	1x	I	8W 1X
HO001.1166.840.A000 Copy the code Open in new window	8 W	700 lm	88 lm/W	840	White	ON/OFF	1x	I	8W 1X
HO001.2266.830.A000 Copy the code Open in new window	8 W	680 lm	85 lm/W	830	Grey	ON/OFF	1x	I	8W 1X
HO001.2266.840.A000 Copy the code Open in new window	8 W	700 lm	88 lm/W	840	Grey	ON/OFF	1x	I	8W 1X
HO001.3366.830.A000 Copy the code Open in new window	8 W	680 lm	85 lm/W	830	Black	ON/OFF	1x	I	8W 1X
