Downlight

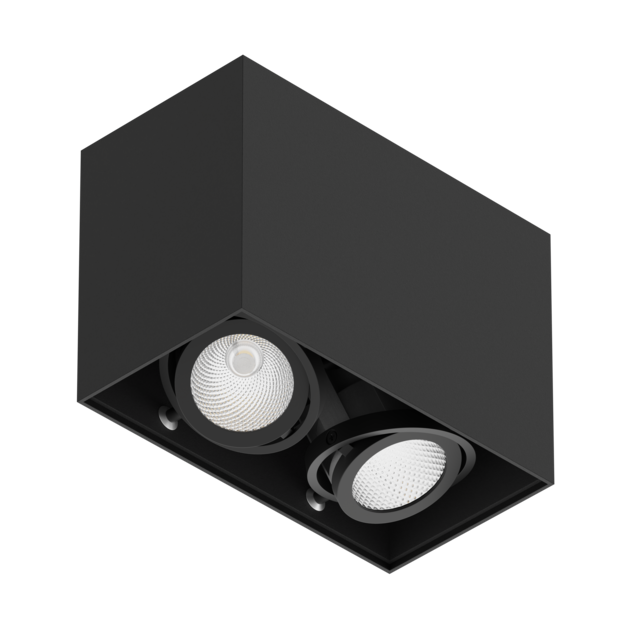

Kardo Mini NT LED 2X 15W 1080lm 830 RF Black
Multidirectional, accentuating lighting system with adjustable and independent spotlights designed for surface mounting
Downlight
Kardo Mini NT LED 2X 15W 1080lm 830 RF Black
Multidirectional, accentuating lighting system with adjustable and independent spotlights designed for surface mounting
LED
ON/OFF
DI
IP20
I
yes
yes
Basic information:
Index:
HO002.3366.830.A000
EAN:
5904349211934
Installation:
surface mounted
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Downlight
Application:
Office, Conference room, Corridor and staircase, Reception, Cloak room, Commercial premises
Mounting type:
Ceiling mounted
Technical data Download
Technical data
Kardo Mini NT LED 2X 15W 1080lm 830 RF Black
PRODUCT CODE
HO002.3366.830.A000
Copy the code
PRODUCT EAN
5904349211934
Copy the EAN code
Mechanical data
Housing material Aluminum
Optical data
Louver/ diffuser RF
Reflector high gloss
Electrical data
Light source LED
Luminaire power 16 W
LED modules 2x
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 0.7 kg
Colour Black
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 1360 lm
Luminaire's luminous efficacy 85 lm/W
Color rendering index 80
Light distribution DI
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) IP20
Class of protection I
CE yes
HACCP+ yes
Dimensions
L W H
180 mm 95 mm 125 mm
L - Length
W - Width
H - Height / Depth
Download
Catalogue card
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
346.22 KB
Download
EC Declaration of conformity
Download
Photometric file
1.33 KB
Download
Pobierz wszystkie pliki
