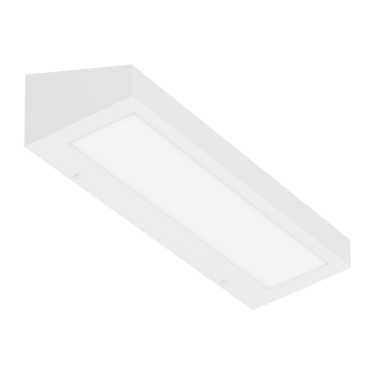

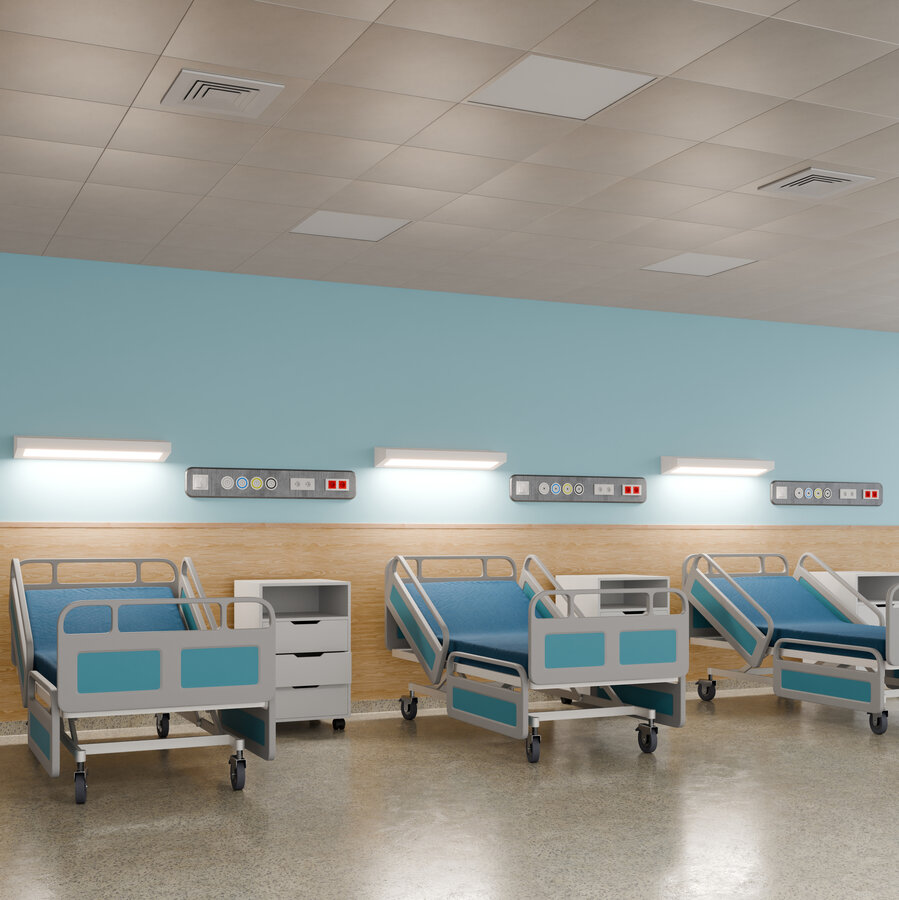

Wall-mounted luminaire designed for patient rooms and healthcare environments, combining two independently controlled light distributions. Direct side provides comfortable, focused reading light for the patient, while indirect delivers soft illumination for general and night-time lighting.
Installed above the eye level of standing personnel, it minimises glare and visual discomfort for medical staff while creating a calm, comfortable atmosphere for patients. Designed to meet the requirements of the most demanding European healthcare markets, it delivers a refined lighting solution for patient rooms.
A power cord is not included with the luminaire. We recommend connecting the luminaire to a wall switch.
Wall-mounted luminaire designed for patient rooms and healthcare environments, combining two independently controlled light distributions. Direct side provides comfortable, focused reading light for the patient, while indirect delivers soft illumination for general and night-time lighting.
Installed above the eye level of standing personnel, it minimises glare and visual discomfort for medical staff while creating a calm, comfortable atmosphere for patients. Designed to meet the requirements of the most demanding European healthcare markets, it delivers a refined lighting solution for patient rooms.
A power cord is not included with the luminaire. We recommend connecting the luminaire to a wall switch.
powder-coated aluminium sheet, OPAL diffusers made of polycarbonate.
wall mounted

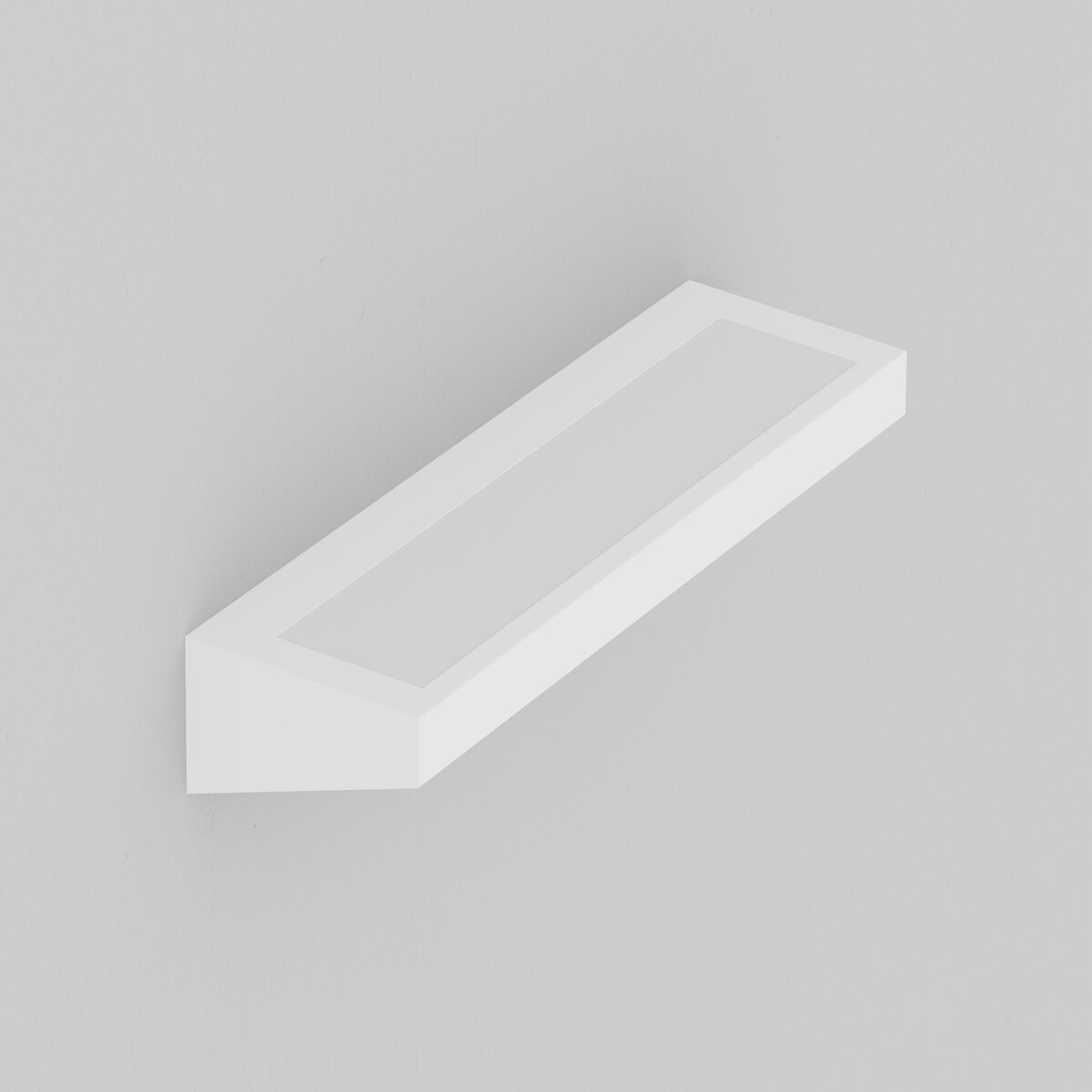

Top view
- luminaire switched off

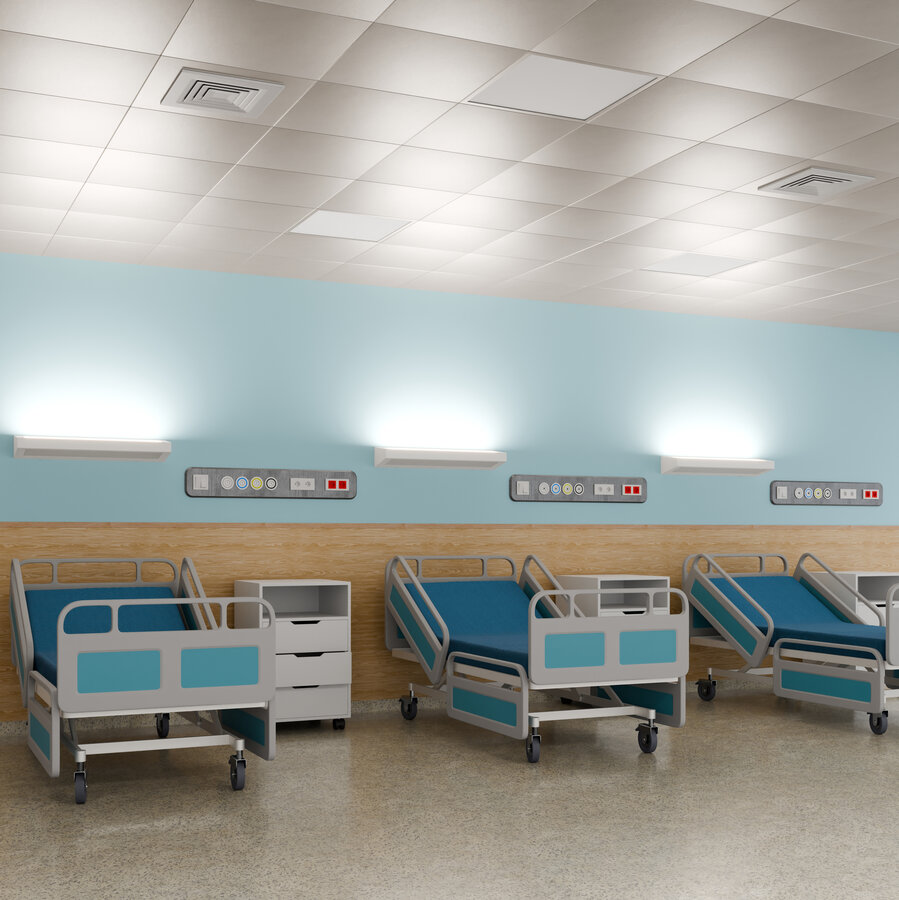

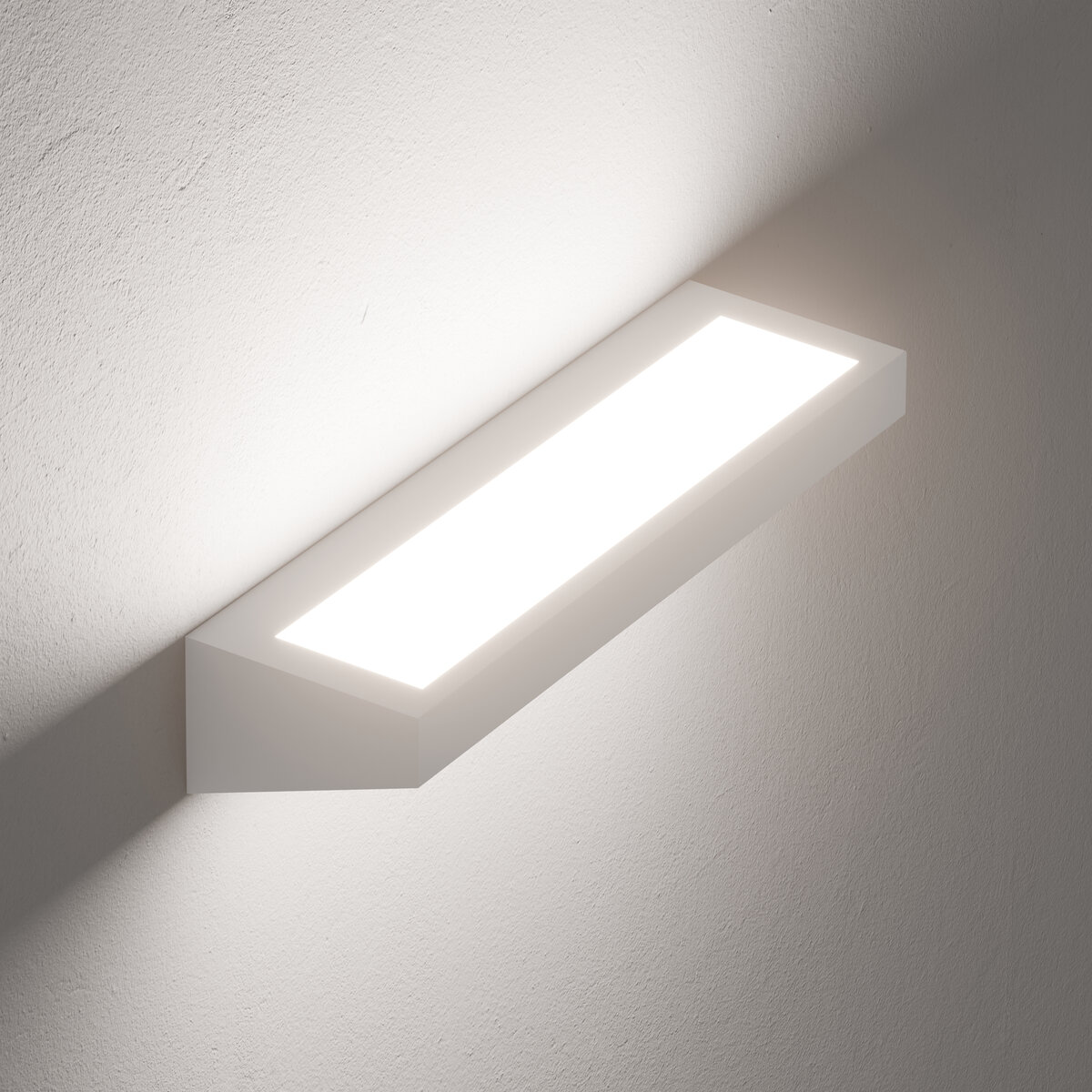

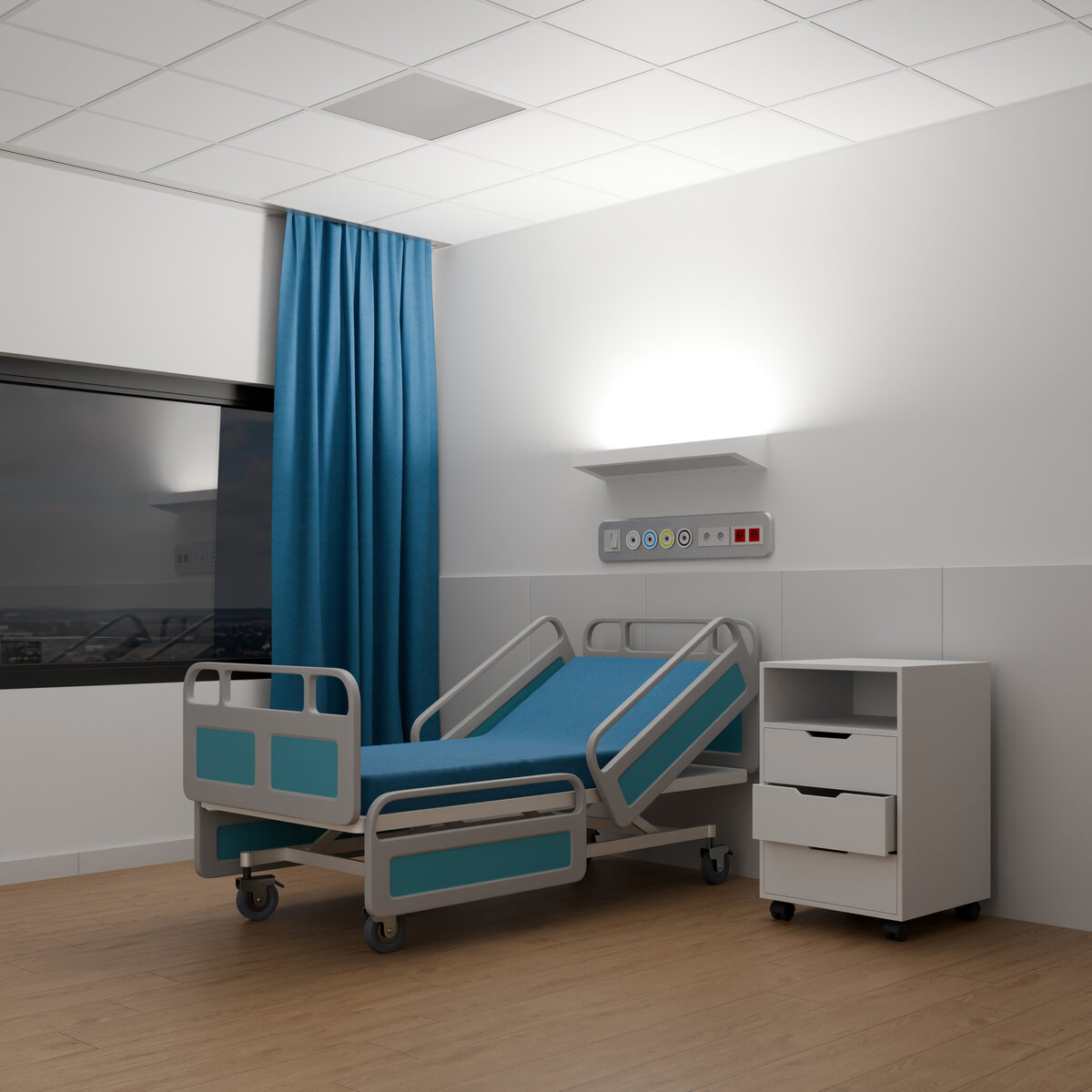

Top view - general lighting mode - the luminaire emits a luminous flux towards the ceiling.

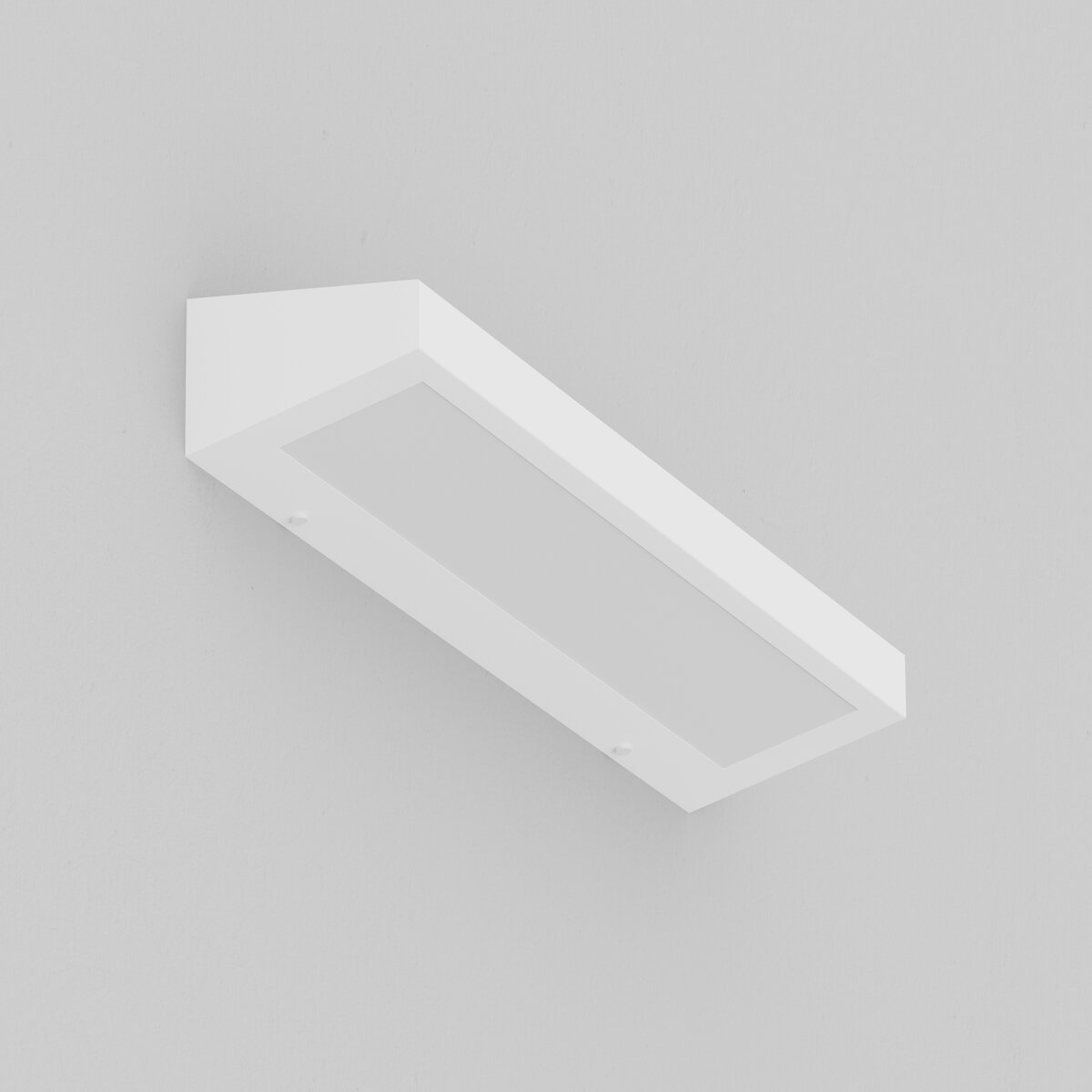

View from bellow
- luminaire switched off

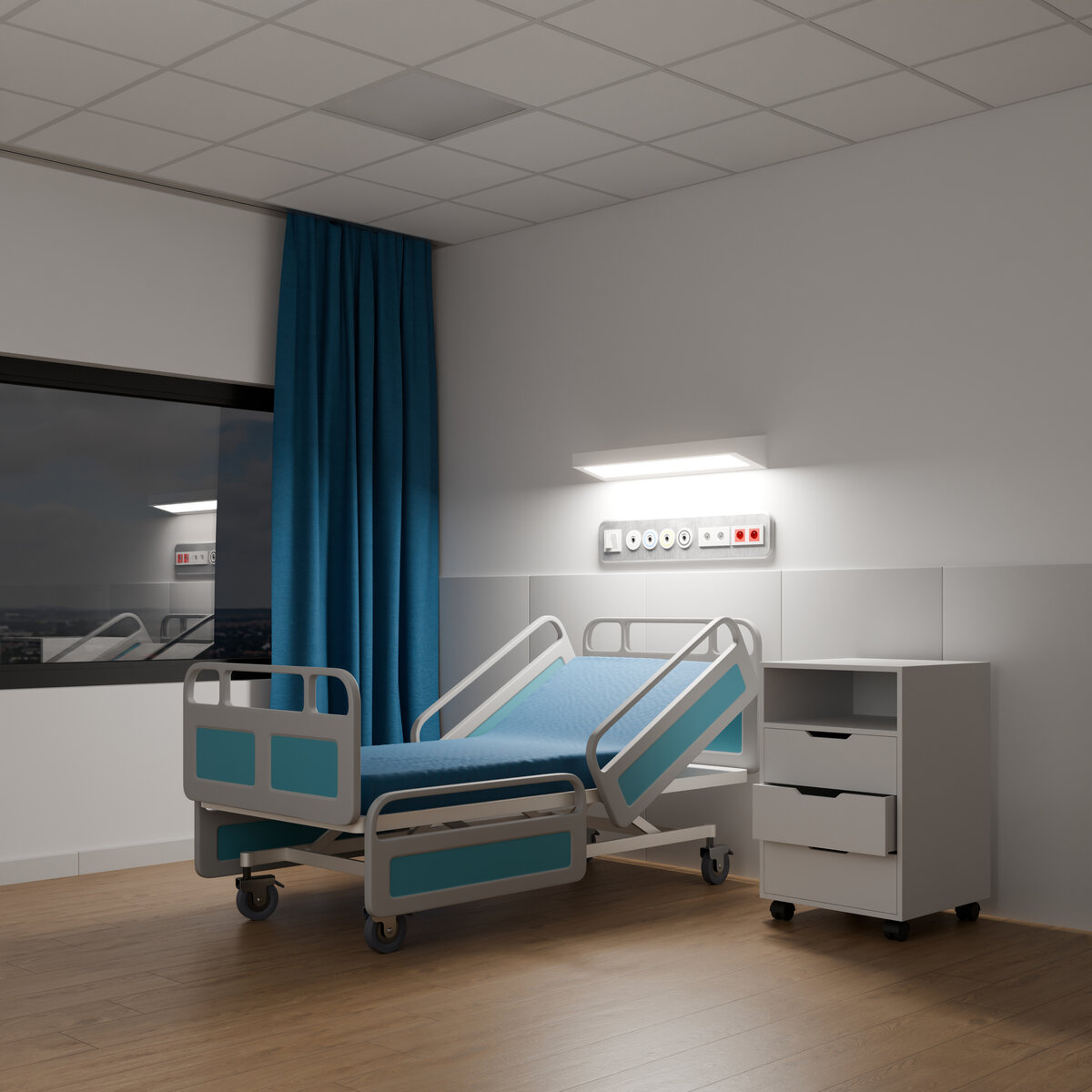

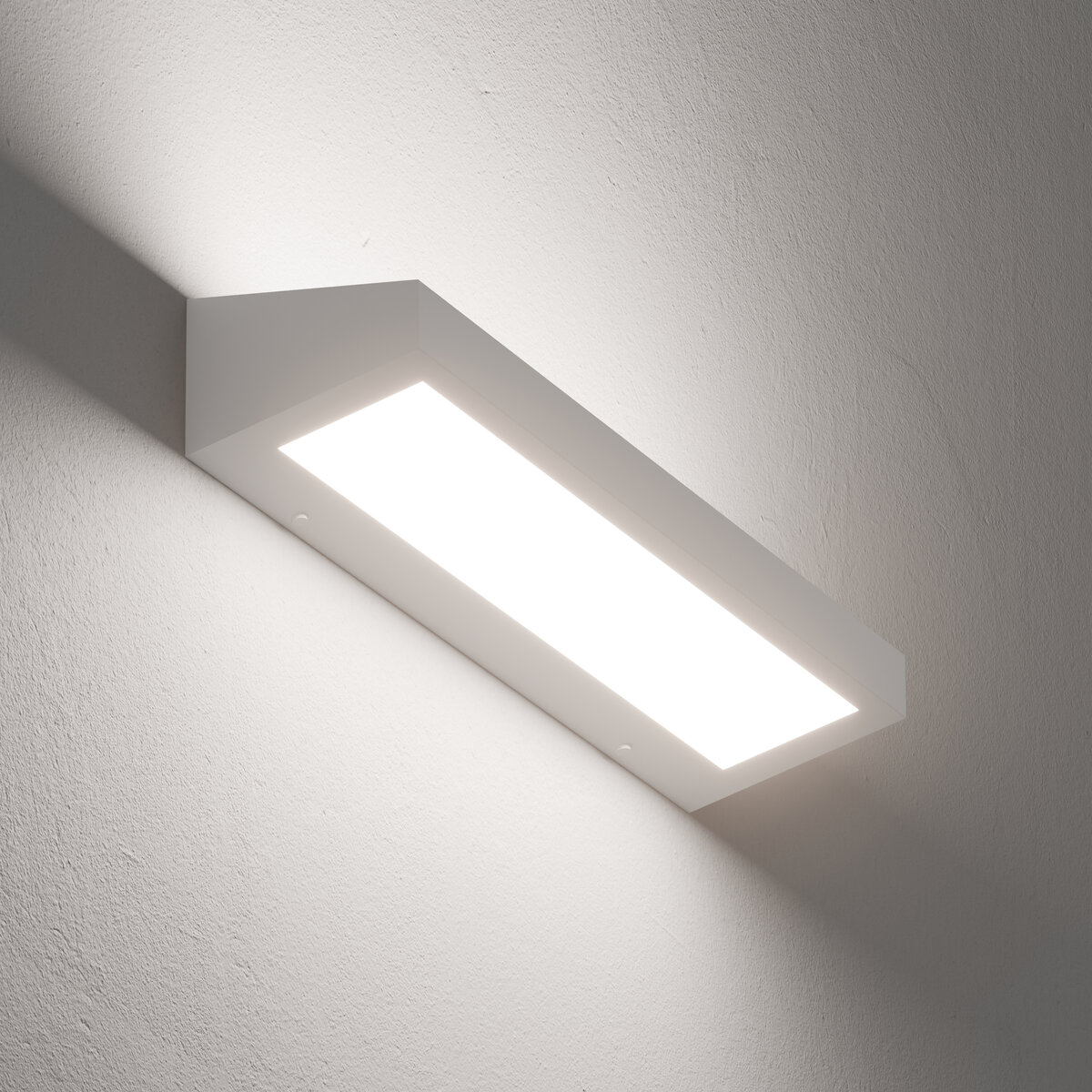

Bottom view - "reading" mode lighting - the luminaire emits a luminous flux directed straight at the patient.

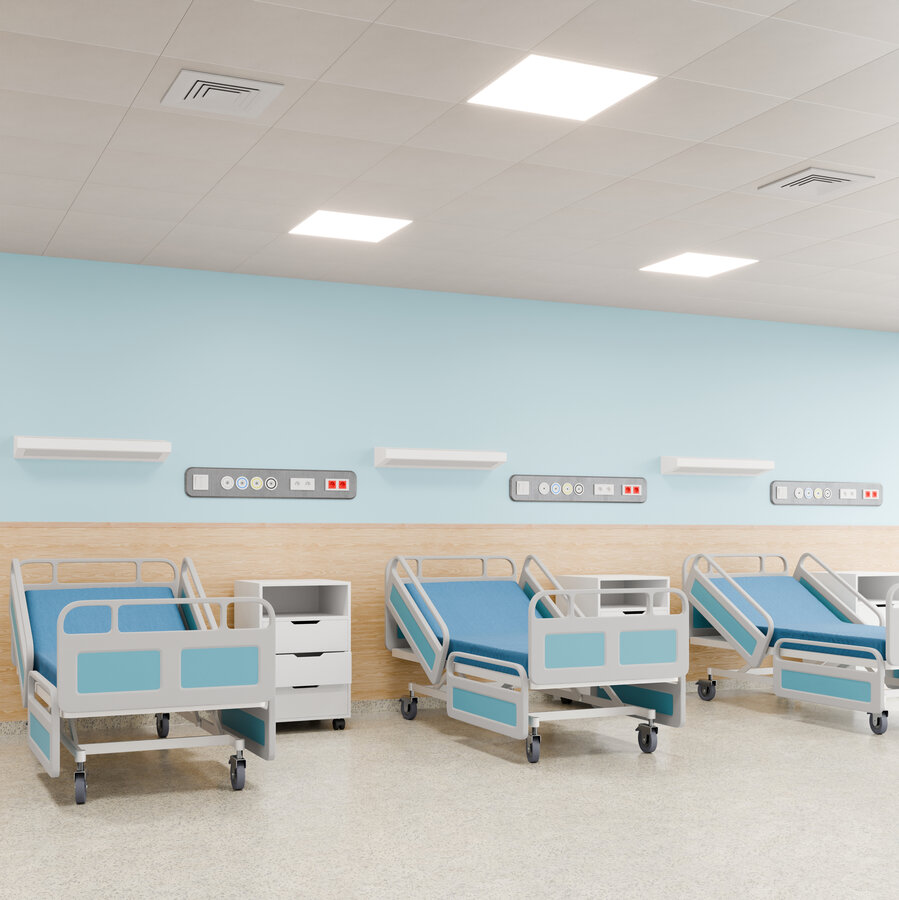

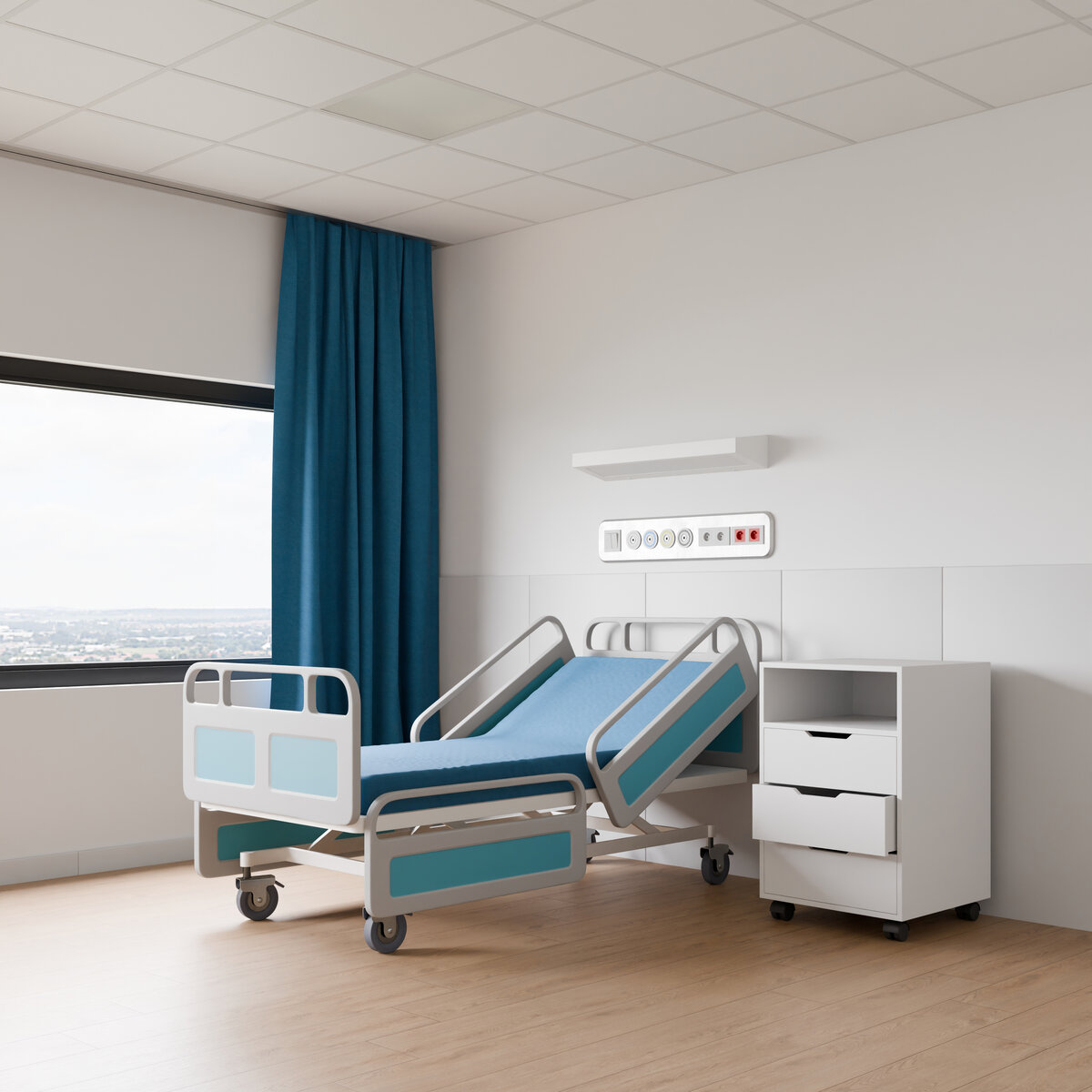

OFF

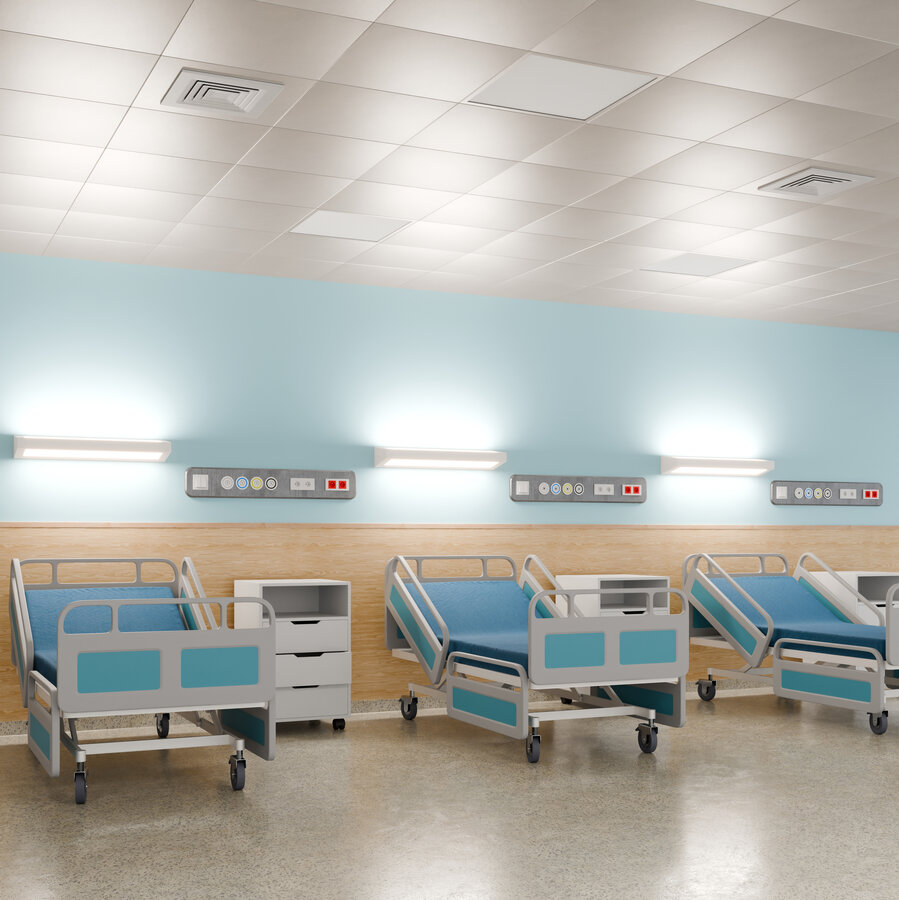

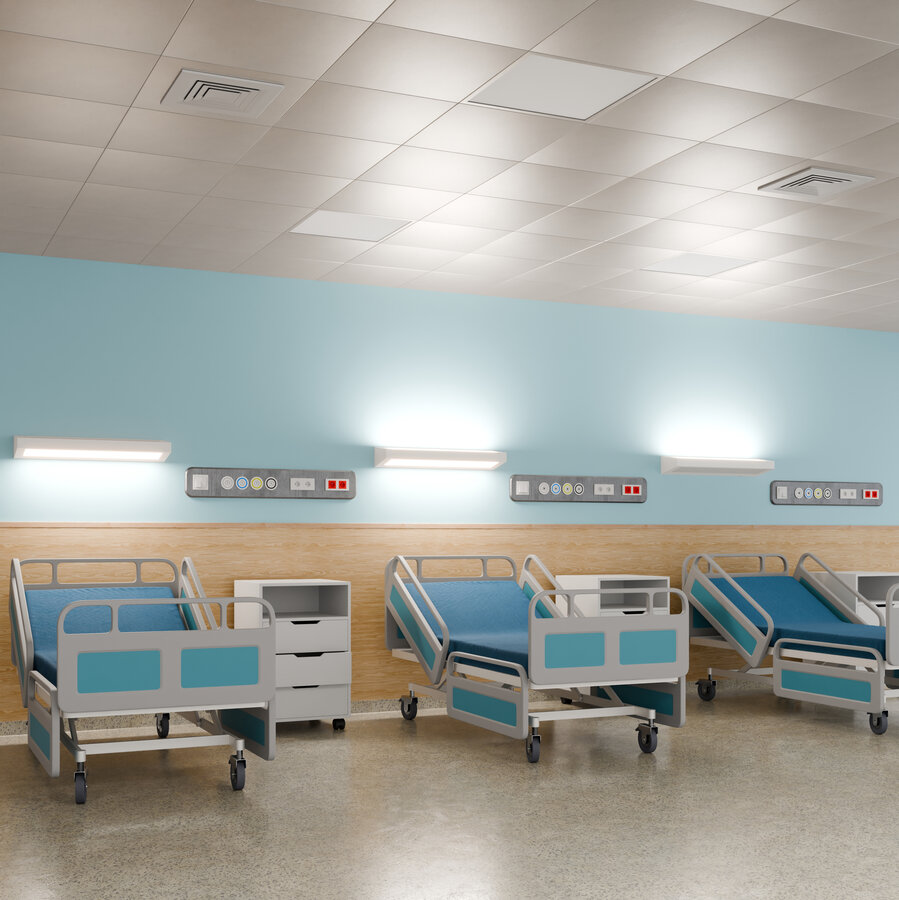

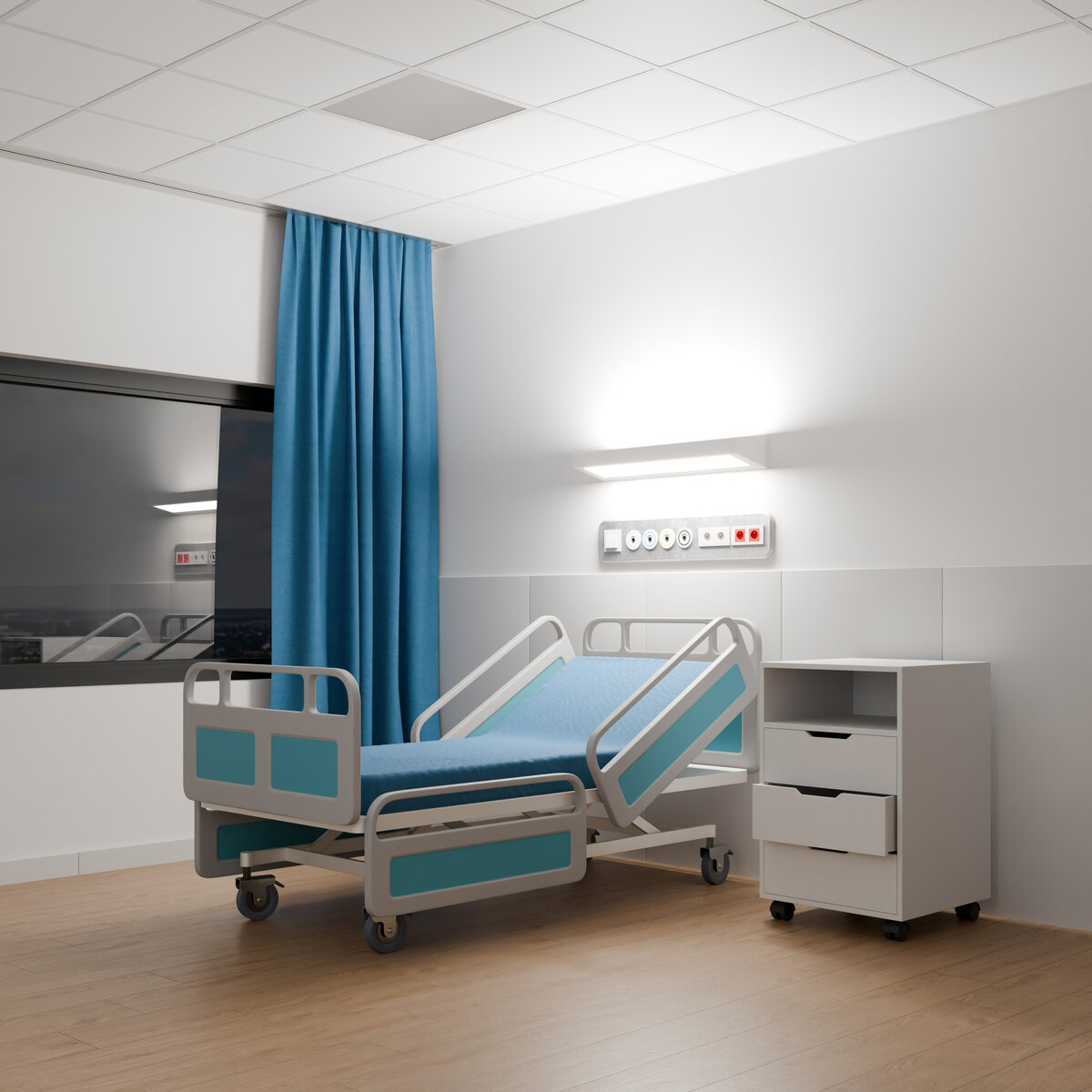

DI-IN
DI
IN
| Louver/ diffuser | OPAL |
| Diffuser colour | White |
| Diffuser material | Opal/mat plastic |
| Light source | LED |
| Luminaire power | 70 W |
| Type of equipment | AC |
| Through wiring | No |
| Type of driver | DALI, ON/OFF |
| Emergency module | option |
| Net weight | 3 kg |
| Colour | White |
| Power and luminous flux tolerance | +/-10% |
| Luminaire luminous flux DI | 3450 - 3630 lm |
| Luminaire luminous flux IN | 6250 - 6580 lm |
| Luminaire's luminous efficacy | 139 - 146 lm/W |
| Light colour | White |
| Color rendering index | 80 |
| Light distribution | DI/IN |
| MacAdam | SDCM 3 |
| Lifetime L80B10 @25°C | 100.000 h |
| Lifetime L90B10 @25°C | 64.000 h |
| Colour temperature | 3000K, 4000K |
| CRI & colour temperature | 830, 840 |
| Degree of protection (IP) | IP40 |
| Impact resistance | IK04 |
| Class of protection | I |
| Light source protection | yes |
| CE | yes |
| HACCP+ | yes |
