Sigma II Corner LED Y 36W 3610lm 830 OPAL White EM1H ST TH5

New LED lighting system designed for inline installation. It’s an elegant and efficient luminaire for lighting offices, conference rooms, receptions and other working spaces.

Linear

Sigma II Corner LED Y 36W 3610lm 830 OPAL White EM1H ST TH5

New LED lighting system designed for inline installation. It’s an elegant and efficient luminaire for lighting offices, conference rooms, receptions and other working spaces.

LED

ON/OFF

IP30

IK04

yes

yes

Basic information:

Index:

AS004.1111.830.A120

EAN:

5904312470436

Accessories:

Sigma II End cap PC, Sigma II LED Blank infill, Electric suspension kit, Sigma II/Sigma II GK/Velo/VIP/VIP GK Linear joining set, Suspension kit 1x

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Linear

Application:

Office, Conference room, Corridor and staircase, Reception, Commercial premises, Lecture hall, Classroom, Computer lab

Mounting type:

Pendant

Technical data

Sigma II Corner LED Y 36W 3610lm 830 OPAL White EM1H ST TH5

PRODUCT CODE

AS004.1111.830.A120

Copy the code

PRODUCT EAN

5904312470436

Copy the EAN code

Mechanical data

Housing material	Aluminum
Designed for light-line	yes

Optical data

Louver/ diffuser	OPAL
Diffuser colour	White
Diffuser material	Opal/mat plastic
UGR	14

Electrical data

Light source	LED
Luminaire power	36 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	TH5
Type of driver	ON/OFF
Emergency module	EM1H ST
Motion sensor	No

Information data

Net weight	3.9 kg
Colour	White
Power and luminous flux tolerance	+/-10%

Light data

Luminaire luminous flux	3610 lm
Luminaire's luminous efficacy	100 lm/W
Color rendering index	80

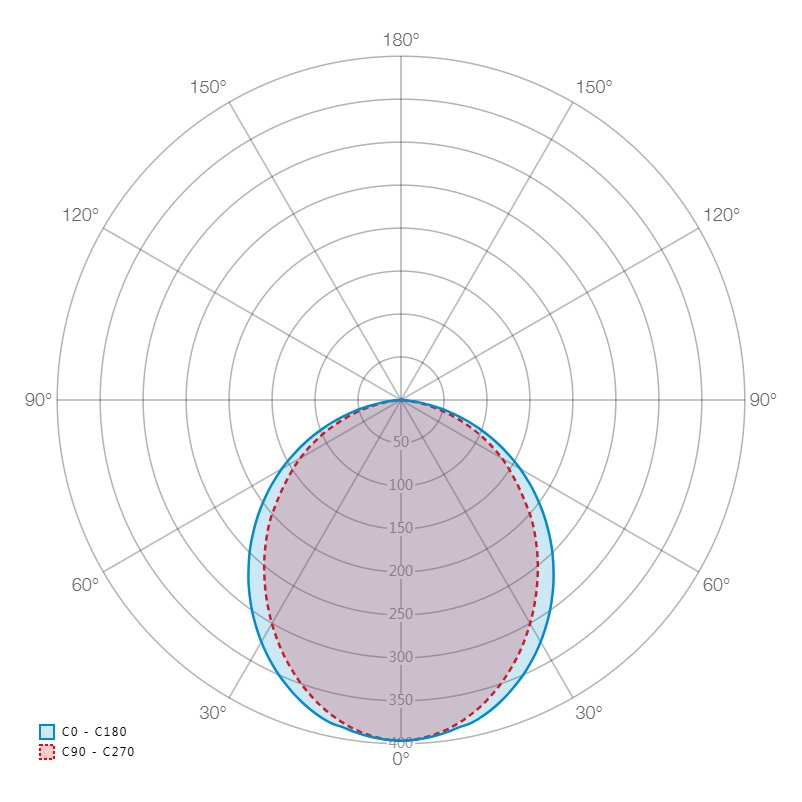

Light distribution	DI
MacAdam	SDCM 3
Lifetime L80B10 @25°C	100.000 h
Lifetime L90B10 @25°C	64.000 h
Colour temperature	3000K
CRI & colour temperature	830

Certificates

Degree of protection (IP)	IP30
Impact resistance	IK04
Class of protection	I
Light source protection	yes
CE	yes
HACCP+	yes

Dimensions

L	W	H
550 mm	550 mm	75 mm

L - Length

W - Width

H - Height / Depth

Catalogue card

Download

Family datasheet

Download

Family datasheet extended

Download

Installation manual

312.94 KB

Download

EC Declaration of conformity

Download

Download all files

Structural elements

Sigma II End cap PC

Sigma II LED Blank infill

Electric elements

Electric suspension kit

Connecting elements

Sigma II/Sigma II GK/Velo/VIP/VIP GK Linear joining set

Installation elements

Suspension kit 1x
