Linear
Vigo GK LED

Vigo LED is a modern, high-efficiency linear luminaire designed for both individual installation and continuous light-line configurations. Its compact, lightweight construction minimizes aluminum use while ensuring excellent mechanical stability and thermal performance. A wide selection of optical variants allows precise adaptation to various applications – from offices and commercial spaces to private interiors. The modular system enables flexible arrangements tailored to architectural and functional requirements.

Constructed from a durable aluminum profile with PC optics, Vigo LED provides uniform light distribution and high visual comfort. Optional customizations include housing color, raster or diffuser type, and the integration of sensors or control modules on request. Combining performance, sustainability, and design flexibility, Vigo LED offers a comprehensive solution for contemporary lighting environments.

Linear
Vigo GK LED

Vigo LED is a modern, high-efficiency linear luminaire designed for both individual installation and continuous light-line configurations. Its compact, lightweight construction minimizes aluminum use while ensuring excellent mechanical stability and thermal performance. A wide selection of optical variants allows precise adaptation to various applications – from offices and commercial spaces to private interiors. The modular system enables flexible arrangements tailored to architectural and functional requirements.

Constructed from a durable aluminum profile with PC optics, Vigo LED provides uniform light distribution and high visual comfort. Optional customizations include housing color, raster or diffuser type, and the integration of sensors or control modules on request. Combining performance, sustainability, and design flexibility, Vigo LED offers a comprehensive solution for contemporary lighting environments.

Go to the variant list (7771)
Basic information:
Materials:

Electrostatically painted aluminum profile (standard colors: white, grey, black), parabolic louver made with polucarbonate: black PRS-B, white PRS-W, metallized PRS-M, microprismatic diffuser (MPRM) made of PMMA or OPAL diffuser.

Accessories:

End cap made of PC (two-piece), end cap made of aluminium, invisible linear joint, suspension (simple, electric)

Installation:

Recessed

Categorization:
Type of luminaire:
Linear
Application:
Office, Conference room, Corridor and staircase, Reception, Commercial premises, Lecture hall, Classroom, Computer lab
Mounting type:
Plasterboard recessed
Technical data:
See other technical data
Description of the product's family

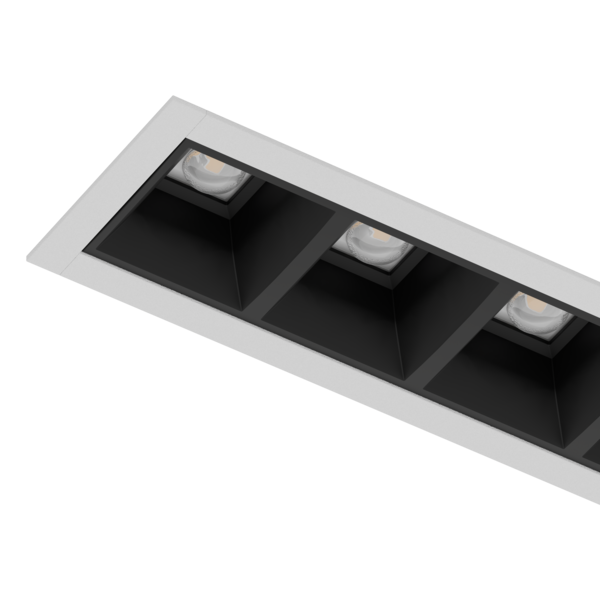

PRS-B

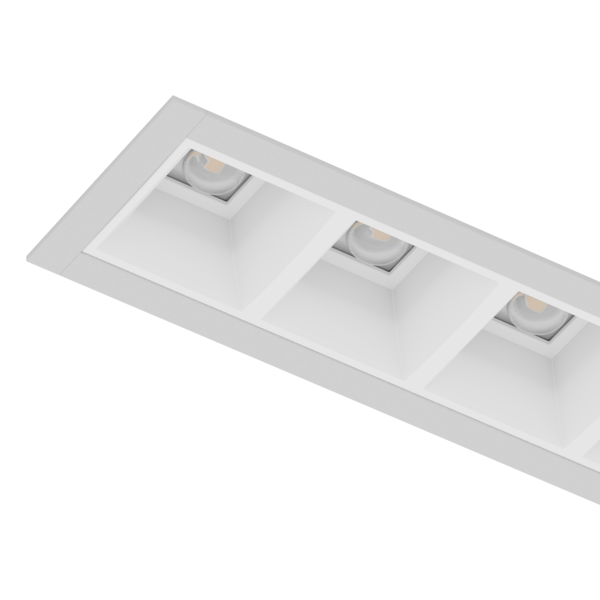

PRS-W

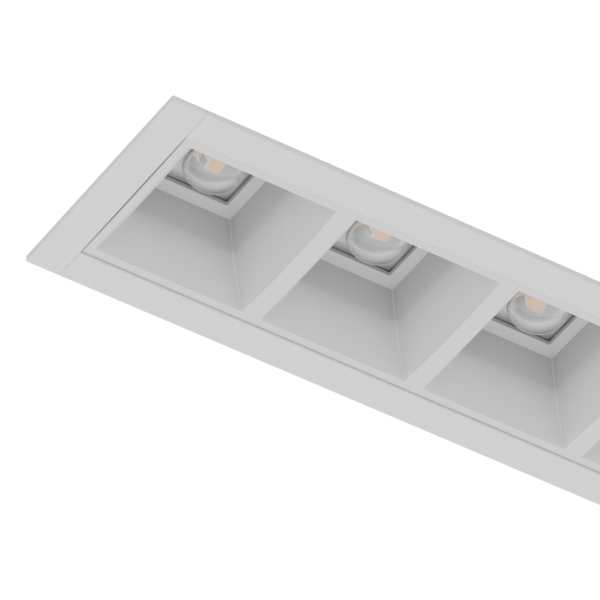

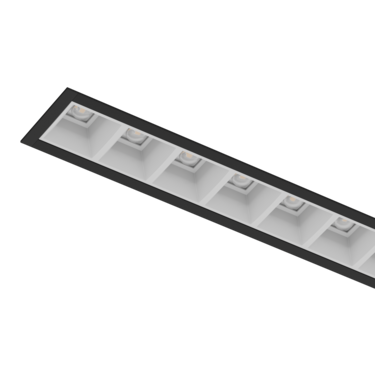

PRS-M

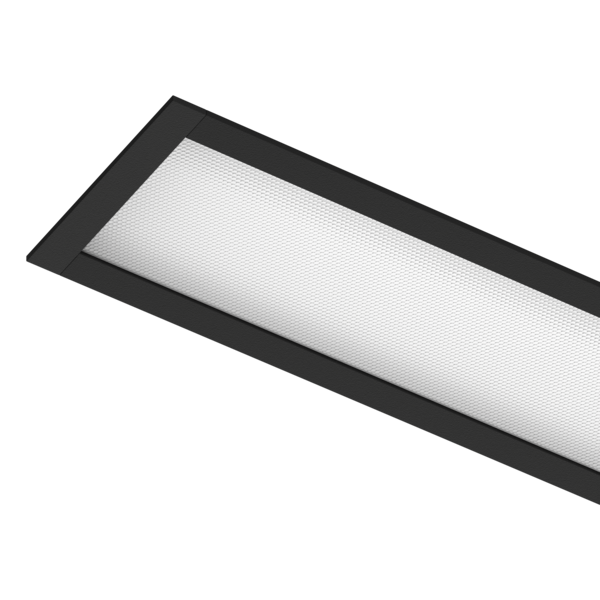

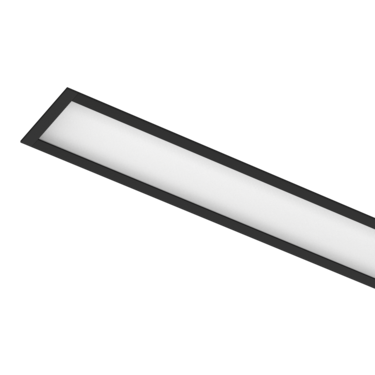

MPRM

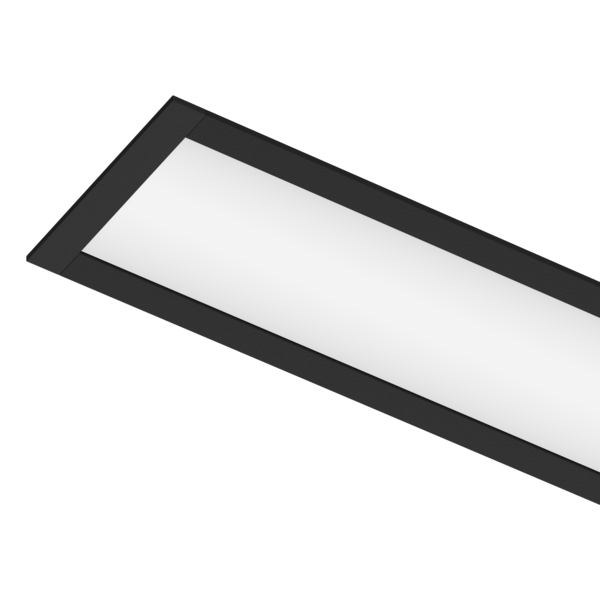

OPAL
MPOP

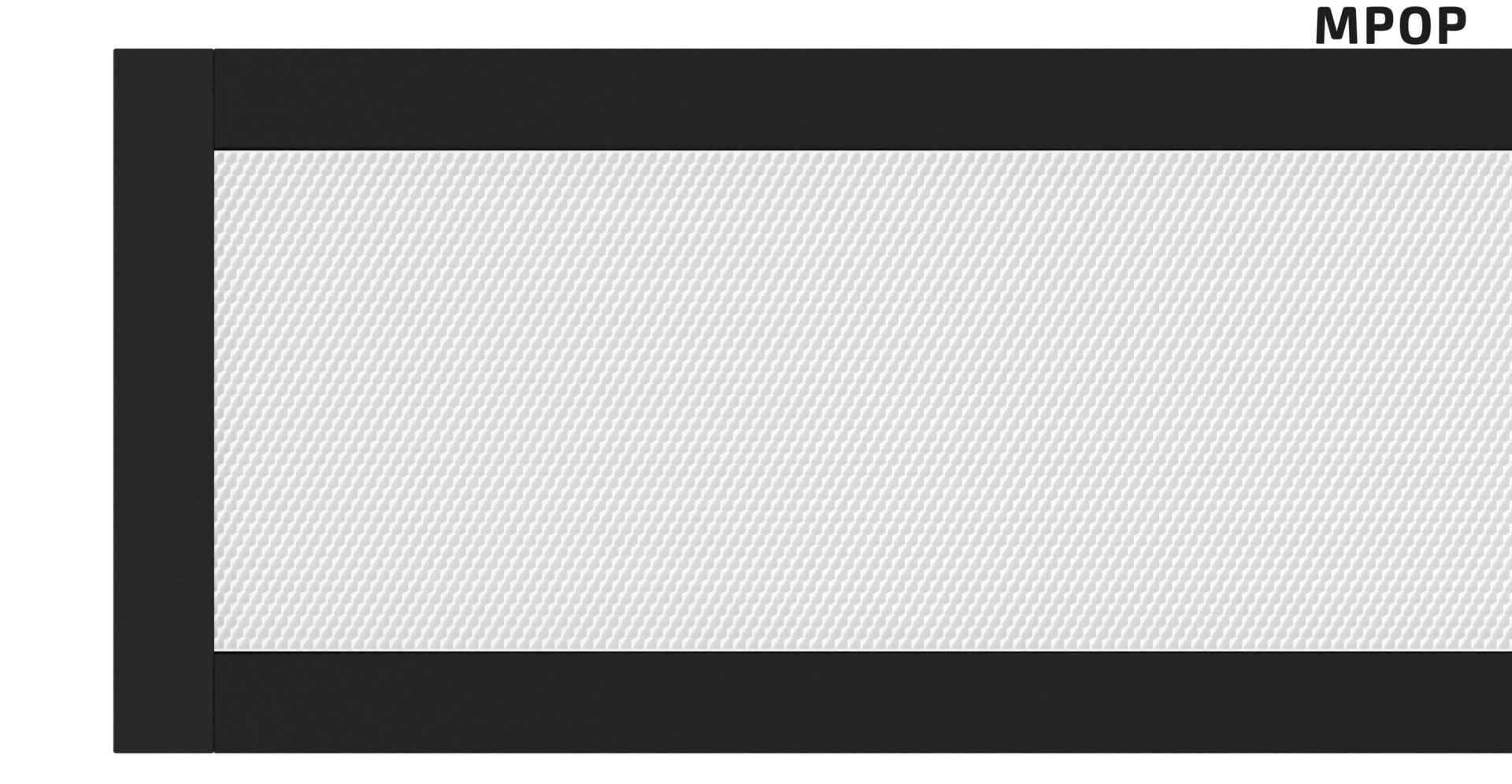

Zdjęcie po

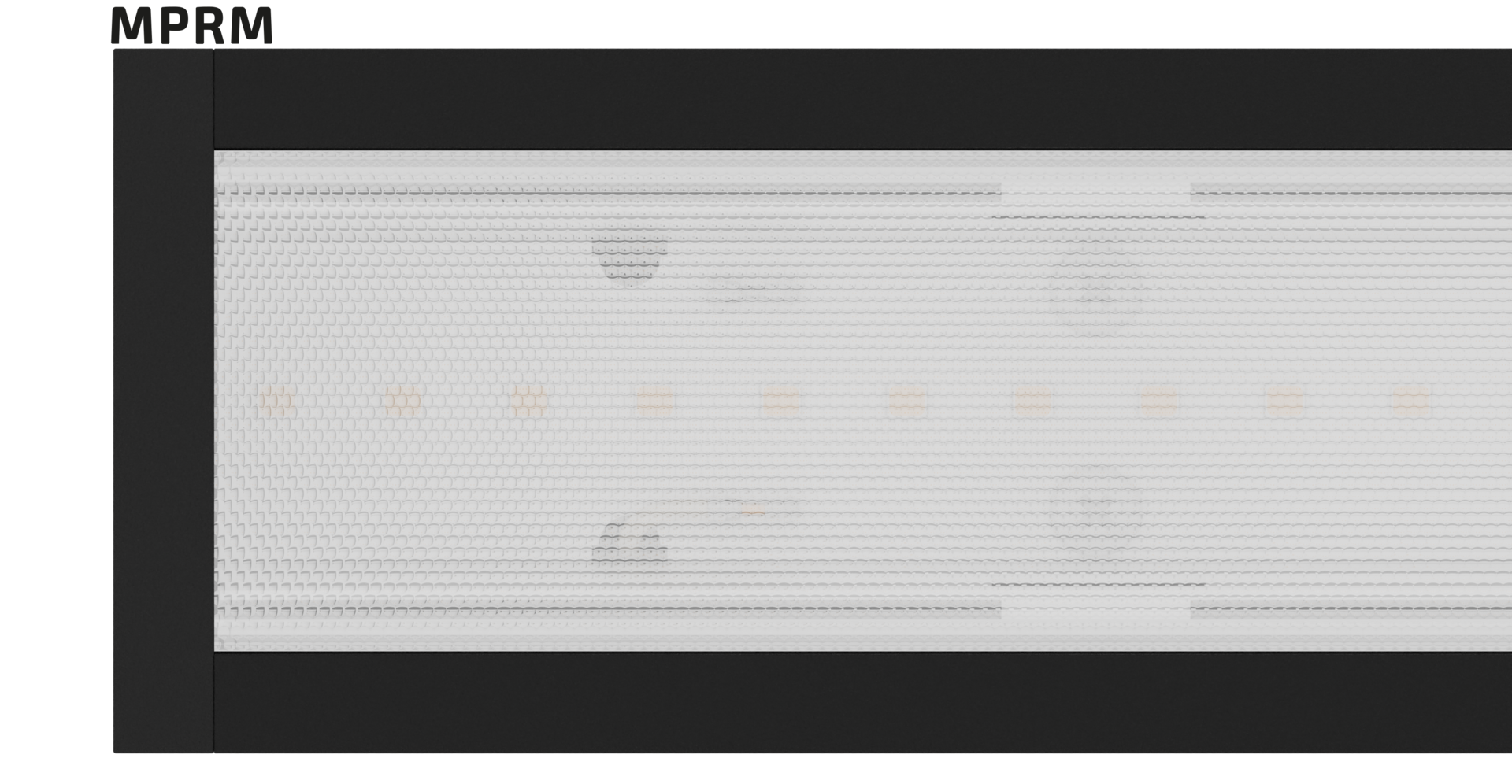

Zdjęcie przed
MPRM
MPOP

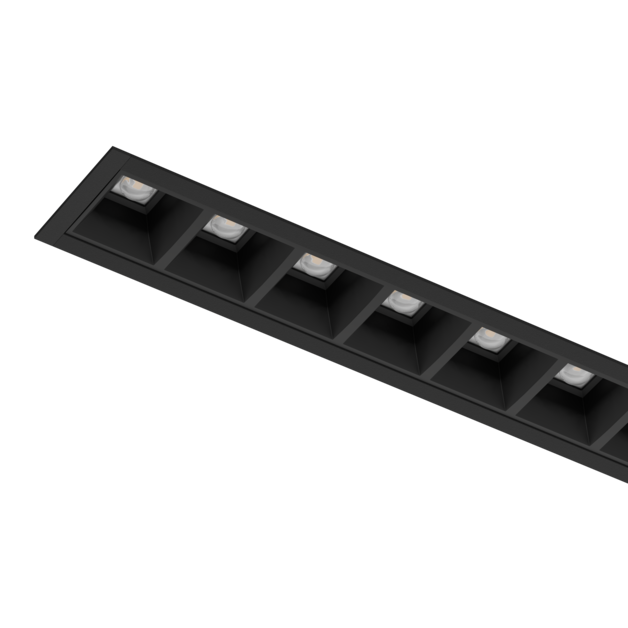

Recessed mounting - black version with PRS-B

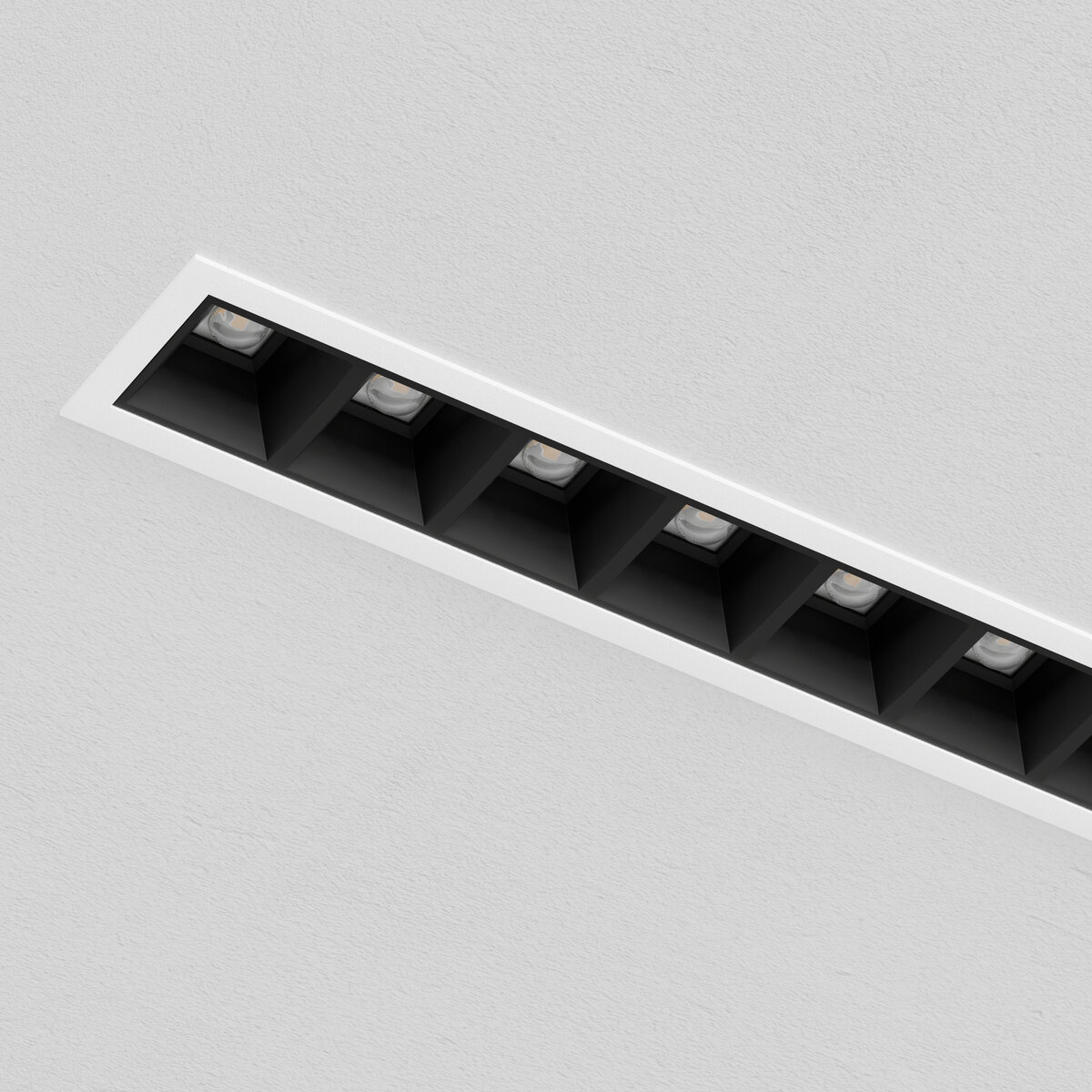

Recessed mounting - white version with PRS-B

Standard luminaires lengths.
Upon request, luminaires can be extended with a 280 mm PRS LED module.

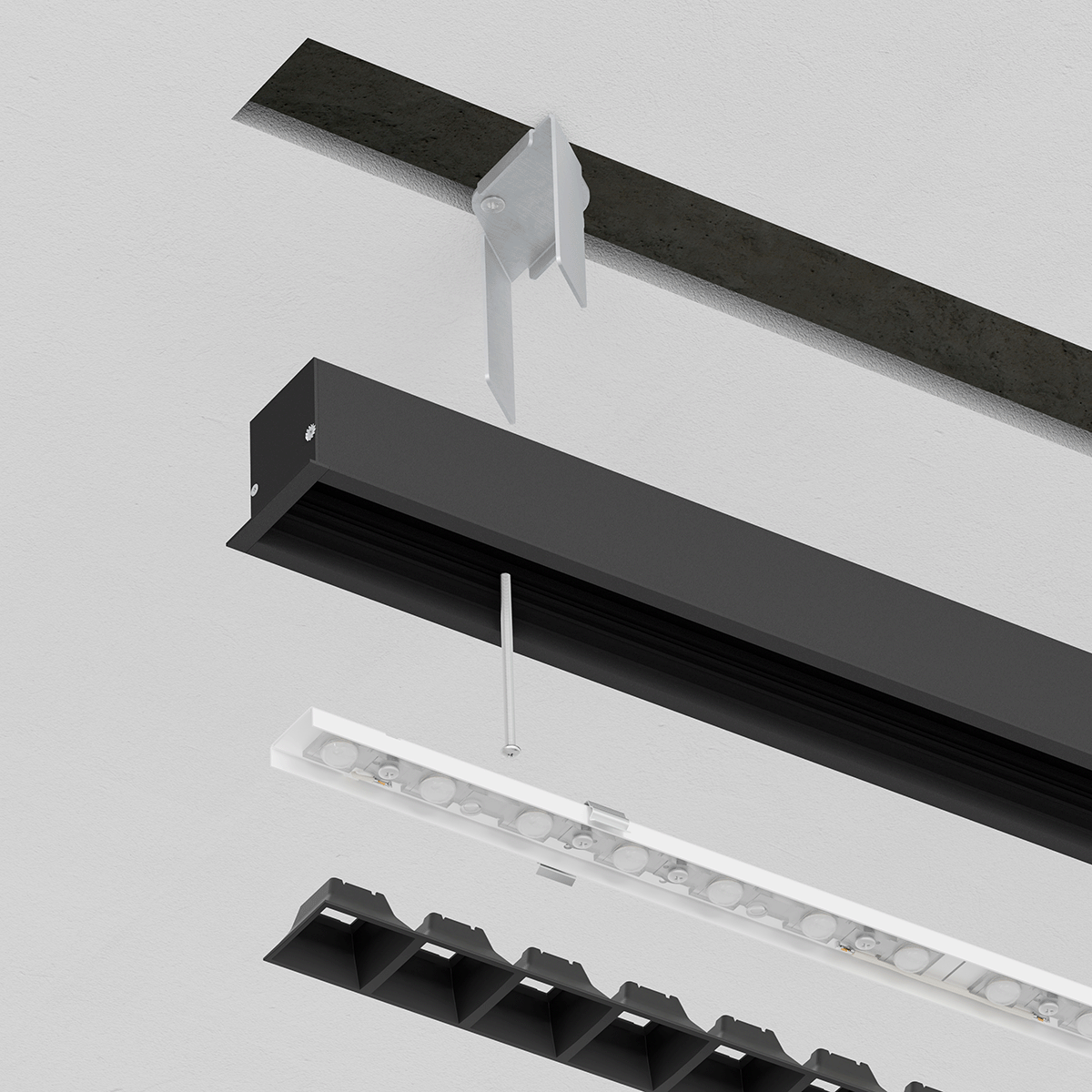

Easy installation

Technical data
Product variants
✕
Search
Filters (1)
How does the product indexing system work?
AA
002
.
22
11
.
830
.
D
0
0
0
Family
AA ALTO LED
AB ALTO WALL
Type
001 e.g.: 545 mm
002 e.g.: 1085 mm
Colour
11 WHITE RAL 9016
12 WHITE RAL 9010
22 GREY RAL 9006
33 BLACK RAL 9005
44 ANTHRACITE RALBG 452
45 ANTHRACITE RAL 7016
99 OTHER - PERSONALIZATION
Optical system
00 EMPTY
11 OPAL /MILK DIFFUSER/
22 MPRM /MICROPRISMATIC DIFFUSER/
23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/
24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/
33 PAR /PARABOLIC LOUVER/
34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/
44 mPARM /PARABOLIC MINI LOUVER METALLIZED/
45 PARW /PARABOLIC LOUVER WHITE/
46 mPARB /PARABOLIC MINI LOUVER BLACK/
66 RF /REFLECTOR/
67 RM /MATTE REFLECTOR/
68 RW /REFLECTOR WHITE/
77 LNS /LENS/
88 SH MAT /MATTE TEMPERED GLASS/
89 SH /TEMPERED GLASS/
CRI / Colour temp.
827
830 CRI ≥ 80; CCT 3000K
835 CRI ≥ 80; CCT 3500K
840 CRI ≥ 80; CCT 4000K
850 CRI ≥ 80; CCT 5000K
857 CRI ≥ 80; CCT 5700K
865 CRI ≥ 80; CCT 6500K
8TW CRI ≥ 80; Tunable white
927 CRI ≥ 90; CCT 2700K
930 CRI ≥ 90; CCT 3000K
935 CRI ≥ 90; CCT 3500K
940 CRI ≥ 90; CCT 4000K
950 CRI ≥ 90; CCT 5000K
957 CRI ≥ 90; CCT 5700K
965 CRI ≥ 90; CCT 6500K
9TW CRI ≥ 90; Tunable white
RGB RGB
Driver
A ON/OFF /WITHOUT REGULATION/
D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/
H HO /DRIVER WITH PREDEFINED SETTING/
E HE /DRIVER WITH PREDEFINED SETTING/
F HO DALI /DRIVER WITH PREDEFINED SETTING/
G HE DALI /DRIVER WITH PREDEFINED SETTING/
K DSI
I CF /CORRIDOR FUNCTION - STEP DIMMING/
C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/
X DMX
S sDIMM
V 1-10V /ADJUSTABLE/
Emergency module
0 WITHOUT EMERGENCY MODULE
1 EM1H ST /SELFTEST/
2 EM3H ST /SELFTEST/
3 EM1H BASIC
4 EM3H BASIC
5 EM1H PRO /DALI/
6 EM3H PRO /DALI/
Through wiring
0 WITHOUT THROUGH WIRING
1 TH3 /3-PHASE THROUGH WIRING/
2 TH5 /5-PHASE THROUGH WIRING/
3 TH7 /7-PHASE THROUGH WIRING/
4 WI /WIELAND/
5 WI TH /THROUGH WIRING/
6 LW /THROUGH WIRING/
Motion sensor
0 WITHOUT MOTION SENSOR
1 MW PRO /PASSIVE INFRARED - STEP DIMM/
2 PIR /INFRARED/
Technical data
Dimensions
Filtering by parameters
Attribute filter: 1
New: yes
Parameters
Luminaire power
Show products
Luminous flux
Show products
CRI / Colour temp.
Select all
Reset
Show products
Optical system
Select all
Reset
Show products
Driver
Select all
Reset
Show products
Emergency module
Select all
Reset
Show products
Wiring
Select all
Reset
Show products
Motion sensor
Select all
Reset
Show products
Colour
Select all
Reset
Show products
Length
Show products
Type of family
Select all
Reset
Show products
Index
Luminaire power
Luminaire luminous flux
Luminaire's luminous efficacy
Louver/ diffuser
[Optical system]
CRI & colour temperature
Colour
Type of driver
Emergency module
Through wiring
Motion sensor
Type of family
IA004.1111.830.A000
Copy the code
Open in new window
15 W 1770 lm 118 lm/W OPAL 830
White
 ON/OFF No No No 560
IA004.1111.830.A001
Copy the code
Open in new window
15 W 1770 lm 118 lm/W OPAL 830
White
 ON/OFF No No MW 560
IA004.1111.830.A020
Copy the code
Open in new window
15 W 1770 lm 118 lm/W OPAL 830
White
 ON/OFF No TH5 No 560
IA004.1111.830.A021
Copy the code
Open in new window
15 W 1770 lm 118 lm/W OPAL 830
White
 ON/OFF No TH5 MW 560
IA004.1111.830.D000
Copy the code
Open in new window
15 W 1770 lm 118 lm/W OPAL 830
White
 DALI No No No 560
IA004.1111.830.D020
Copy the code
Open in new window
15 W 1770 lm 118 lm/W OPAL 830
White
 DALI No TH5 No 560
IA004.1111.840.A000
Copy the code
Open in new window
15 W 1850 lm 123 lm/W OPAL 840
White
 ON/OFF No No No 560
IA004.1111.840.A001
Copy the code
Open in new window
15 W 1850 lm 123 lm/W OPAL 840
White
 ON/OFF No No MW 560
IA004.1111.840.A020
Copy the code
Open in new window
15 W 1850 lm 123 lm/W OPAL 840
White
 ON/OFF No TH5 No 560
IA004.1111.840.A021
Copy the code
Open in new window
15 W 1850 lm 123 lm/W OPAL 840
White
 ON/OFF No TH5 MW 560
IA004.1111.840.D000
Copy the code
Open in new window
15 W 1850 lm 123 lm/W OPAL 840
White
 DALI No No No 560
IA004.1111.840.D020
Copy the code
Open in new window
15 W 1850 lm 123 lm/W OPAL 840
White
 DALI No TH5 No 560
IA004.1111.930.A000
Copy the code
Open in new window
15 W 1520 lm 101 lm/W OPAL 930
White
 ON/OFF No No No 560
IA004.1111.930.A001
Copy the code
Open in new window
15 W 1520 lm 101 lm/W OPAL 930
White
 ON/OFF No No MW 560
IA004.1111.930.A020
Copy the code
Open in new window
15 W 1520 lm 101 lm/W OPAL 930
White
 ON/OFF No TH5 No 560
Displaying items: 15 of 7771
of 519
15
15
50
100

per page

Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
438.3 KB
Download
EC Declaration of conformity
Download
Photometric file
407.33 KB
Download
Download all files
Accessories
Structural elements
Accessories
Vigo GK LED ALU End cap
Connecting elements
Accessories
Vigo LED Linear joint set
