Vigo DLN LED

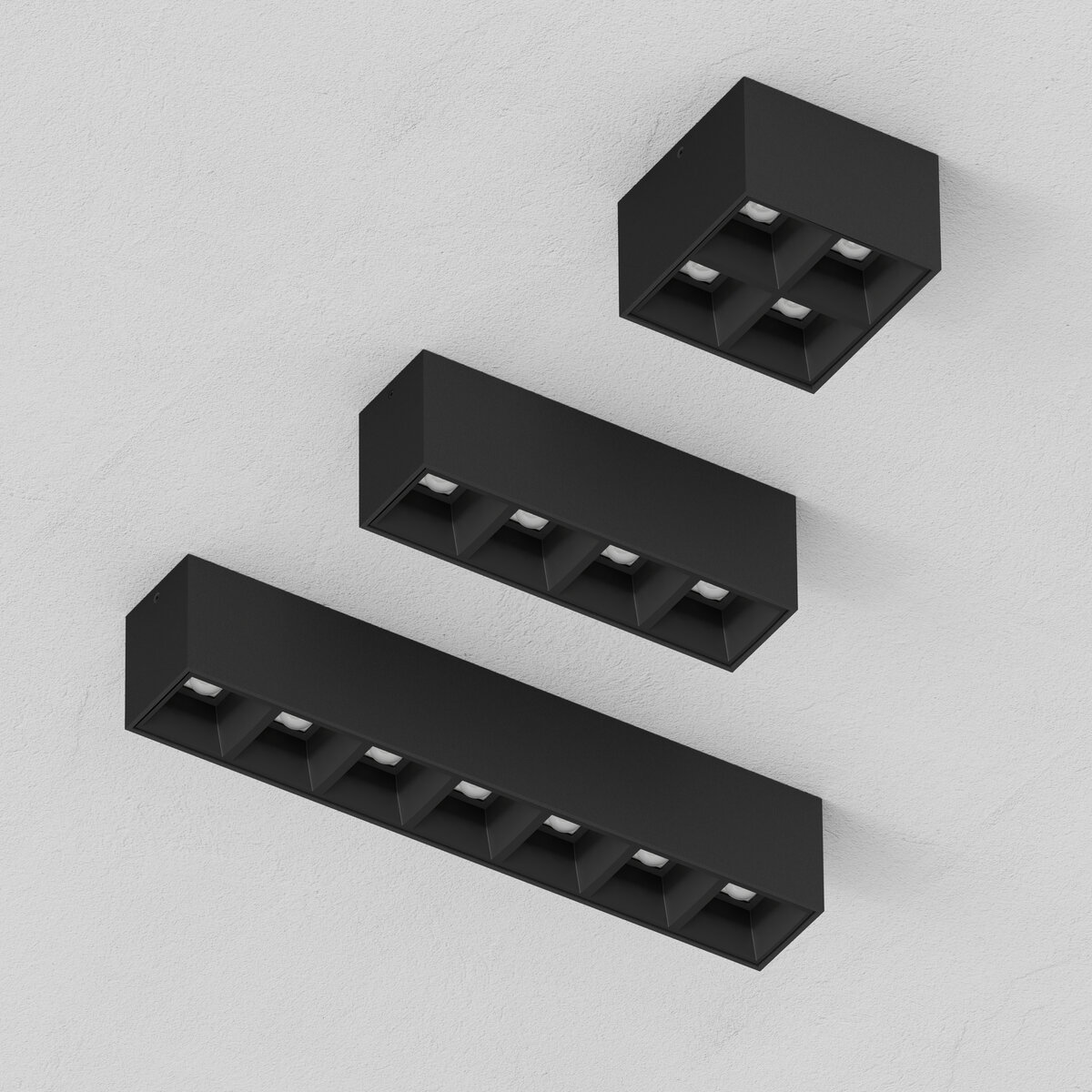

Surface-mounted luminaire provides glare-free lighting for workstations (low UGR) with high visual comfort.

Optional customizations include housing color, raster type. VIGO DLN LED combined with other VIGO LED series luminaires offers a comprehensive solution for modern lighting environments.

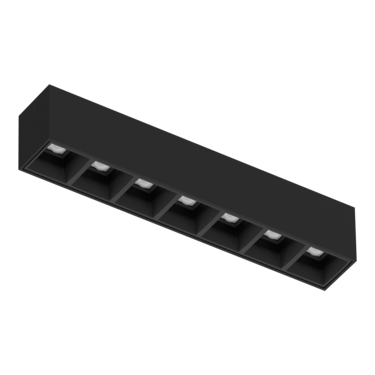

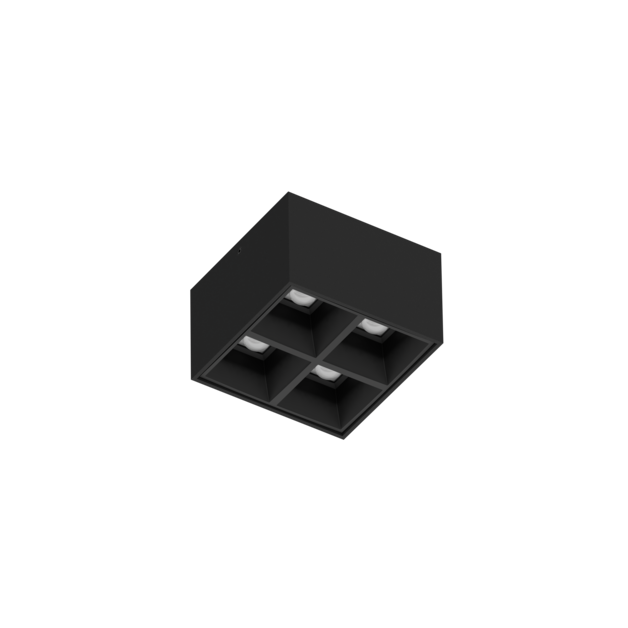

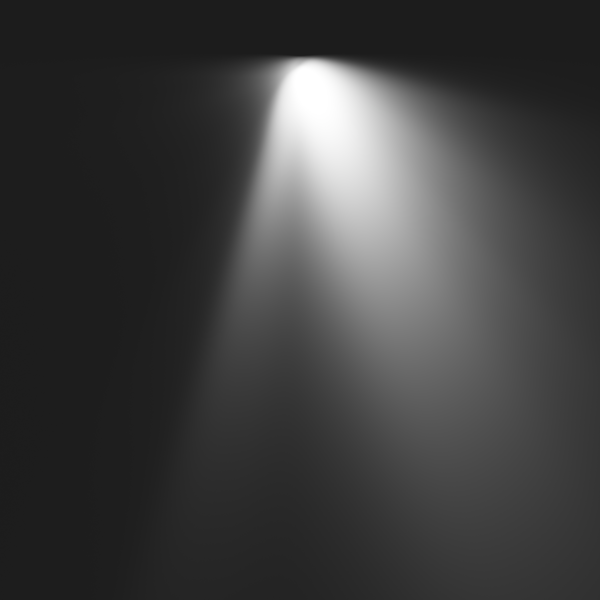

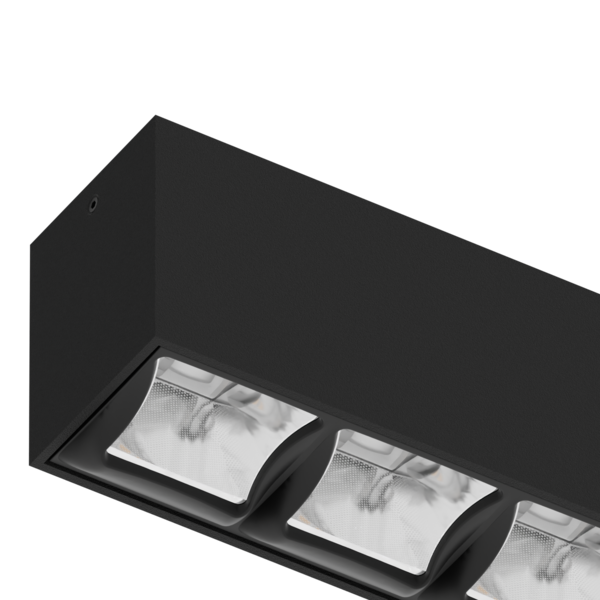

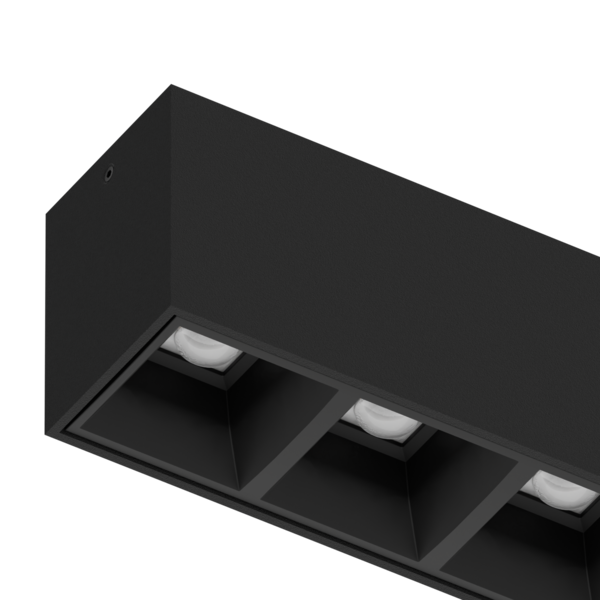

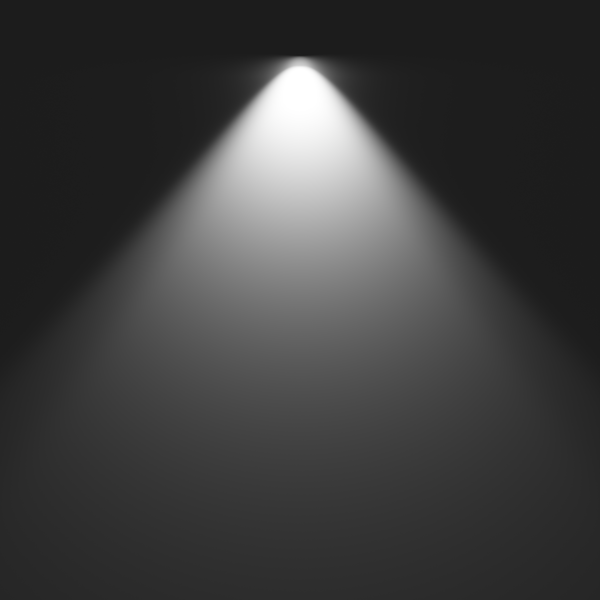

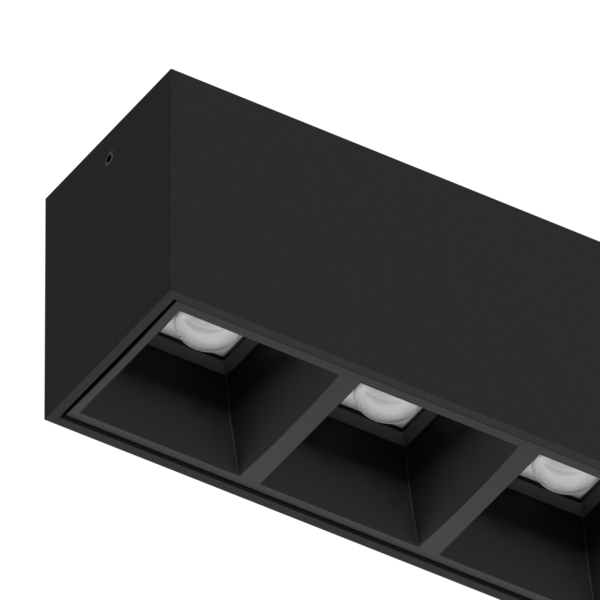

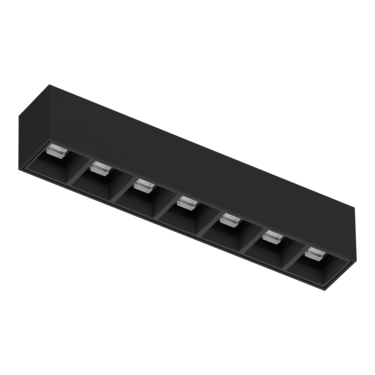

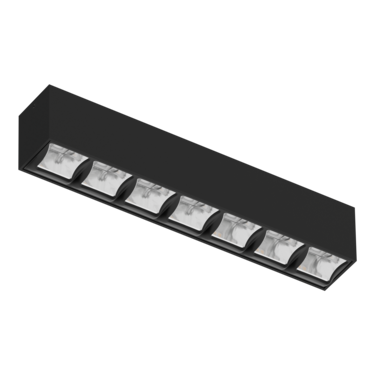

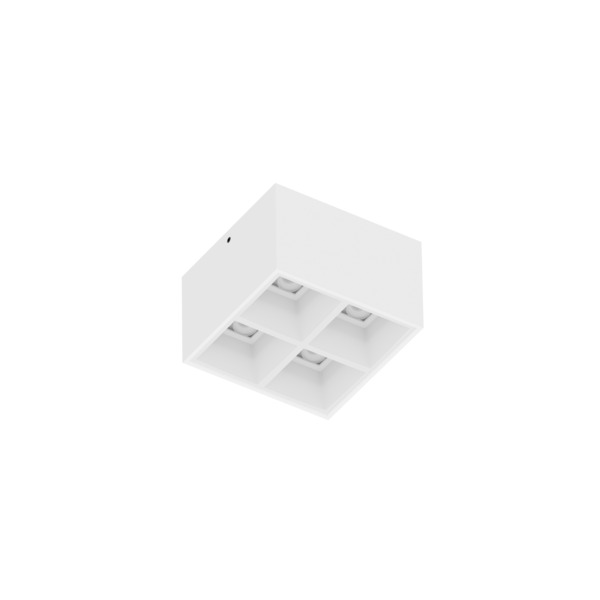

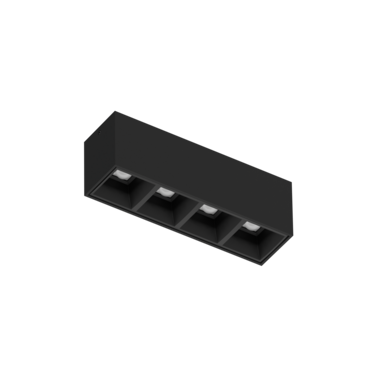

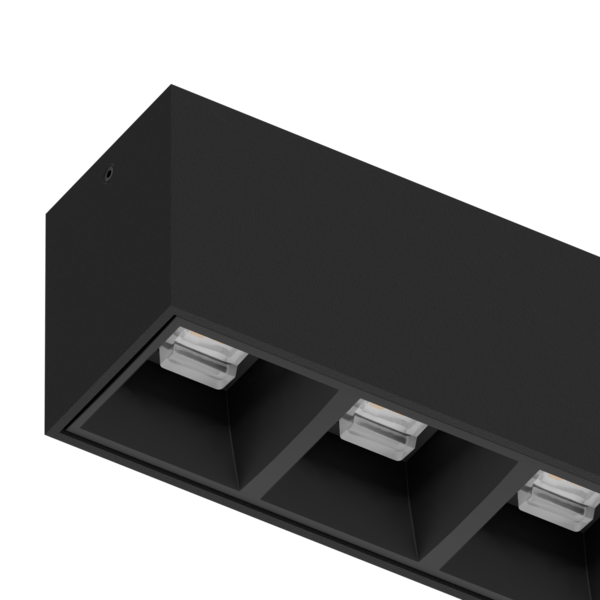

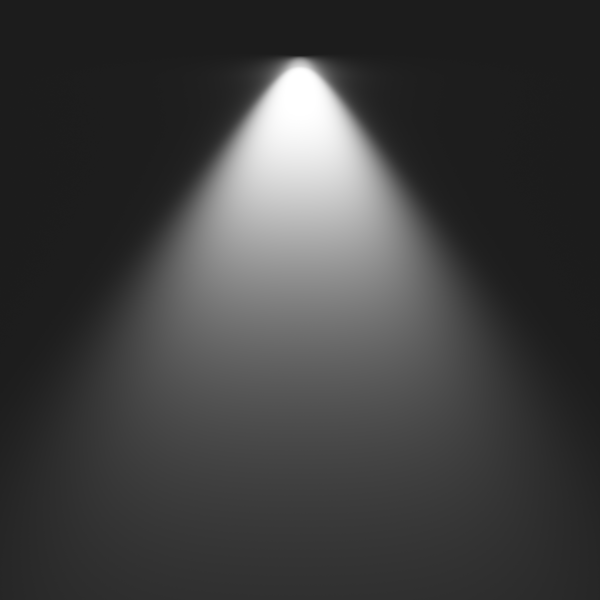

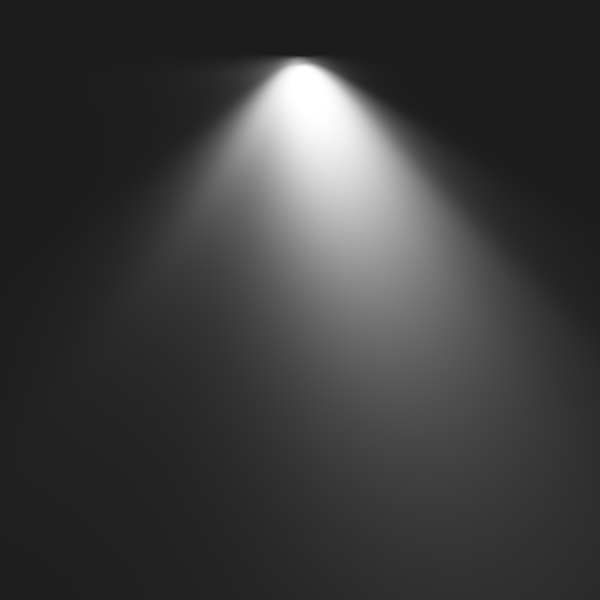

Optical systems made of polycarbonate in the form of black PRS-B and white PRS-W parabolic louvers providing light distribution: 65°, 80°, AS - asymmetric, WW - wall washer. Three varieties available: 160, 280 and 80x80.

Downlight

Vigo DLN LED

Surface-mounted luminaire provides glare-free lighting for workstations (low UGR) with high visual comfort.

Optional customizations include housing color, raster type. VIGO DLN LED combined with other VIGO LED series luminaires offers a comprehensive solution for modern lighting environments.

Optical systems made of polycarbonate in the form of black PRS-B and white PRS-W parabolic louvers providing light distribution: 65°, 80°, AS - asymmetric, WW - wall washer. Three varieties available: 160, 280 and 80x80.

Go to the variant list (1145)

LED

IP20

IK04

Oui

Oui

Basic information:

Matériau:

profil en aluminium peint électrostatiquement (standard: blank, gris, noir), raster parabolique: noir PRS-B, blank PRS-W, métallique PRS-M, glace microprismatique (MPRM) en PMMA ou Glace OPAL.

Montage:

suspendu, plafonnier

Power:

220 ... 240 V

Categorization:

Selon le type de luminaire:

Downlight

Selon application:

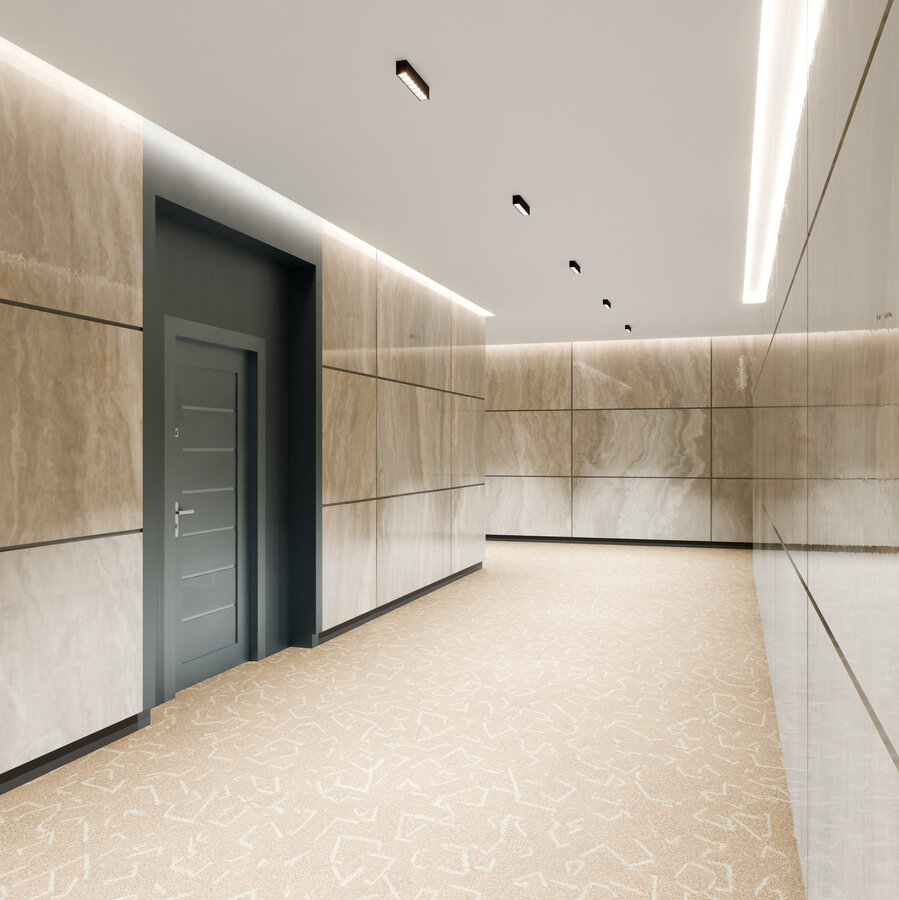

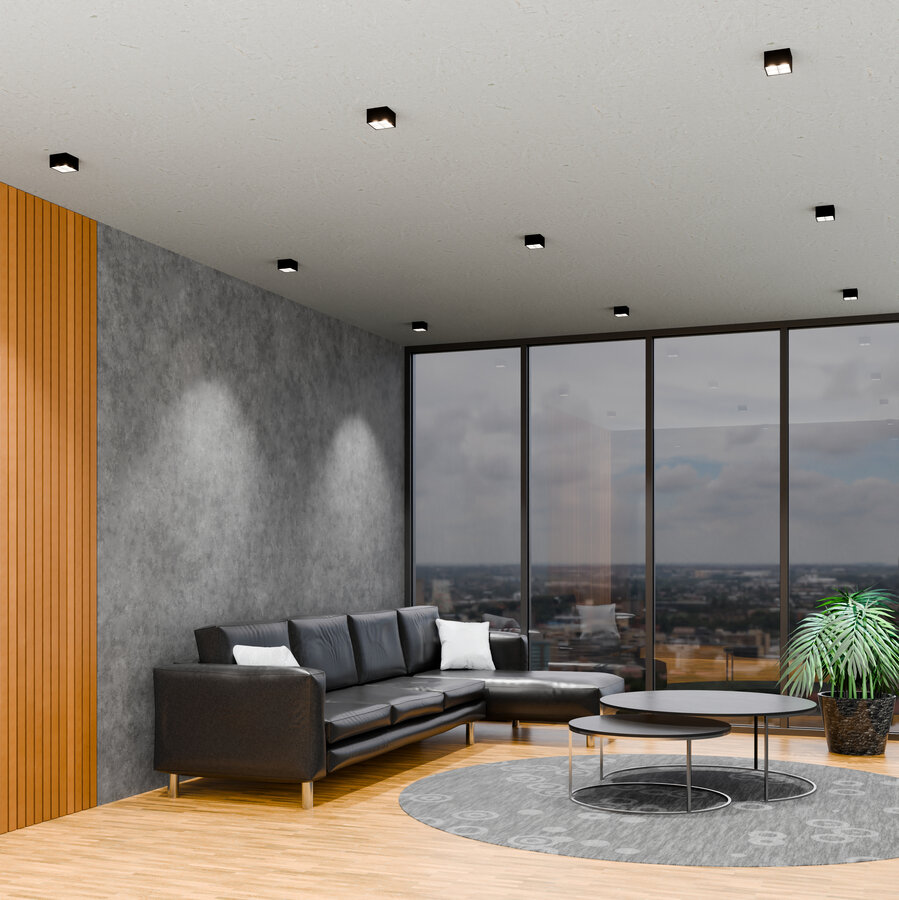

Espace bureau, Conférence, Couloirs, escaliers, Salles d’attente, comptoirs d’accueil, Locaux commerciaux, Amphithéâtres, Classes, Laboratoires informatiques

Typ de montage:

Au plfond

Technical data:

Luminaire power:

5.4 - 15.8 W

Flux lumineux du luminaire:

445 - 2195 lm

Longueur:

85 mm, 164 mm, 284 mm

Raster / diaphragme:

PRS-B, PRS-W

Temperatu re de couleur / CRI:

830, 840, 930, 940

Couleur:

Noir, blanc, gris

See other technical data

Description de la famille de produits

280; 160; 80x80

80x80 PRS-B

80x80 PRS-W

65° (Medium Power)

80° (Medium Power)

AS (Medium Power)

WW (Medium Power)

65° (Medium Power)

80° (Medium Power)

AS (Medium Power)

WW (Medium Power)

Technical data

Données mécaniques

Matériau du caisson

Aluminium

Données optiques

Raster / diaphragme	PRS-B, PRS-W
Couleur de la glace/du couvercle	Absence
Matériau de la glace	Matière plastique transparente
Matériau du grille	Matière plastique
UGR	15, 16, 17, 18, 19, 20, 21, 22

Données électriques

Source lumineuse	LED
Puissance du luminaire	5.4 - 15.8 W
Variante de puissance	HP, LP, MP
Type d'équipement	Alimentation
Tension nominale	220 ... 240 V
Through wiring	Non
Type of driver	DALI, ON/OFF

Information data

Net weight	0.34 - 1.2 kg
Couleur	Noir, blanc, gris
Power and luminous flux tolerance	+/-10%

Données lumineuses

Flux lumineux du luminaire	445 - 2195 lm
Efficacité lumineuse du luminaire	66 - 148 lm/W
Indice de rendu des couleurs	80, 90
Distribution lumineuse	DI
MacAdam	SDCM 3
L80B10 @25°C	100.000 h
L90B10 @25°C	64.000 h
Temperature de couleur	3000K, 4000K
Temperatu re de couleur / CRI	830, 840, 930, 940

Certificats et marquages

Niveau de protection (IP)	IP20
Résistance à l'impact	IK04
Classe de protection	I
CE	Oui
HACCP+	Oui

Product variants

✕

Search

Filters

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Couleur

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Système optique

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

51 PRS-M /PARABOLIC SQUARE LOUVER METALLIZED MAT/

52 PRS-W /PARABOLIC SQUARE LOUVER WHITE/

53 PRS-B /PARABOLIC SQUARE LOUVER BLACK/

54 PRC-M /PARABOLIC CIRCLE LOUVER METALLIZED MAT/

55 PRC-W /PARABOLIC CIRCLE LOUVER WHITE/

56 PRC-B /PARABOLIC CIRCLE LOUVER BLACK/

61 RMO /REFLECTOR MATTE + OPAL DIFFUSER/

62 RMM /REFLECTOR MATTE + MICROPRISMATIC DIFFUSER/

65 RG /REFLECTOR GOLD/

66 RF /REFLECTOR/

67 RM /MATTE REFLECTOR/

68 RW /REFLECTOR WHITE/

69 RB /REFLECTOR BLACK/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Temp. de couleur

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Alimentation

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

6 LW /THROUGH WIRING/

Capteur de mouvement

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

3 PIR DALI

4 PIR DALI SA

5 PIR CAS
