Surface-mounted luminaire provides glare-free lighting for workstations (low UGR) with high visual comfort.
Optional customizations include housing color, raster type. VIGO DLN LED combined with other VIGO LED series luminaires offers a comprehensive solution for modern lighting environments.
Surface-mounted luminaire provides glare-free lighting for workstations (low UGR) with high visual comfort.
Optional customizations include housing color, raster type. VIGO DLN LED combined with other VIGO LED series luminaires offers a comprehensive solution for modern lighting environments.
suspendu, plafonnier
| Matériau du caisson | Aluminium |
| Raster / diaphragme | PRS-W |
| Couleur de la glace/du couvercle | Absence |
| Matériau de la glace | Matière plastique transparente |
| Matériau du grille | Matière plastique |
| Système optique | 65° |
| UGR | 16 |
| Source lumineuse | LED |
| Puissance du luminaire | 5.4 W |
| Variante de puissance | LP |
| Type d'équipement | Alimentation |
| Tension nominale | 220 ... 240 V |
| Through wiring | Non |
| Type of driver | ON/OFF |
| Emergency module | Non |
| Capteur de mouvement | Non |
| Net weight | 0.34 kg |
| Couleur | blanc |
| Power and luminous flux tolerance | +/-10% |
| Flux lumineux du luminaire | 670 lm |
| Efficacité lumineuse du luminaire | 124 lm/W |
| Indice de rendu des couleurs | 80 |

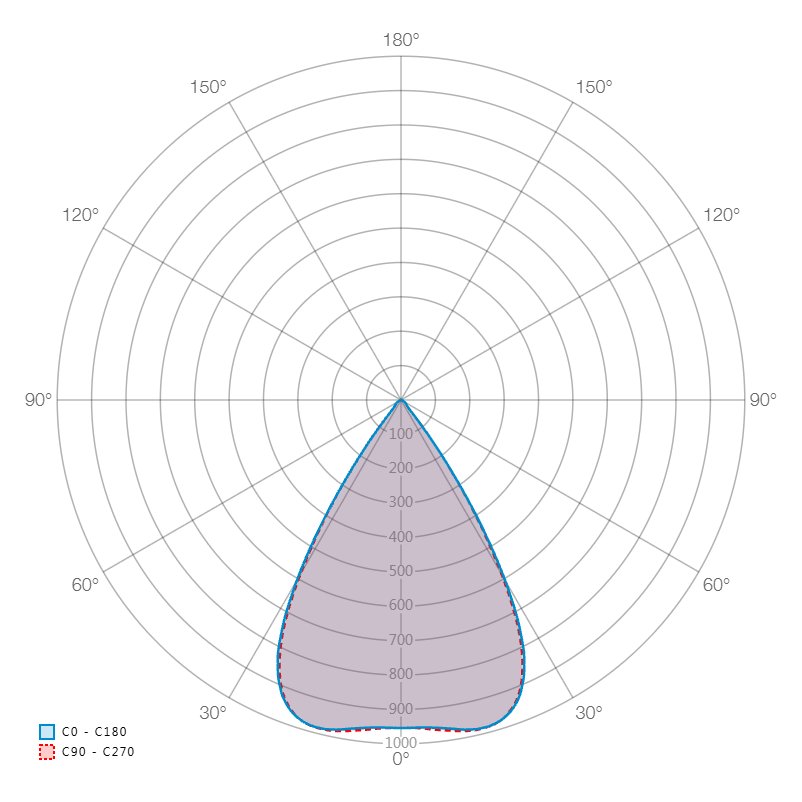

| Distribution lumineuse | DI |
| MacAdam | SDCM 3 |
| L80B10 @25°C | 100.000 h |
| L90B10 @25°C | 64.000 h |
| Temperature de couleur | 3000K |
| Temperatu re de couleur / CRI | 830 |
| Niveau de protection (IP) | IP20 |
| Résistance à l'impact | IK04 |
| Classe de protection | I |
| CE | Oui |
| HACCP+ | Oui |
| L | W | H |
|---|---|---|
| 85 mm | 85 mm | 54 mm |
